CV8

Overview

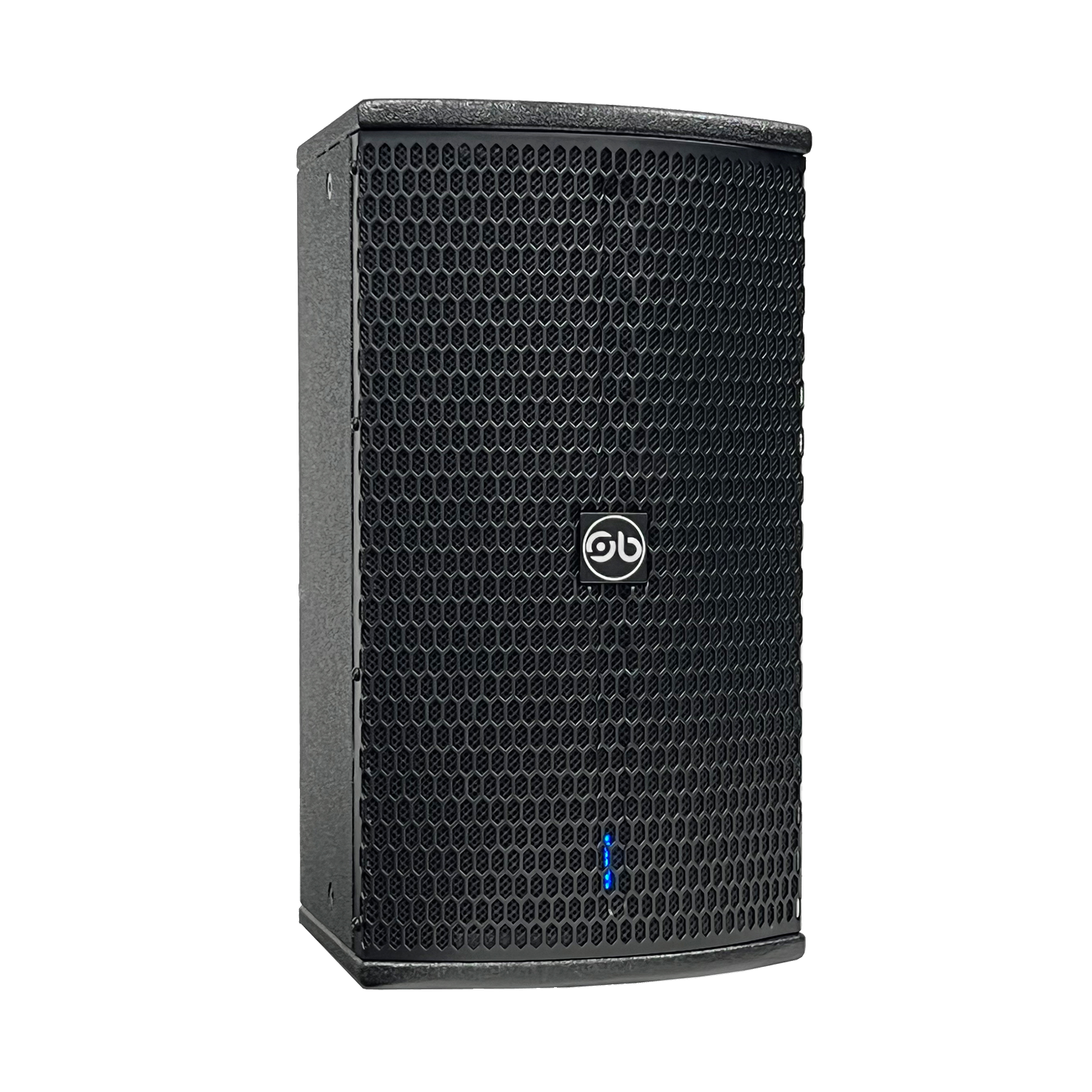

The Sound Barrier CV8 is a compact active two-way loudspeaker engineered for professional sound reinforcement in portable and installed applications. Designed for mobile DJs, live performers, houses of worship, corporate events, educational facilities, and commercial venues, it combines substantial output, flexible DSP control, and a rugged plywood enclosure in a highly portable 8-inch format.

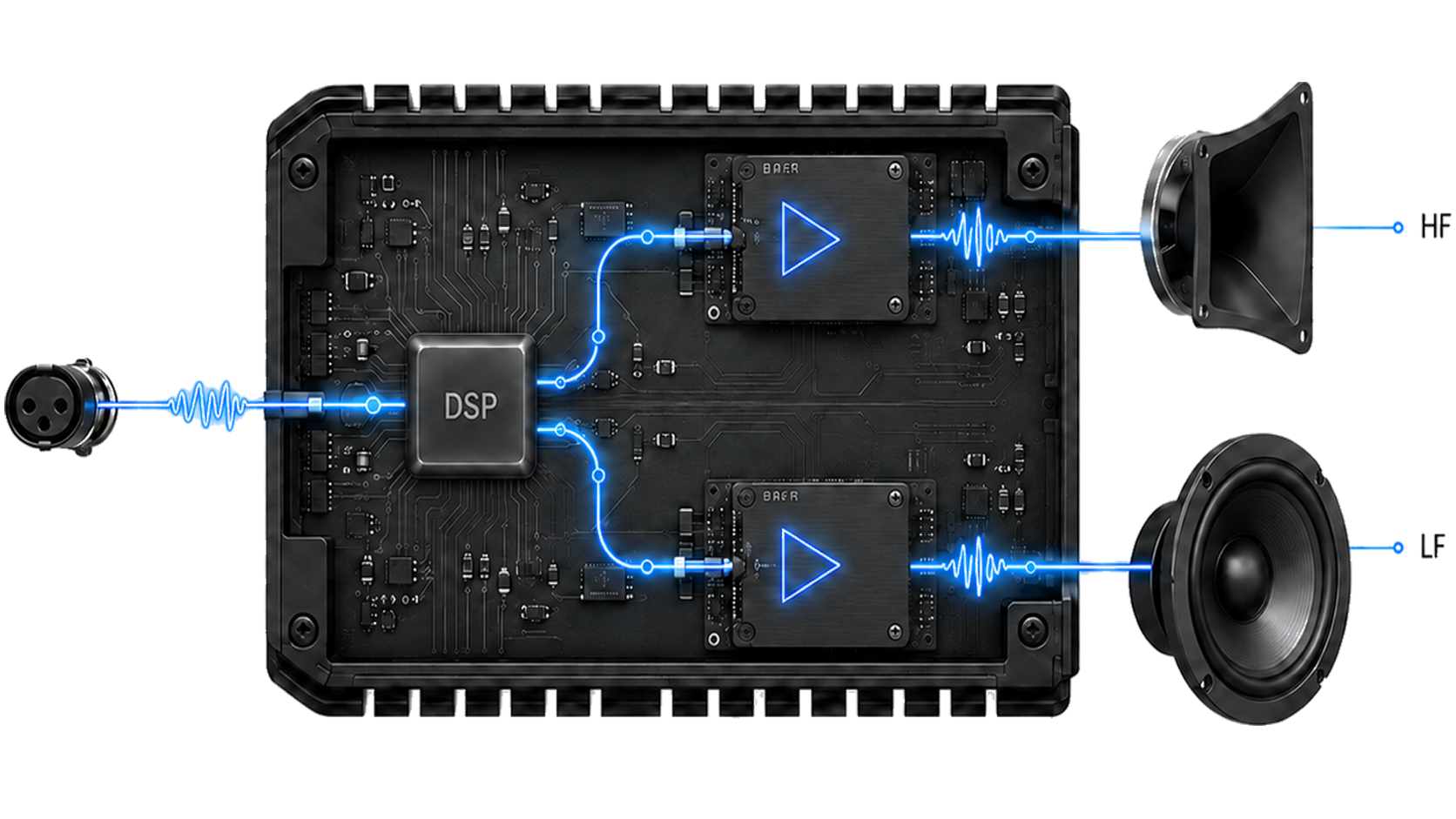

A 700W RMS Class-D bi-amplified power system drives the low- and high-frequency sections independently, with 350W RMS dedicated to the woofer and 350W RMS powering the compression driver. This efficient amplifier configuration delivers clear, controlled reproduction with the headroom required for speech, live music, recorded playback, and general-purpose sound reinforcement. Despite its compact dimensions, the CV8 reaches a maximum SPL of 124dB, making it equally capable as a primary loudspeaker in smaller systems or as a fill loudspeaker in larger installations.

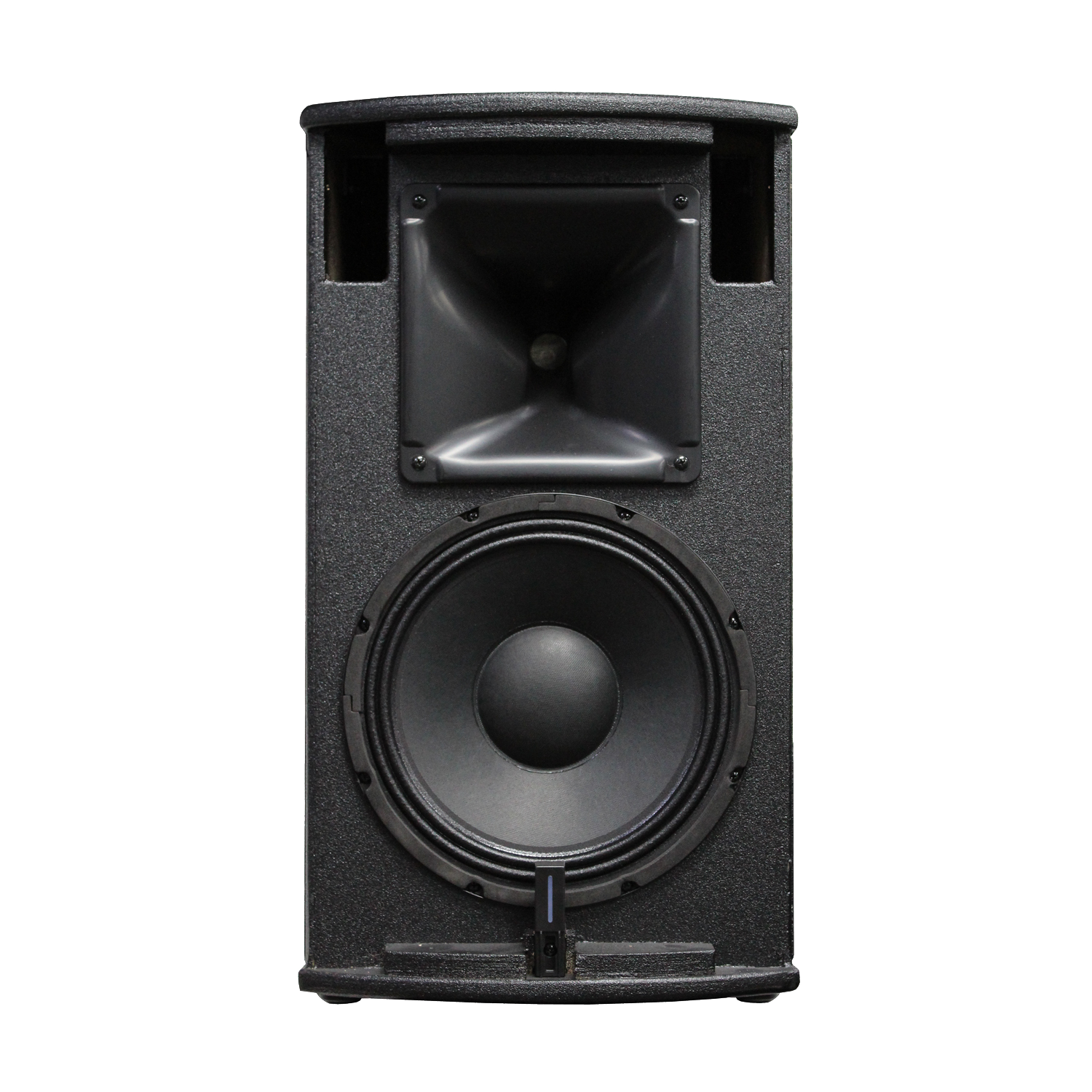

The system combines an 8-inch woofer with a 1.5-inch voice coil and a 1-inch-exit compression driver. Together, they provide balanced reproduction across a frequency response of 70Hz–20kHz. A 90° horizontal × 60° vertical coverage pattern distributes sound evenly throughout the listening area while helping installers and system operators direct energy where it is needed.

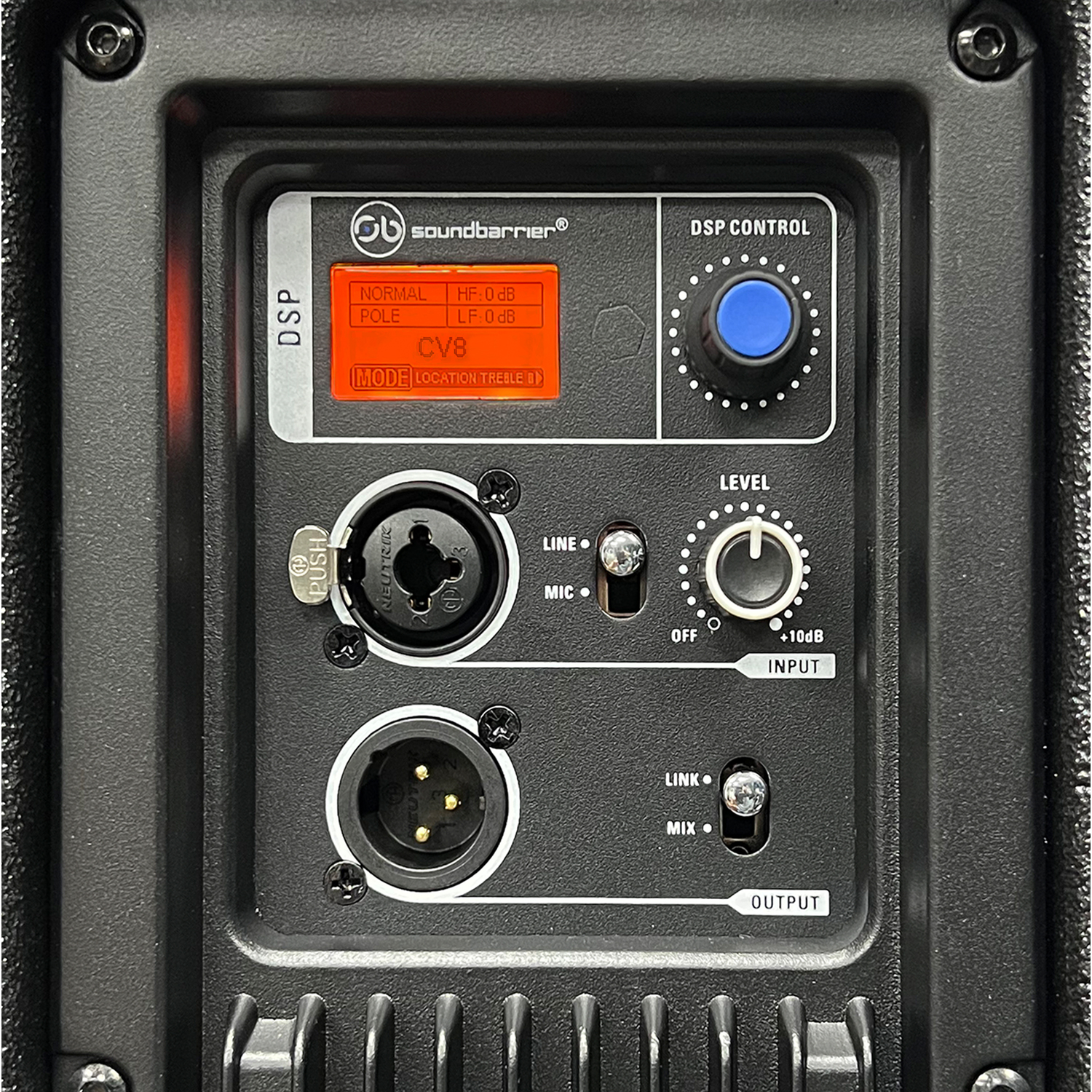

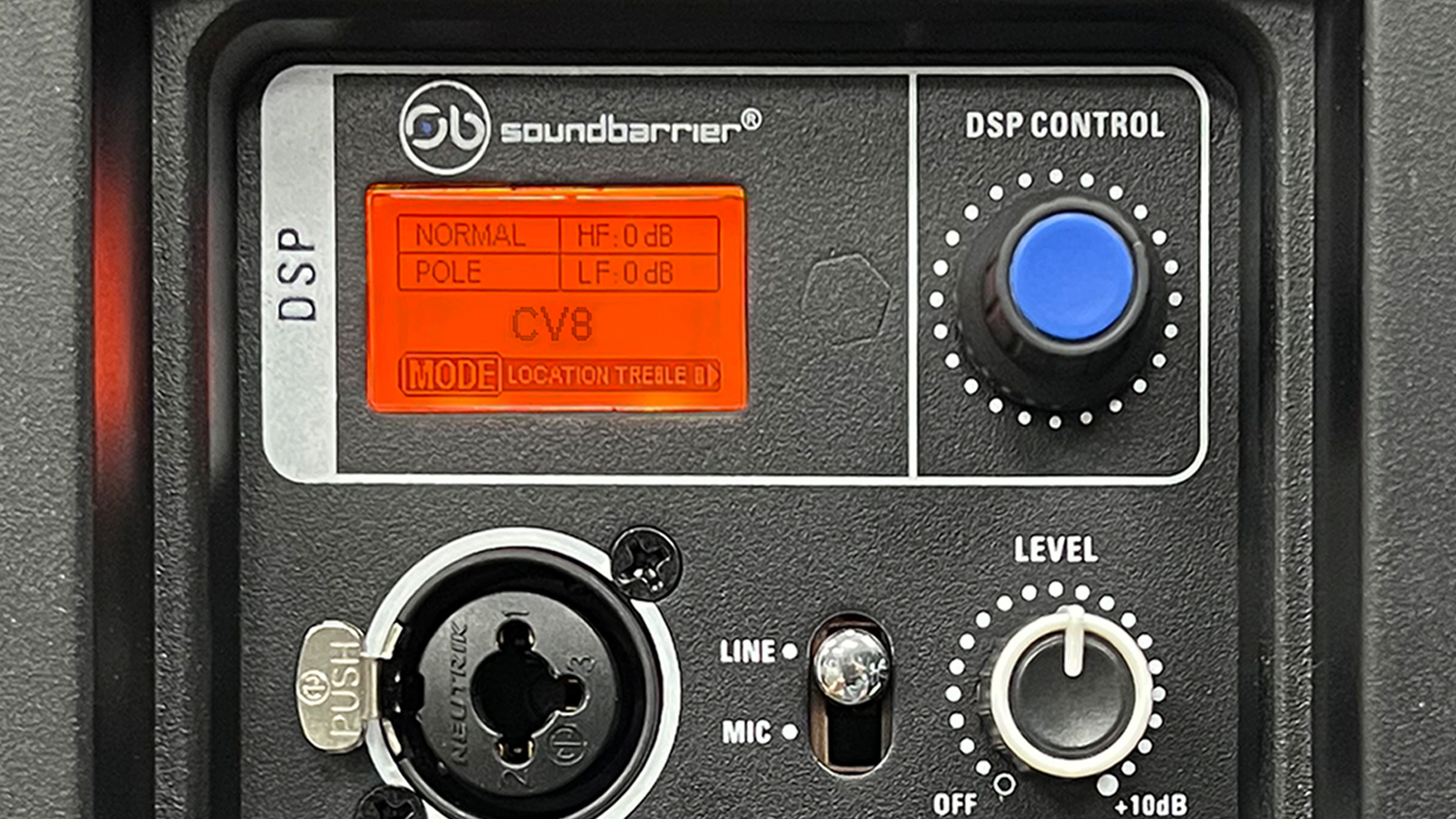

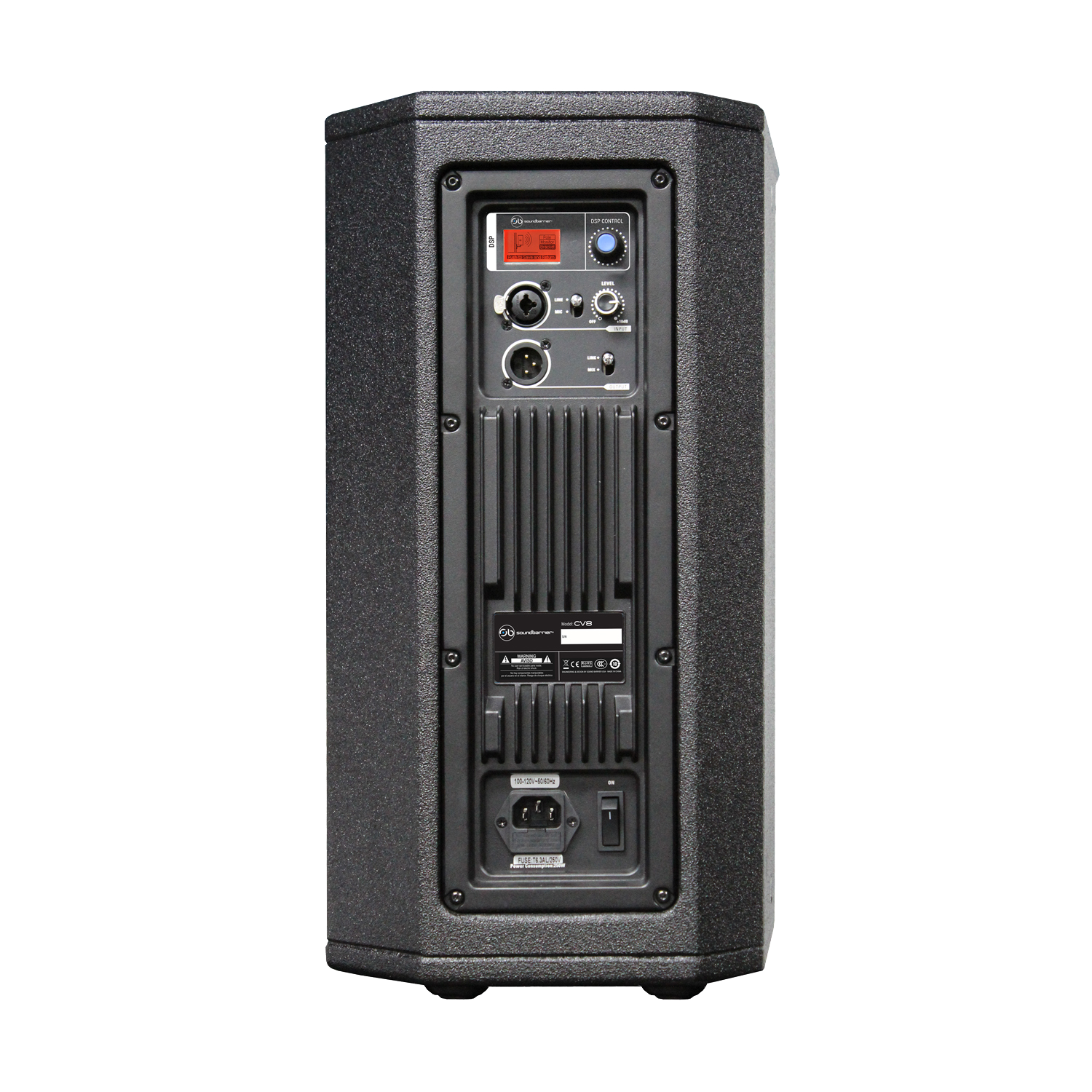

Integrated DSP provides convenient control through an LCD display and rotary push encoder. Selectable operating presets optimize the CV8 for normal playback, live performance, club music, or speech applications. Adjustable bass and treble controls allow further tonal refinement, while selectable 80Hz, 100Hz, 120Hz, and 150Hz high-pass filters make it easier to integrate the loudspeaker with a separate low-frequency system. Digital limiting helps protect the amplifier and transducers during demanding operation, and configurable front LED settings provide clear visual system-status indication.

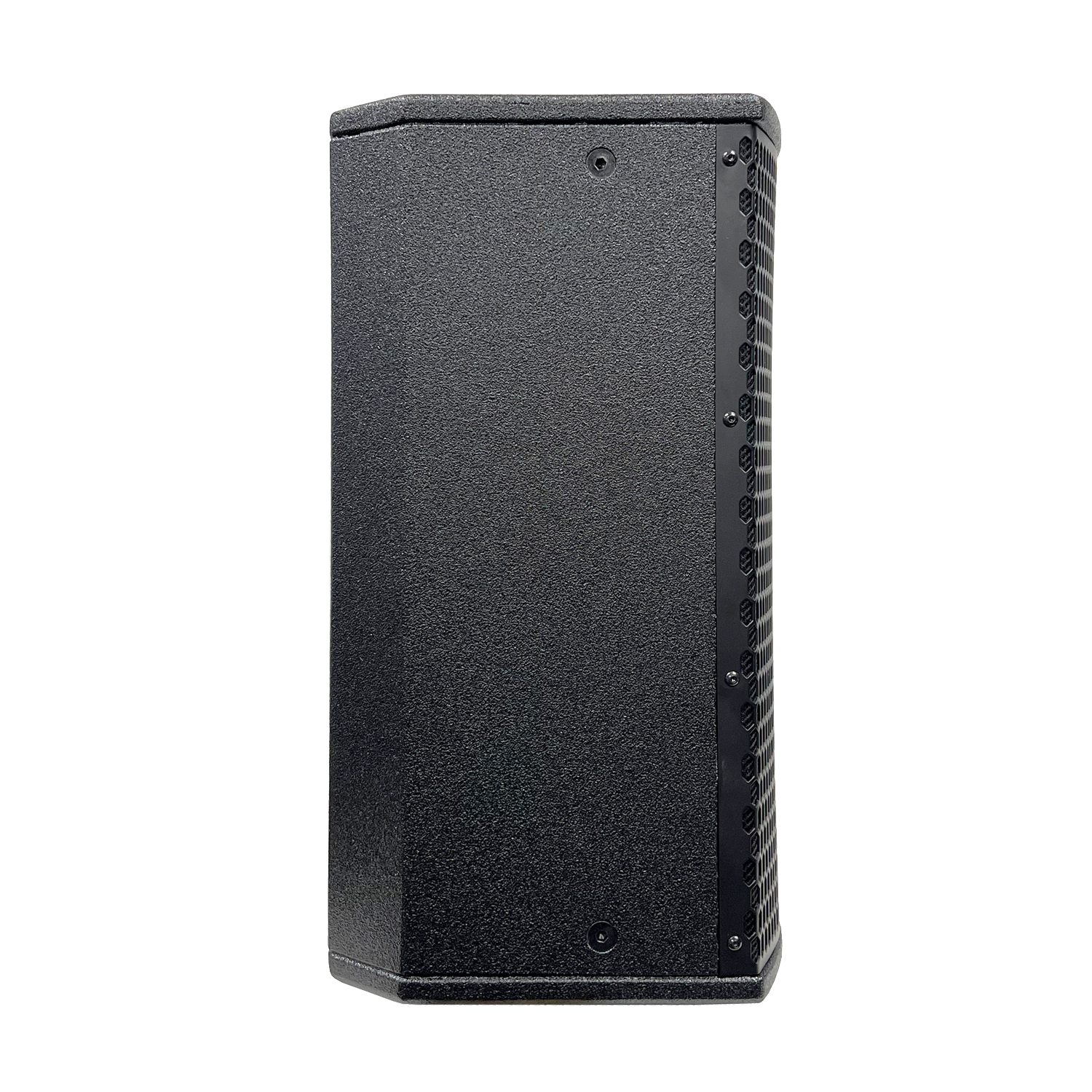

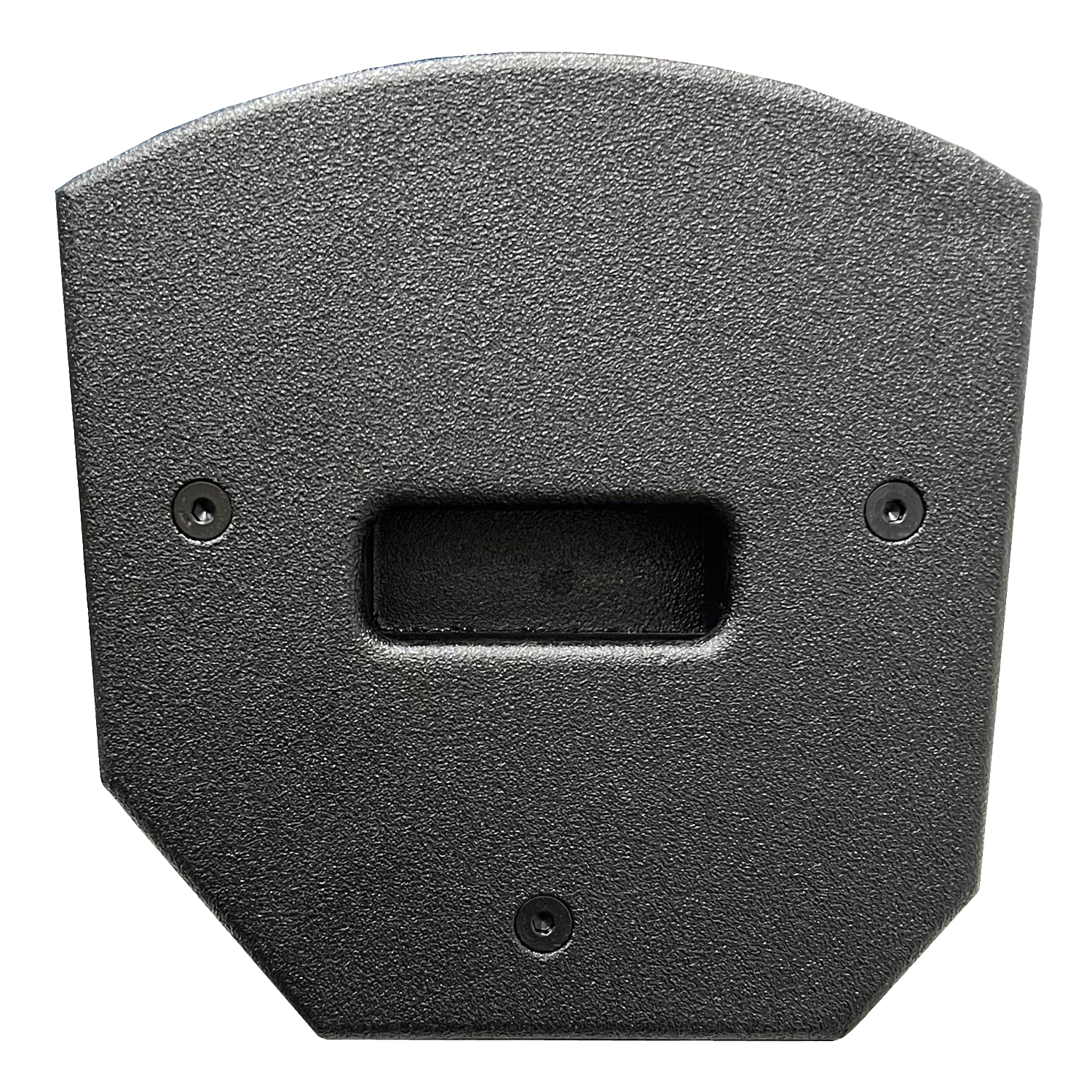

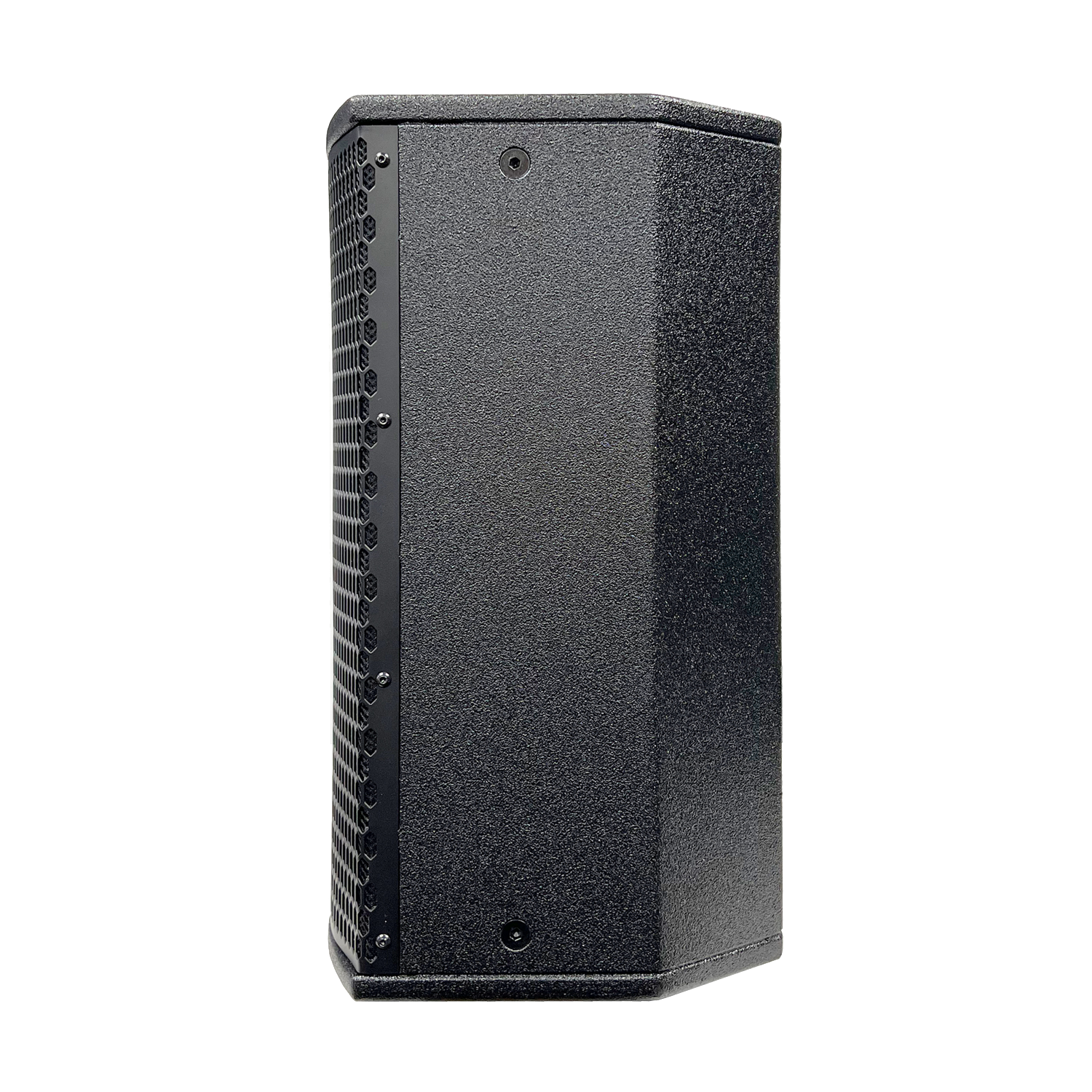

The CV8 is housed in a rugged 15mm plywood cabinet finished with a durable black polyurea coating. A 1.2mm steel grille protects the transducers, while the recessed top handle makes the enclosure easy to transport and position. Its multi-angle cabinet supports upright front-of-house operation and stage-monitor use, providing the flexibility required for changing venues and applications.

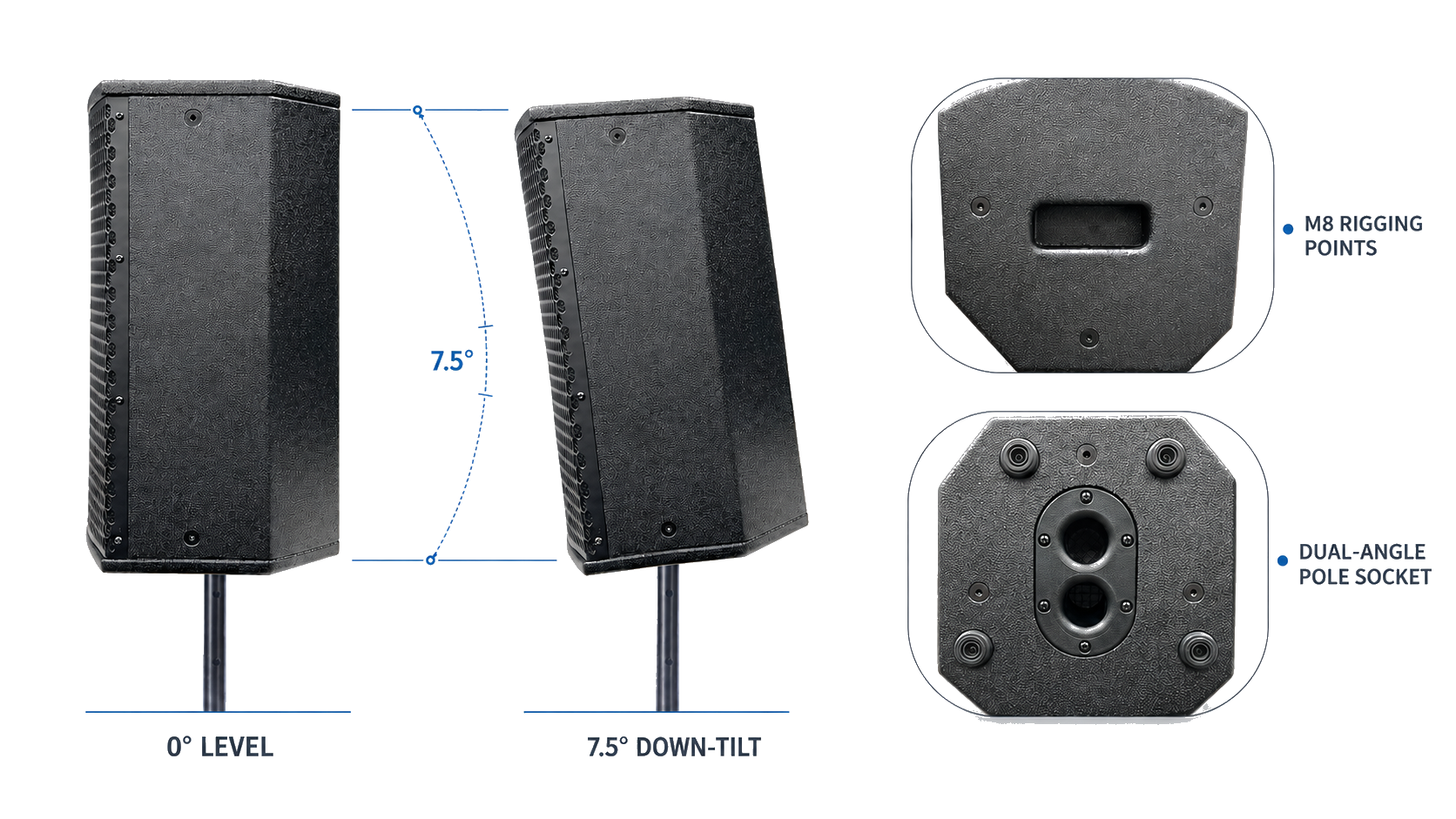

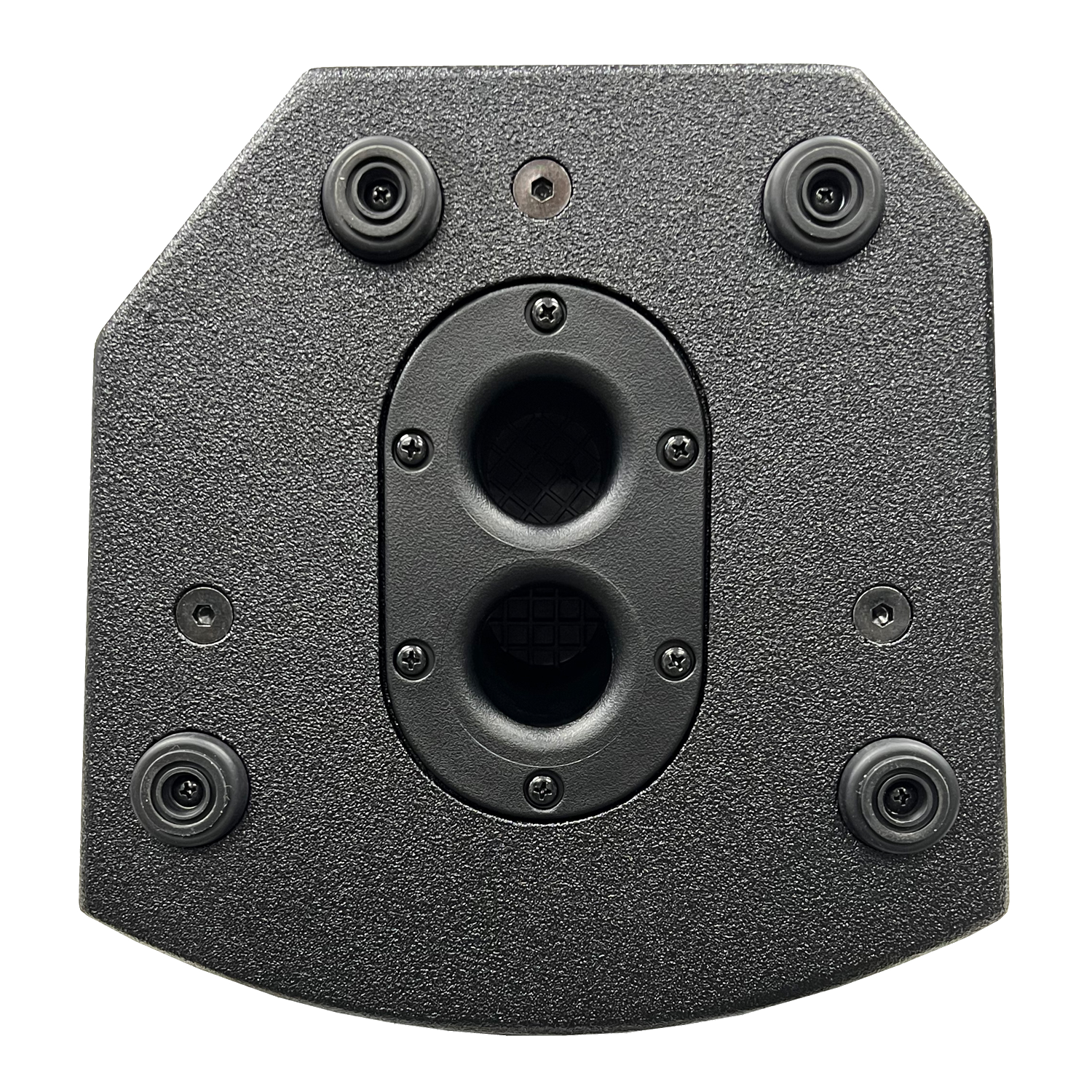

For elevated deployment, the integrated dual-position 35mm pole socket allows the cabinet to be positioned level or aimed downward at 7.5° for improved audience coverage. Twelve integrated M8 rigging points support professionally engineered suspended installations. Compact, powerful, and installation-ready, the CV8 delivers the versatility required for both mobile productions and permanent sound systems.

KEY FEATURES

• 700W RMS / 1400W PEAK Class-D Bi-amp
• 8-inch Woofer with 1.5-inch VC
• 1-inch Compression Driver with 1.35-inch VC
• 124dB MAX SPL
• Integrated DSP with Application Presets
• Adjustable HPF, Bass, and Treble Controls
• Dual-angle 35mm pole with 7.5°Tilt
• M8 Rigging Points

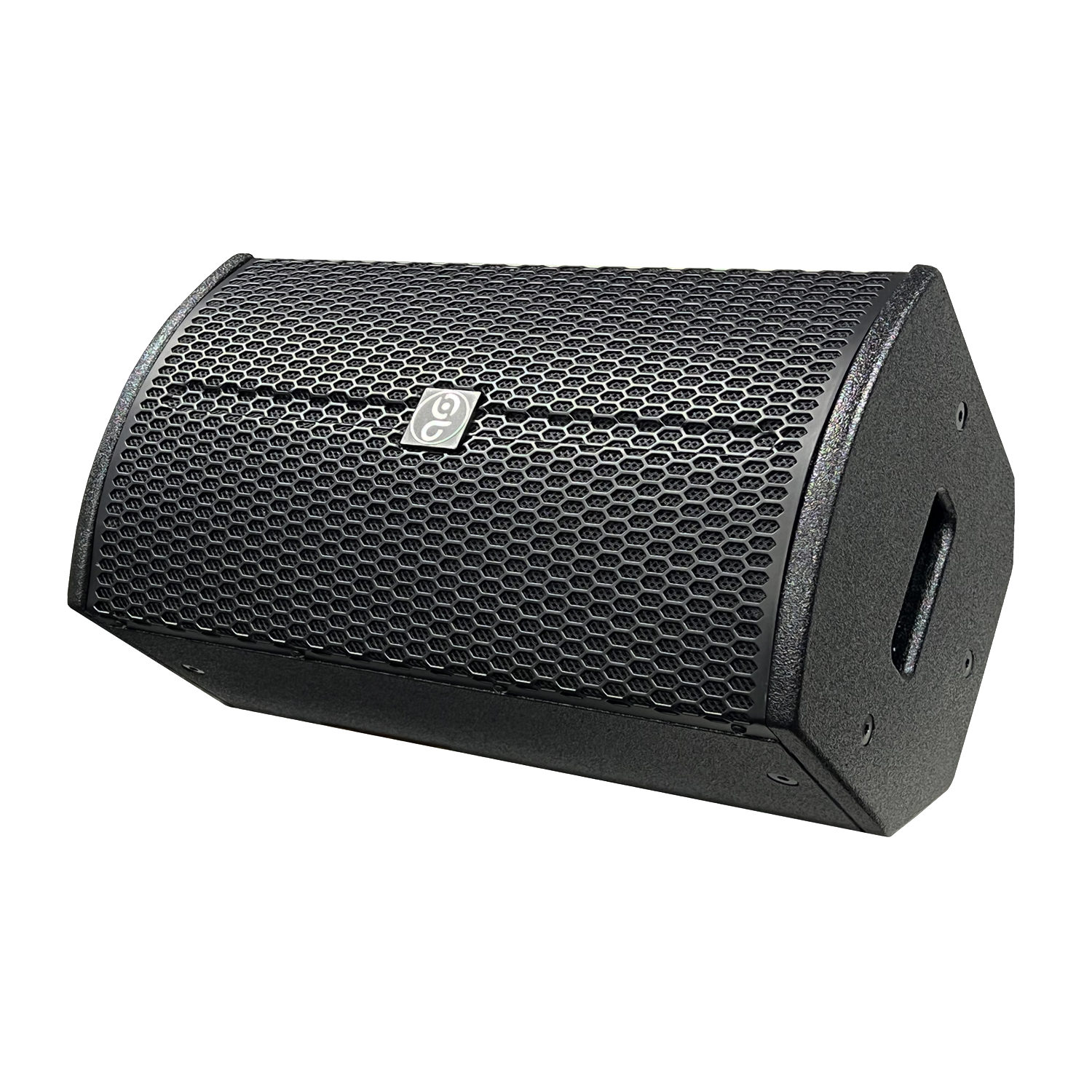

• Stage-Monitor Profile
