Power Amplifiers
DA20.4
4-Channel Class-D Power Amplifier, 5000W per Channel @ 4Ω
- 4 × 5000W at 4Ω
- Stable 2Ω Operation
- Up to 2 × 13,000W in Bridged Mode
- Stereo, Mono, and Bridge Operating Modes
- Selectable 41dB, 38dB, 35dB, and 32dB gain
- Universal Switch-Mode Power Supply
- Temperature-controlled Cooling
- Comprehensive Protection Circuitry
Overview
The Sound Barrier DA20.4 is a high-power four-channel Class-D amplifier designed for professional systems requiring extreme output and flexible multichannel configuration. Delivering 4 x 5000W at 4Ω, it is ideal for powering subwoofers, full-range loudspeakers, and complex speaker systems in touring productions, nightclubs, festivals, live venues, and large-scale installations.
Its compact 1U design supports stereo, mono, and bridge operation, selectable gain settings, and loads as low as 2Ω. A universal switch-mode power supply with active Power Factor Correction provides efficient and stable performance across varying AC power conditions.
Front-to-rear temperature-controlled cooling and comprehensive protection against over-temperature, DC, short circuit, overload, and undervoltage help ensure dependable performance in demanding professional applications..
KEY FEATURES
- 4 × 5000W at 4Ω
- Stable 2Ω Operation
- Up to 2 × 13,000W in Bridged Mode
- Stereo, Mono, and Bridge Operating Modes
- Selectable 41dB, 38dB, 35dB, and 32dB gain
- Universal Switch-Mode Power Supply
- Temperature-controlled Cooling
- Comprehensive Protection Circuitry
Universal Power with Active PFC
The DA Series features a universal switch-mode power supply designed to operate from 100–240 VAC ±10%, 50/60Hz, allowing reliable use across a wide range of global power systems. Active Power Factor Correction (PFC) optimizes current draw, improves power efficiency, and helps maintain consistent amplifier performance under demanding operating conditions.
3 Year Warranty
Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.
Specifications
Output Power
- 2Ω Stereo:
- 4 x 6500W
- 4Ω Stereo:
- 4 x 5000W
- 8Ω Stereo:
- 4 x 3000W
- 4Ω Bridge:
- 2 x 13000W
- 8Ω Bridge:
- 2 x 10000W
- 16Ω Bridge:
- 2 x 6000W
Amplifier Specifications
- Output Channels:
- 4
- Topology:
- Class D
- Efficiency:
- Greater than 80%—up to 90% under laboratory conditions
- Operating Modes:
- Stereo / Mono / Bridge
- Minimum Load:
- Stereo / Mono: 2Ω
- Minimum Load:
- Bridge: 4Ω
- Frequency Response:
- 20Hz–20kHz, +0 / -0.5dB
- THD+N:
- Typical 0.01%
- Damping Factor:
- Typical 5000 at 8Ω, 20Hz–200Hz
- Crosstalk:
- ≥90dB
- Input Impedance:
- 20kΩ balanced / 10kΩ unbalanced
- Input Sensitivity:
- 1.65V / 2.33V / 3.30V / 4.66V RMS selectable
- Selectable Gain:
- 41dB / 38dB / 35dB / 32dB

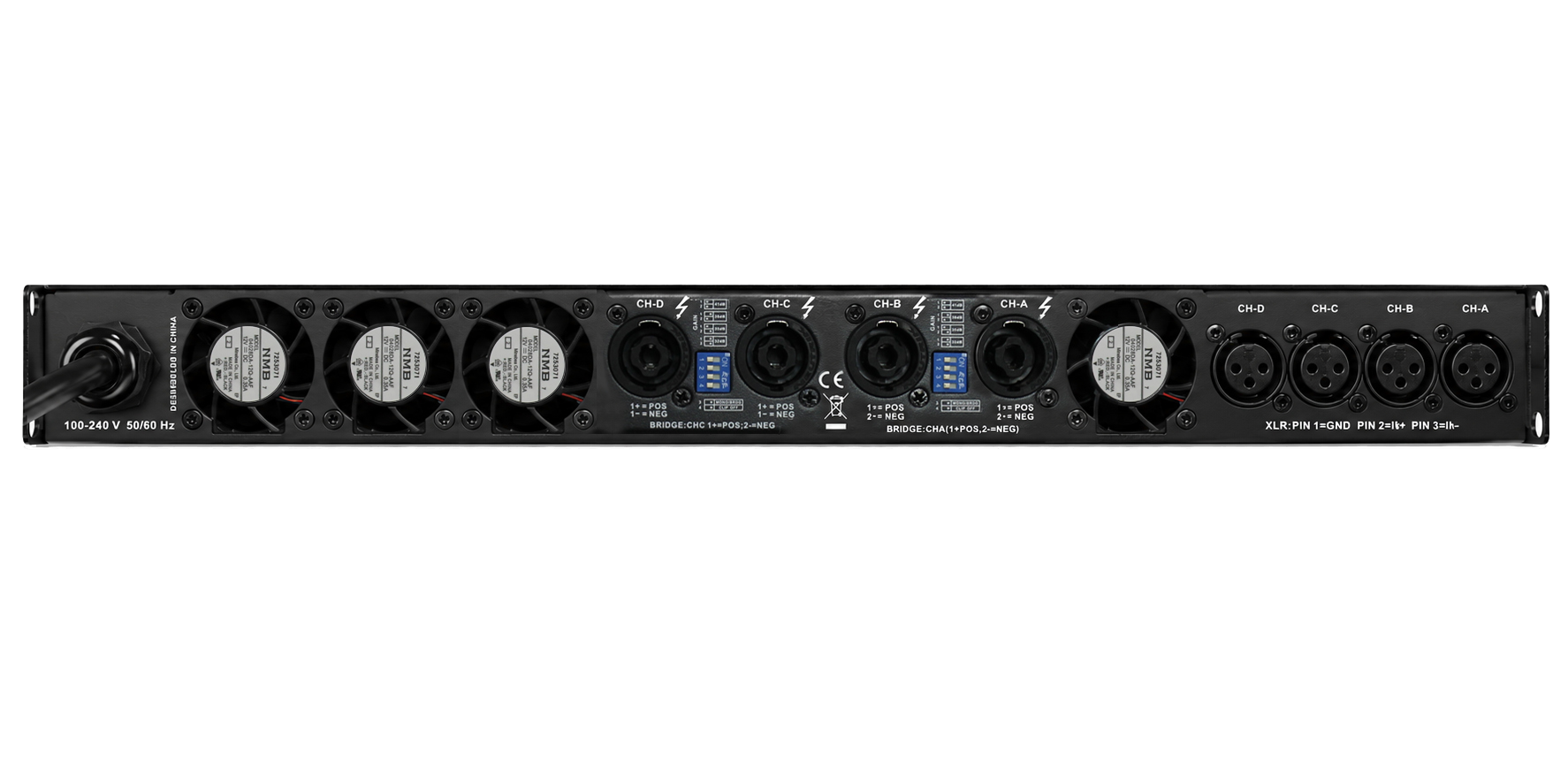

Input / Output Section
- Input Connectors:
- 4 x balanced XLR inputs
- Output Connectors:
- 4 x Neutrik® speakON® NL4
Power Requirements
- Nominal AC Input:
- 100–240 VAC ±10%, 50/60Hz
- Power Supply:
- Universal switch-mode power supply with active PFC
- Standby Power:
- 160W
Cooling & Protection
- Cooling:
- Front-to-rear airflow with temperature-controlled fans
- Protection Circuits:
- Undervoltage, DC, over-temperature, overload, and short circuit
Construction
- Rack Space:
- 1U
- Dimensions (W x H x D):
- Dimensions (W x H x D): 19.02 x 1.77 x 18.31 inches (483 x 45 x 465mm)
- Net Weight:
- 28.7lb (13kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration
