ECL118S

18-Inch Active Vented Subwoofer with Class-D Amplification and Selectable Crossover

18" LF Driver with 3" VC
2400W peak / 600W RMS
Class D amplification
Selectable Crossover
Dual XLR/TRS Inputs and XLR Line Outputs
0° / 180° Polarity Switch
M20 Threaded Pole-Mount Socket
Caster Wheel Ready

Where to Buy

Overview

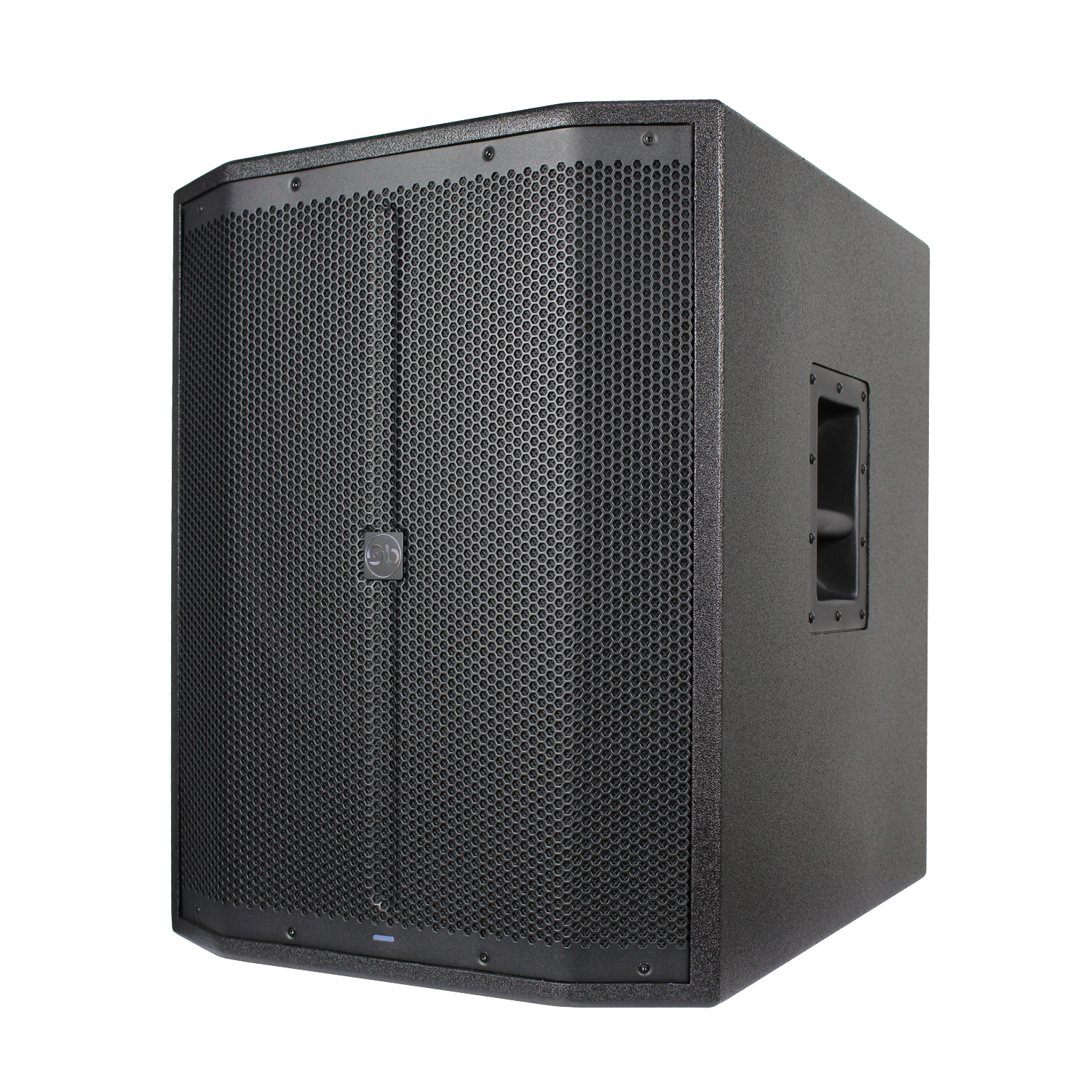

The Sound Barrier ECL118S is an active vented subwoofer designed to extend the low-frequency performance of ECL Series loudspeakers and other compatible PA systems. Suitable for mobile DJs, live performers, houses of worship, entertainment venues, and installed sound applications, it features an 18-inch woofer with a 3-inch voice coil, a frequency range of 35Hz–150Hz, and a maximum SPL of 125dB.

Its built-in Class-D amplifier delivers 600W RMS and 2400W peak output, supported by a switch-mode power supply. Two balanced XLR/TRS combination inputs accommodate mono or stereo line-level sources, while two XLR outputs connect to powered full-range loudspeakers or external amplifiers. Select CROSSOVER mode to send a high-pass-filtered signal to the satellite loudspeakers, or LINK mode to pass the incoming signal through without output filtering. A selectable crossover, 0°/180° polarity switch, and dedicated subwoofer level control help integrate the ECL118S with the rest of the sound system.

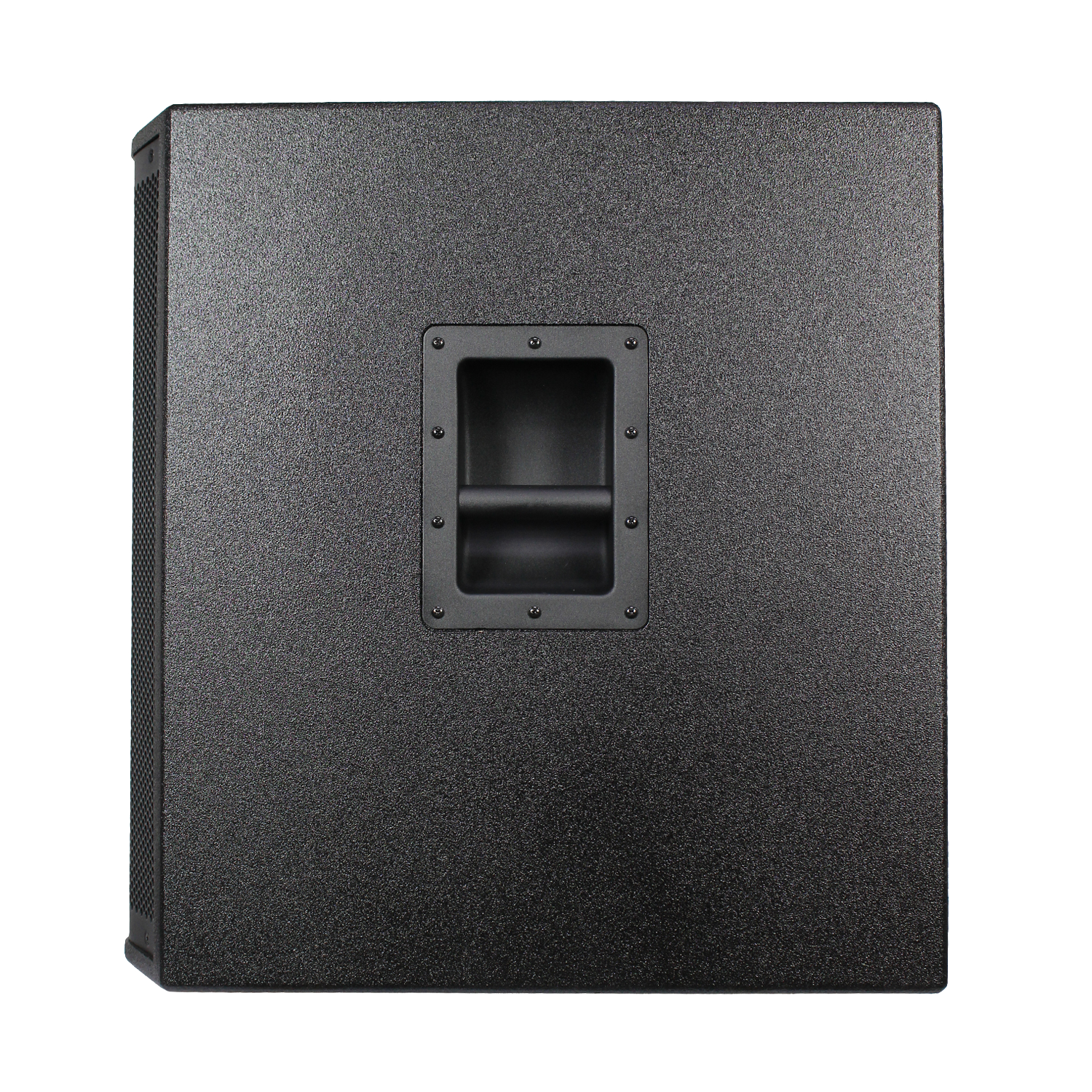

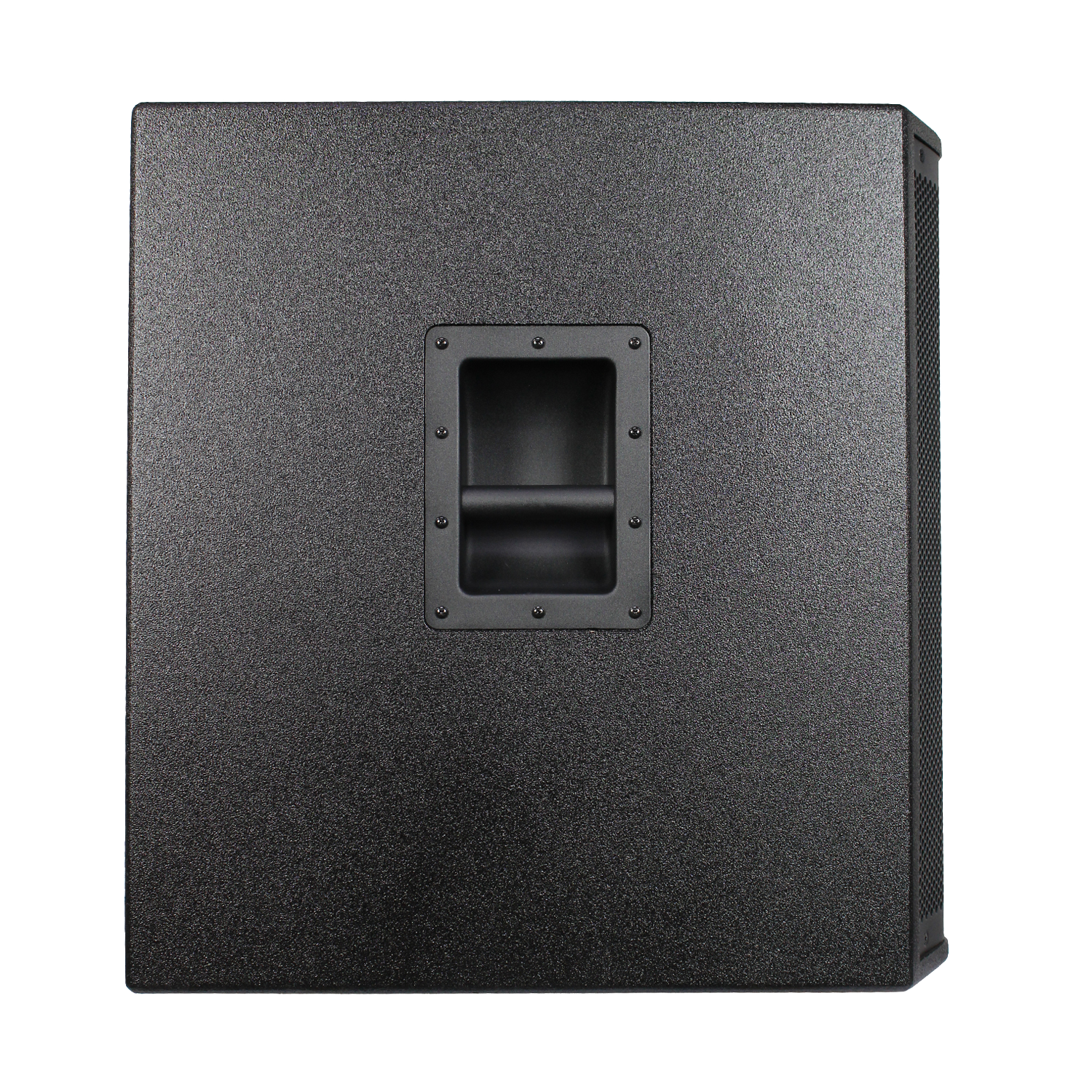

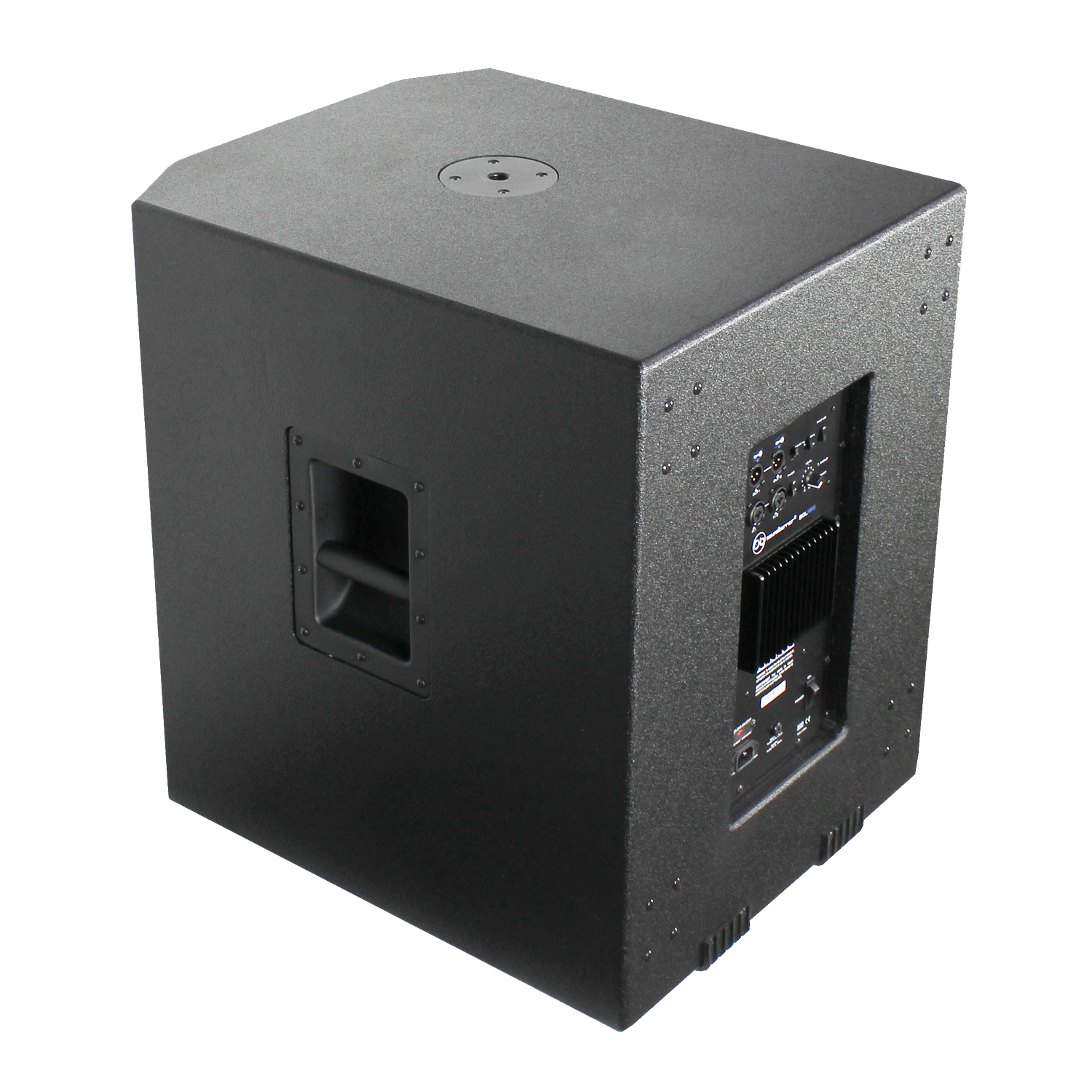

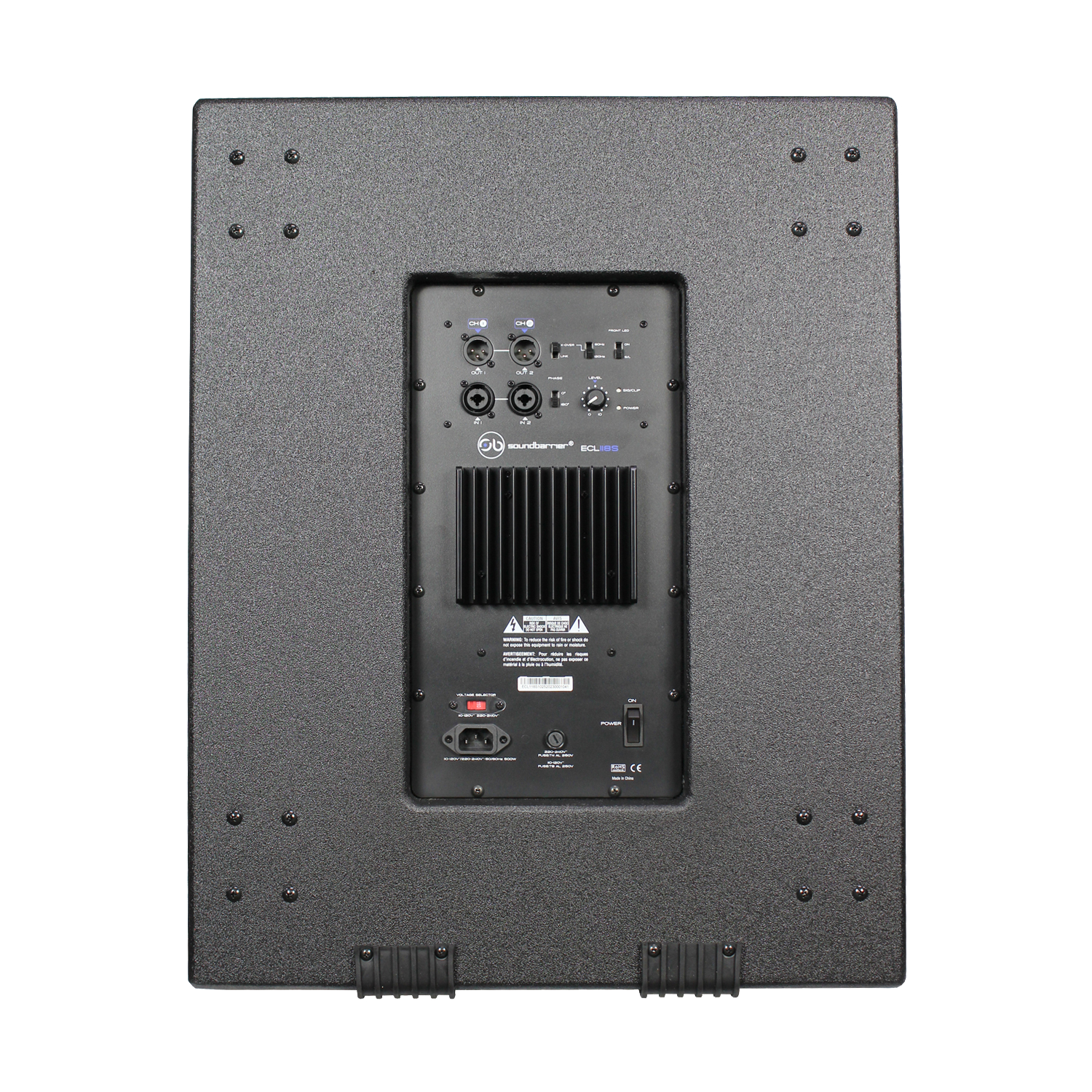

Side carrying handles and an included caster kit help with transport and positioning. A top-mounted M20 Threaded Pole-Mount Socket accommodates compatible satellite speaker setups, allowing the ECL118S to serve as the low-frequency foundation of a portable PA system. Rear-panel power and signal/clip indicators provide clear operating feedback during setup and use.

KEY FEATURES

18" LF Driver with 3" VC
2400W peak / 600W RMS
Class D amplification
Selectable Crossover
Dual XLR/TRS Inputs and XLR Line Outputs
0° / 180° Polarity Switch
M20 Threaded Pole-Mount Socket
Caster Wheel Ready

APPLICATION

Live Performance & EventsPortable PA / Mobile DJsInstallation & CommercialHouses of WorshipCorporate / AV Presentations

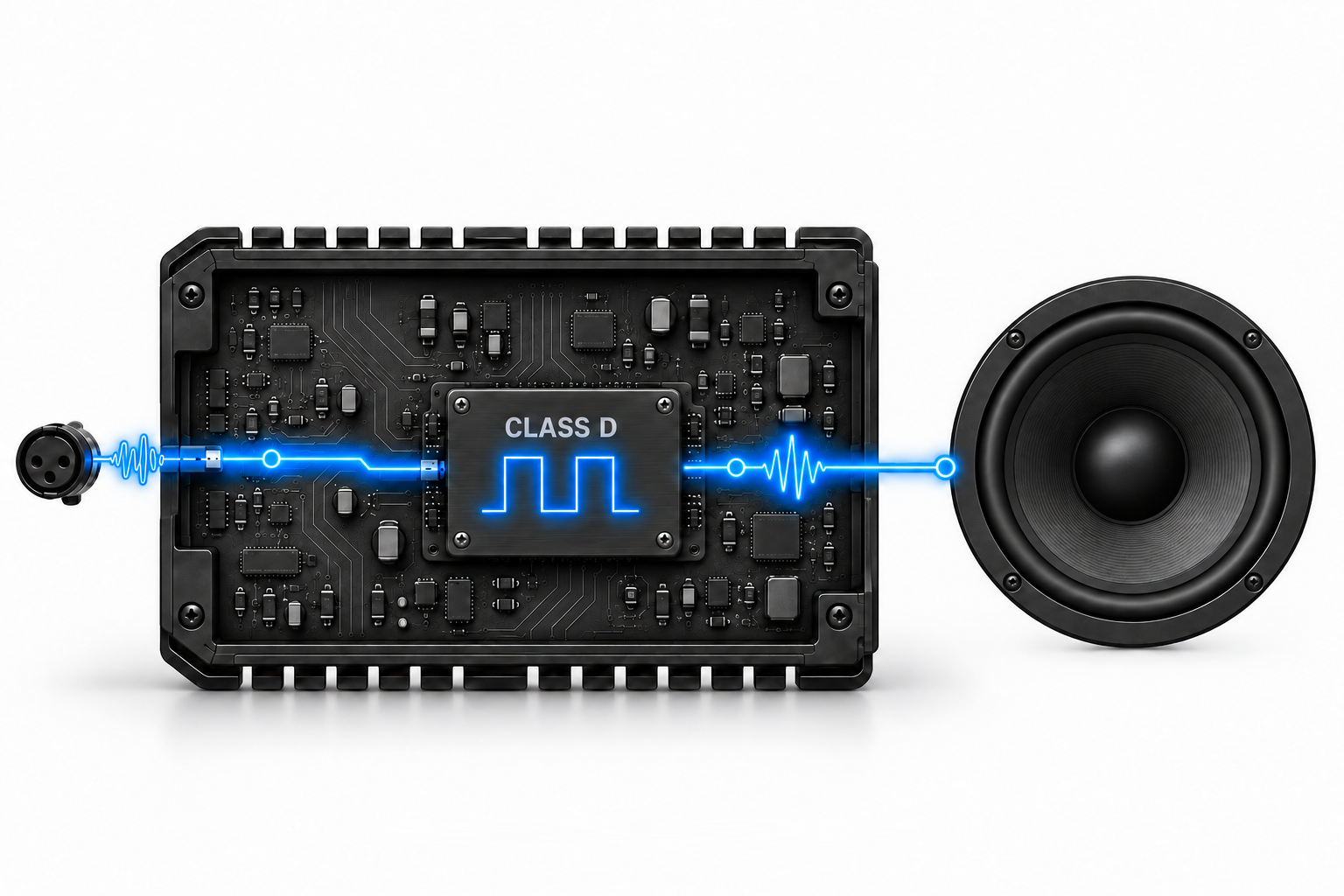

Class-D Subwoofer Power

The ECL118S uses a dedicated Class-D amplifier to deliver 600W RMS and 2400W peak output to its 18-inch low-frequency driver. A switch-mode power supply supports efficient power conversion, while the integrated amplifier allows direct connection to a line-level audio source without an external subwoofer amplifier.

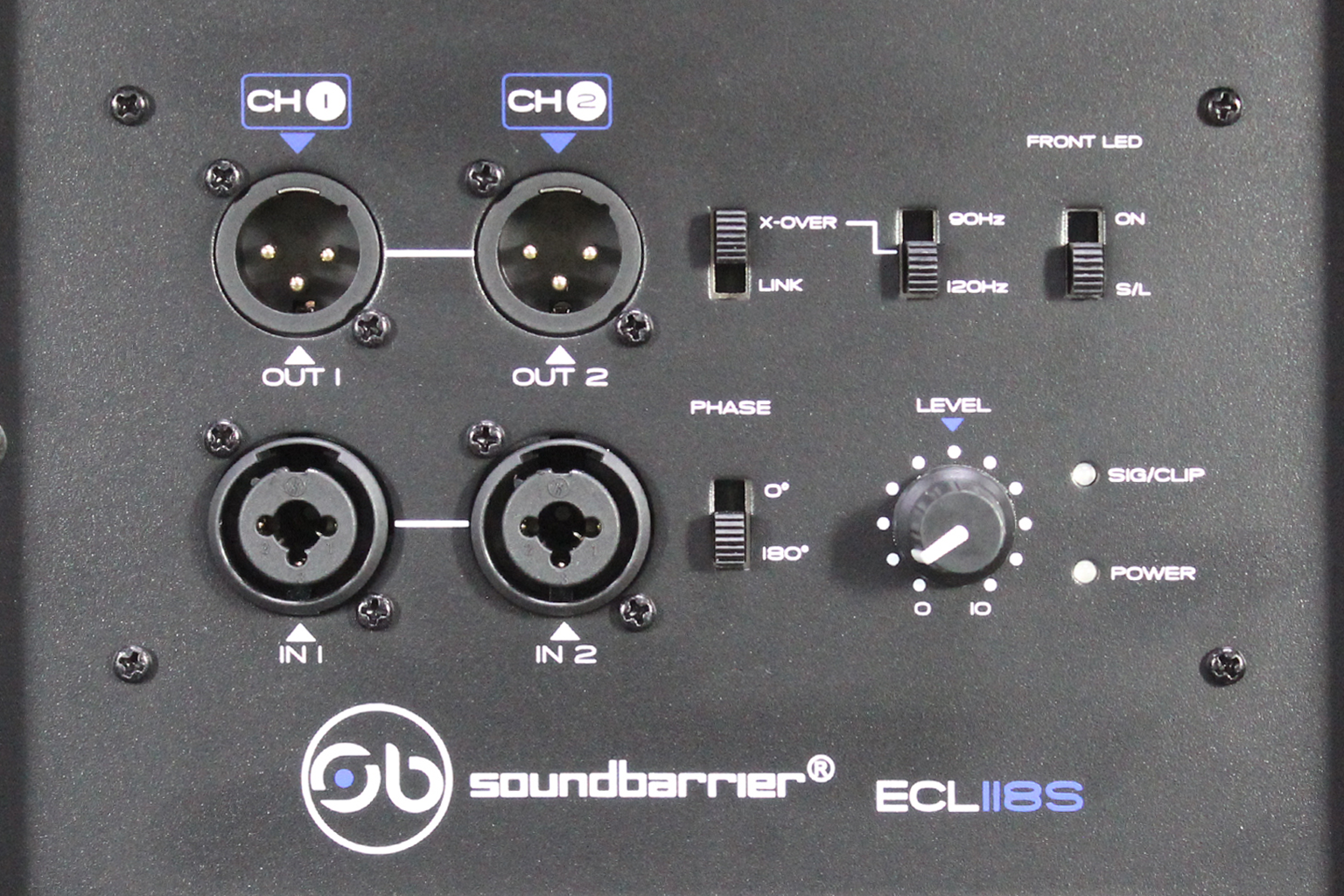

Flexible Connections & System Control

Two balanced XLR outputs make it easy to connect powered full-range loudspeakers or external amplifiers. CROSSOVER mode provides a high-pass-filtered signal for satellite loudspeakers, while LINK mode passes the incoming signal through without output filtering. The crossover selector helps match the subwoofer to your system, while the 0°/180° polarity switch helps improve bass integration with full-range loudspeakers. A dedicated level control lets you balance the subwoofer output with the rest of your setup.

3 YEAR WARRANTY

Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.

Specifications

Acoustic Specifications

System Type:: Active vented subwoofer

Frequency Range:: 35Hz–150Hz

Max SPL:: 125dB

Transducers

Low-Frequency Driver:: 1 × 18" Woofer with 2.5" VC

Internal Driver Impedance:: 8Ω

Power Section

Total Amplifier Output:: 600W RMS / 2400W peak

Amplifier Type:: Class D

Power Supply:: Switch-mode power supply

Cooling:: Internal Convection

Input / Output Section

LINE Input Channels:: 2

Input Connectors:: 2 × balanced XLR / 1/4-inch TRS combination jacks

Input Signal:: Mono or stereo line-level audio

Output Connectors:: 2 × balanced XLR line outputs

Output Modes:: CROSSOVER: high-pass-filtered outputs LINK: unfiltered signal pass-through

Processor & Controls

Crossover Selector:: 90Hz / 120Hz

Crossover / Link Selection:: Rear-panel CROSSOVER / LINK switch

Satellite Output Filter:: High-pass filtering in CROSSOVER mode

Polarity Selection:: 0° / 180° switch

Level Control:: Dedicated subwoofer level control

Status Indicators:: Power and signal/clip LEDs

Front LED Mode:: Selectable constant illumination (ON) or signal/limiter indication (S/L)

Power Requirements

Operational Voltage:: 100–120 VAC, 60Hz / 220–240 VAC, 50Hz Switchable

Power Connection:: IEC power inlet

Power Controls:: On/off switch, voltage selector, and replaceable AC fuse

Construction

Cabinet Material:: Plywood

Color:: Black painted finish

Grille:: Steel with Anti-Corrosion Coating & Acoustic Cloth Backing

Enclosure Design:: Vented subwoofer cabinet

Satellite Pole Socket:: M20 Threaded Pole-Mount Socket

Handles:: Two side carrying handles

Feet:: Nonslip rubber feet

Dimensions

Dimensions (W × H × D):: 20.5 × 26 × 24.5 in (520.7 × 660.4 × 622.3mm)

Weight:: 95 lb (43kg)

Warranty

3-Year Warranty:: 3-Year Warranty with Product Registration
