Loudspeakers
iLX10D
10-Inch Active Two-Way Loudspeaker with sBT withTWS, and DSP
- 10" LF driver with 2" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1000W peak / 250W RMS
- sBT with TWS Pairing
- Integrated DSP with Application Presets
- powerCON-type AC input and output
- 35mm Pole mount
- Stage Monitor Profile
Overview

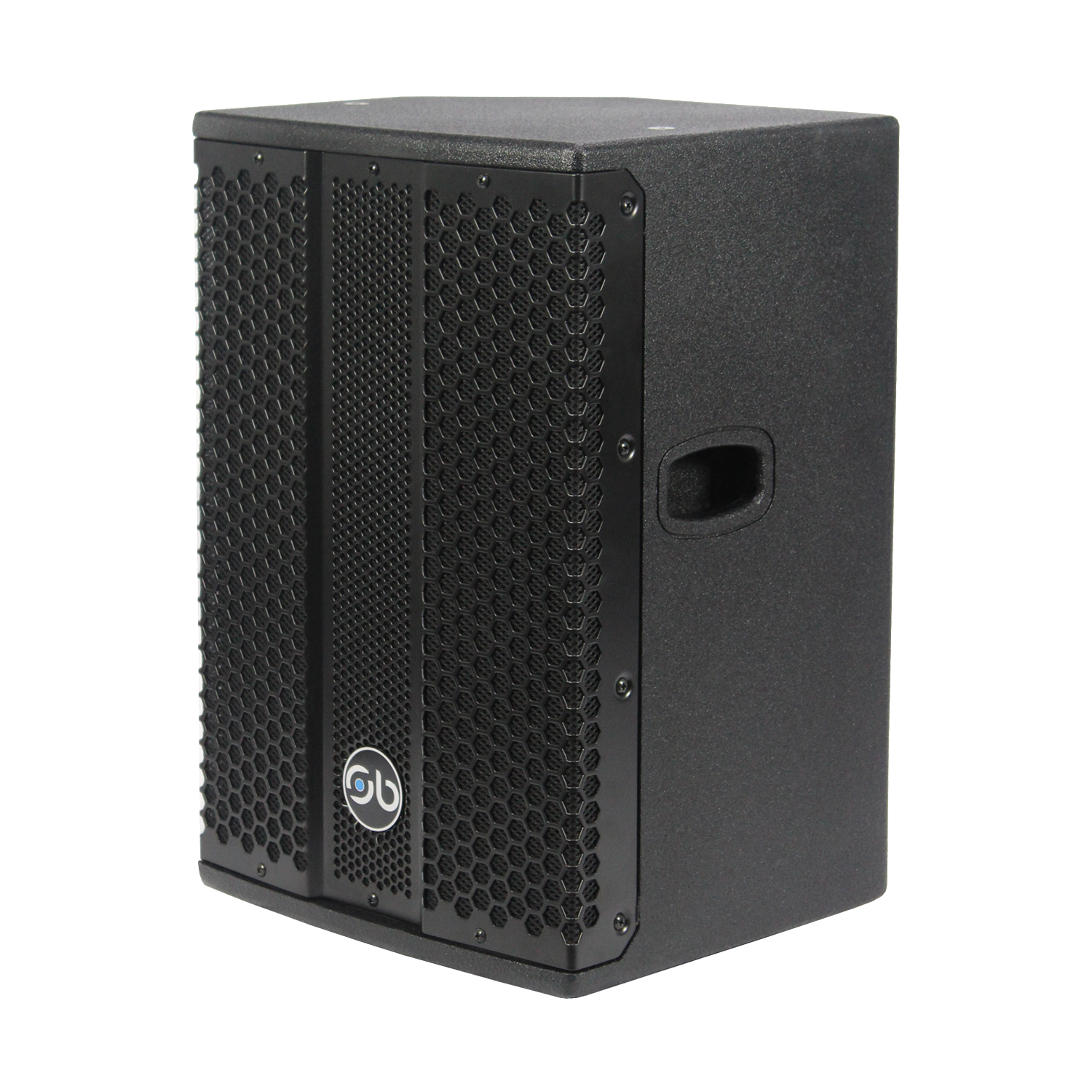

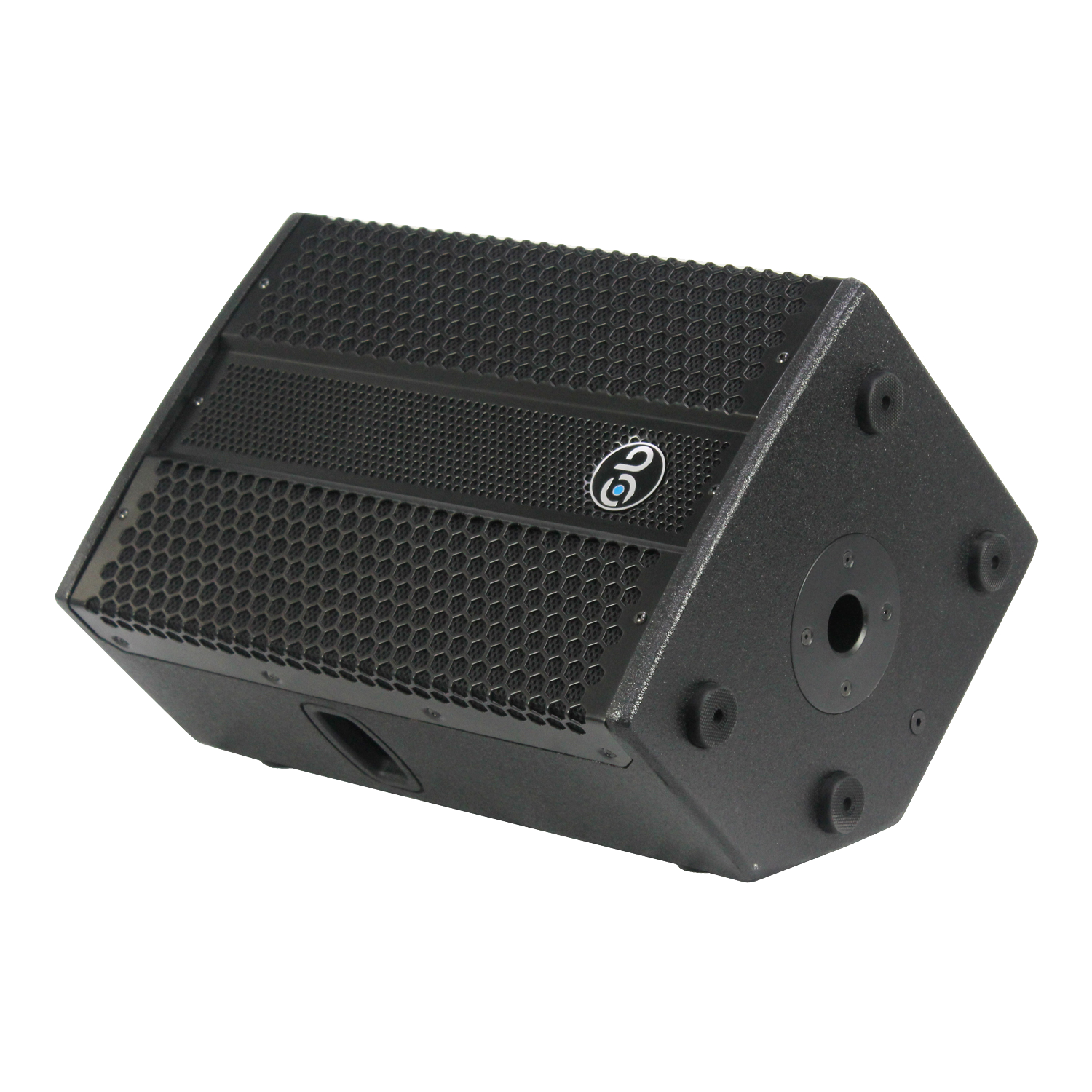

The Sound Barrier iLX10D is an active two-way loudspeaker for mobile DJs, live performers, portable PA systems, houses of worship, corporate presentations, and fixed installations. Its MDF enclosure and portable design support both mobile and installed use.
The Class-D bi-amplified system drives the low- and high-frequency sections independently. It combines a 10-inch woofer with a 2-inch voice coil and a 1-inch exit compression driver with a 1.35-inch voice coil. The system provides a published 1000 W peak rating, 55 Hz–20 kHz frequency response, and 124 dB maximum SPL.
Four DSP presets—Music, Flat, Speech, and Club—let users quickly adapt the speaker’s response to different program material and applications. SBT wireless audio and TWS pairing support cable-free playback from a compatible source and stereo linking between two compatible speakers.
Two combo XLR/¼-inch inputs with Mic/Line switches, a 3.5 mm auxiliary input, and an XLR output provide flexible connectivity. The universal 100–240 V power supply, locking PowerCON-type AC input and link output, 35 mm pole-mount socket, and M8 rigging points support portable and installed setups.
KEY FEATURES
- 10" LF driver with 2" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1000W peak / 250W RMS
- sBT with TWS Pairing
- Integrated DSP with Application Presets
- powerCON-type AC input and output
- 35mm Pole mount
- Stage Monitor Profile
APPLICATION

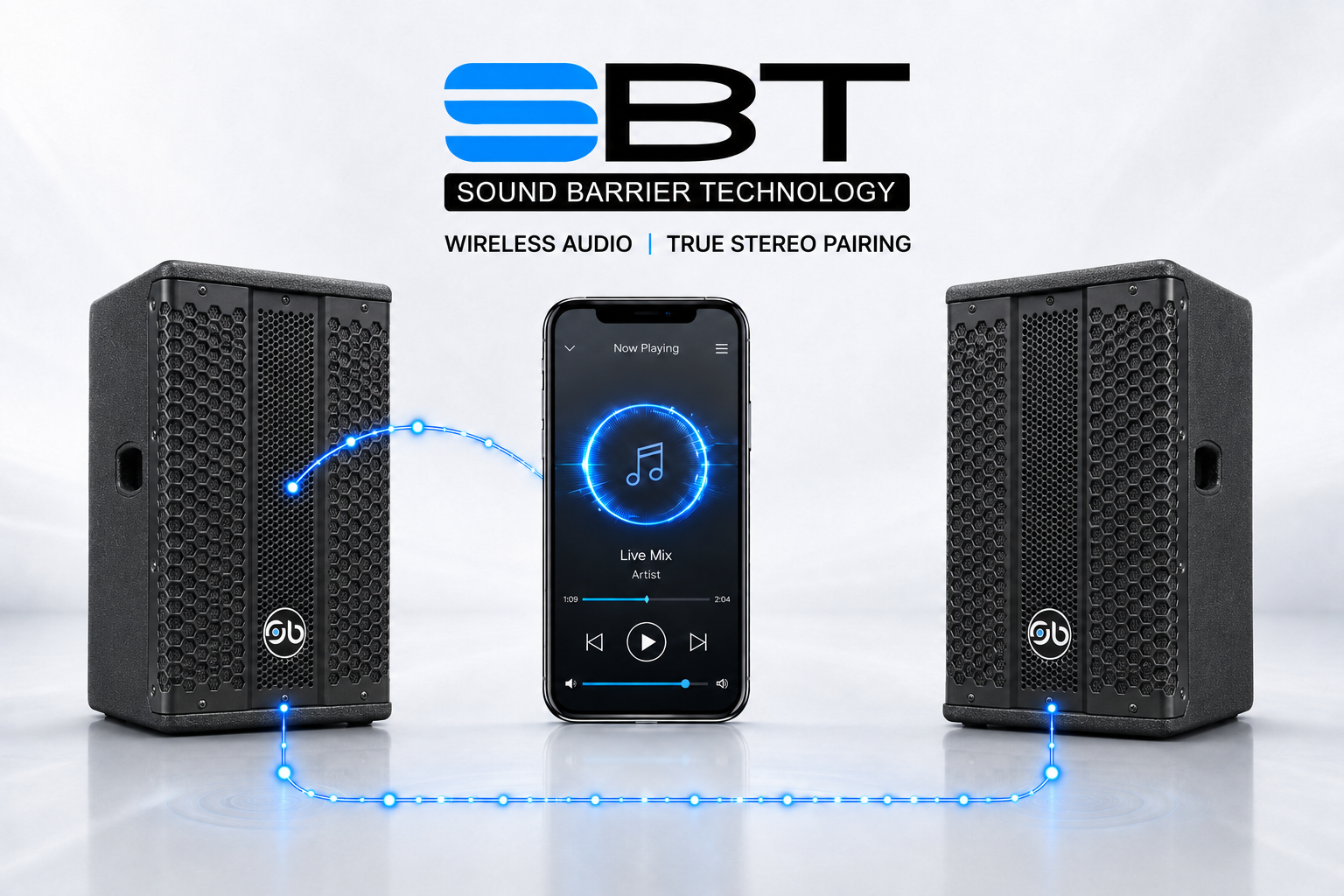

SBT Wireless Technology with True Wireless Pairing
Sound Barrier Technology (sBT) allows compatible playback devices to transmit audio wirelessly for convenient, cable-free operation. The True Wireless Stereo (TWS) function links two speakers together for true stereo sound with separate left and right channels.

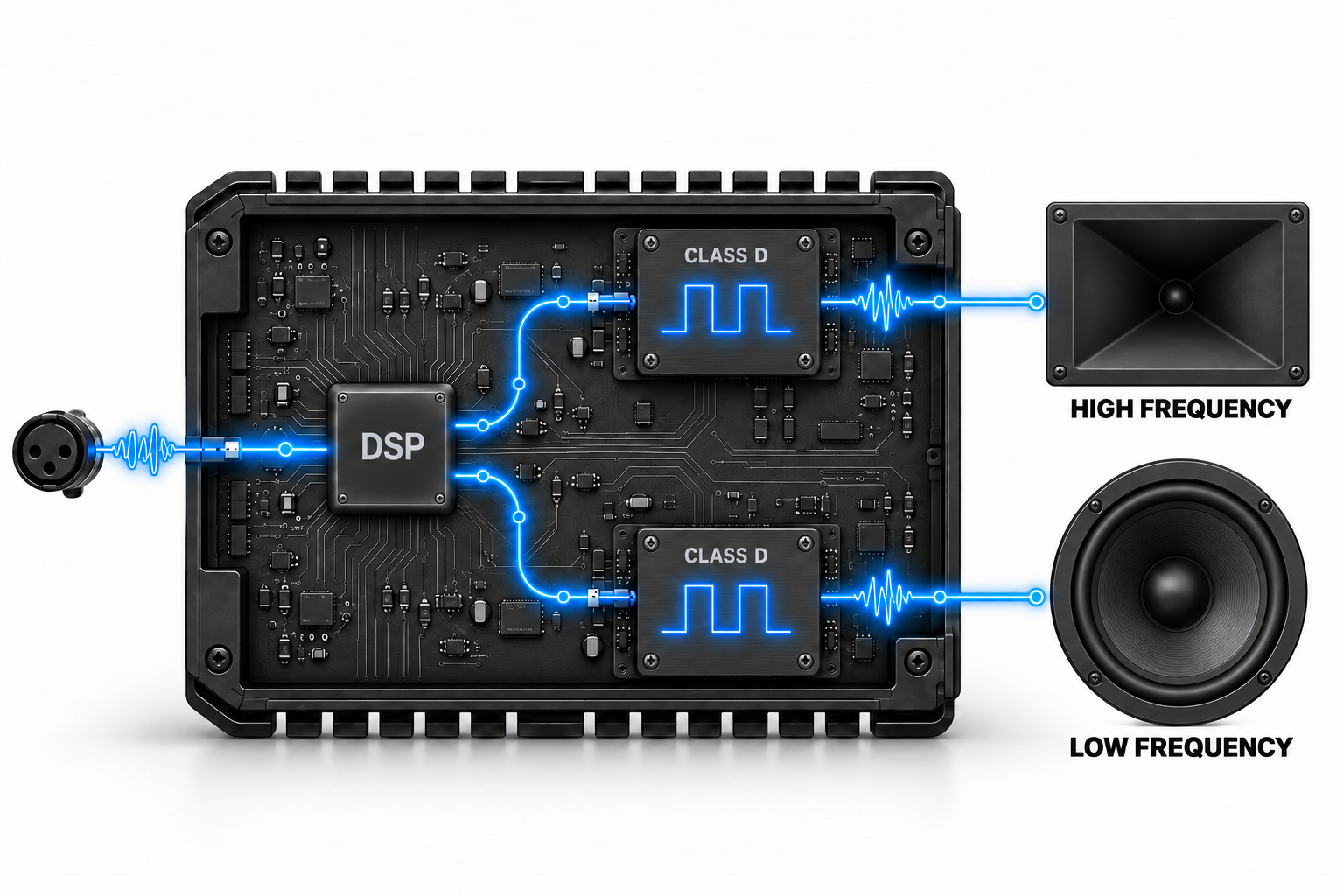

Class-D Bi-Amp Power
A Class-D bi-amplified power system drives the low- and high-frequency sections independently for efficient, controlled performance. Dedicated amplifiers power the 10-inch woofer and 1-inch-exit compression driver, producing clear full-range reproduction and up to 124 dB maximum SPL from a remarkably compact enclosure.

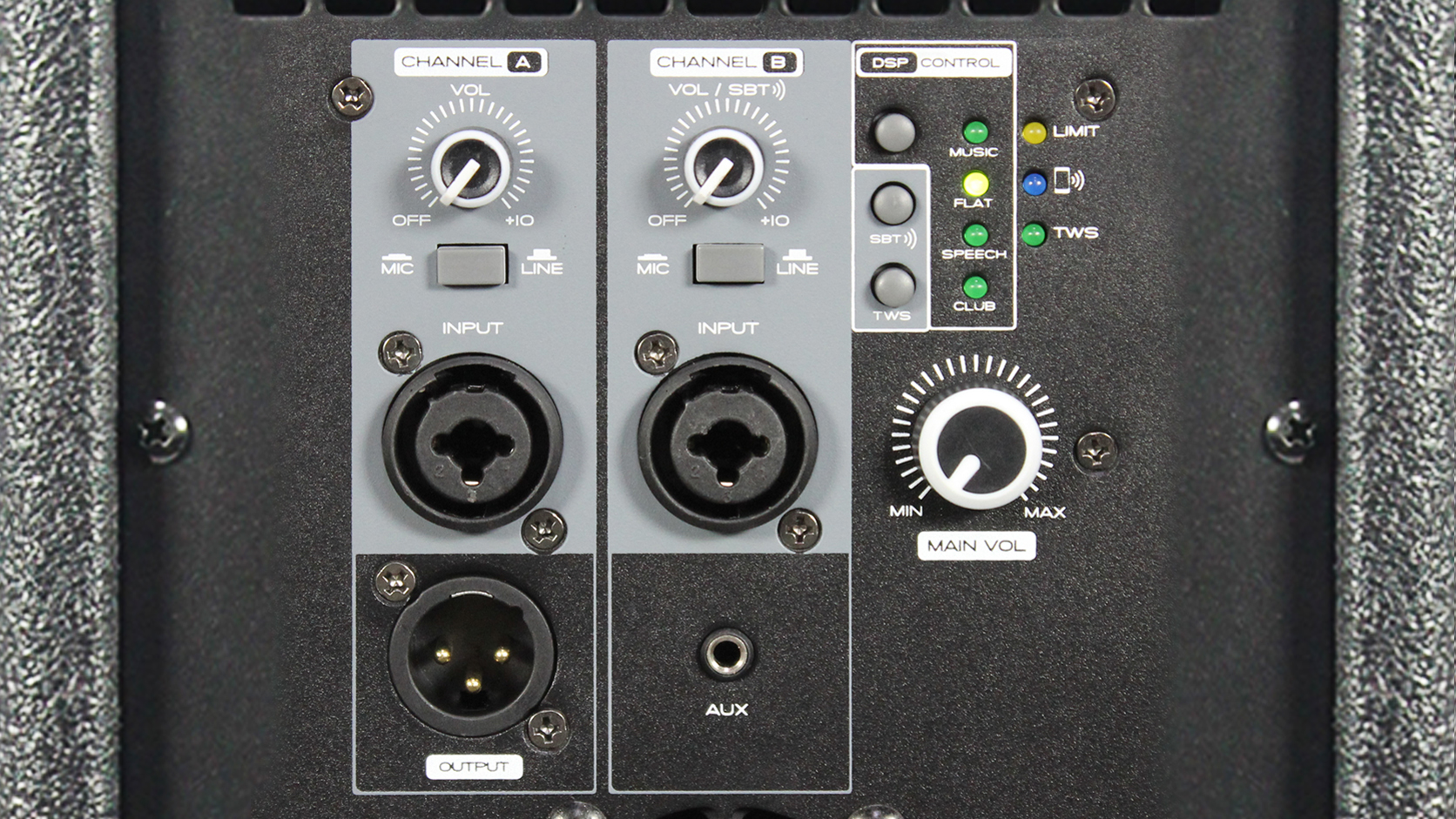

Powerful Control. Flexible Connectivity.

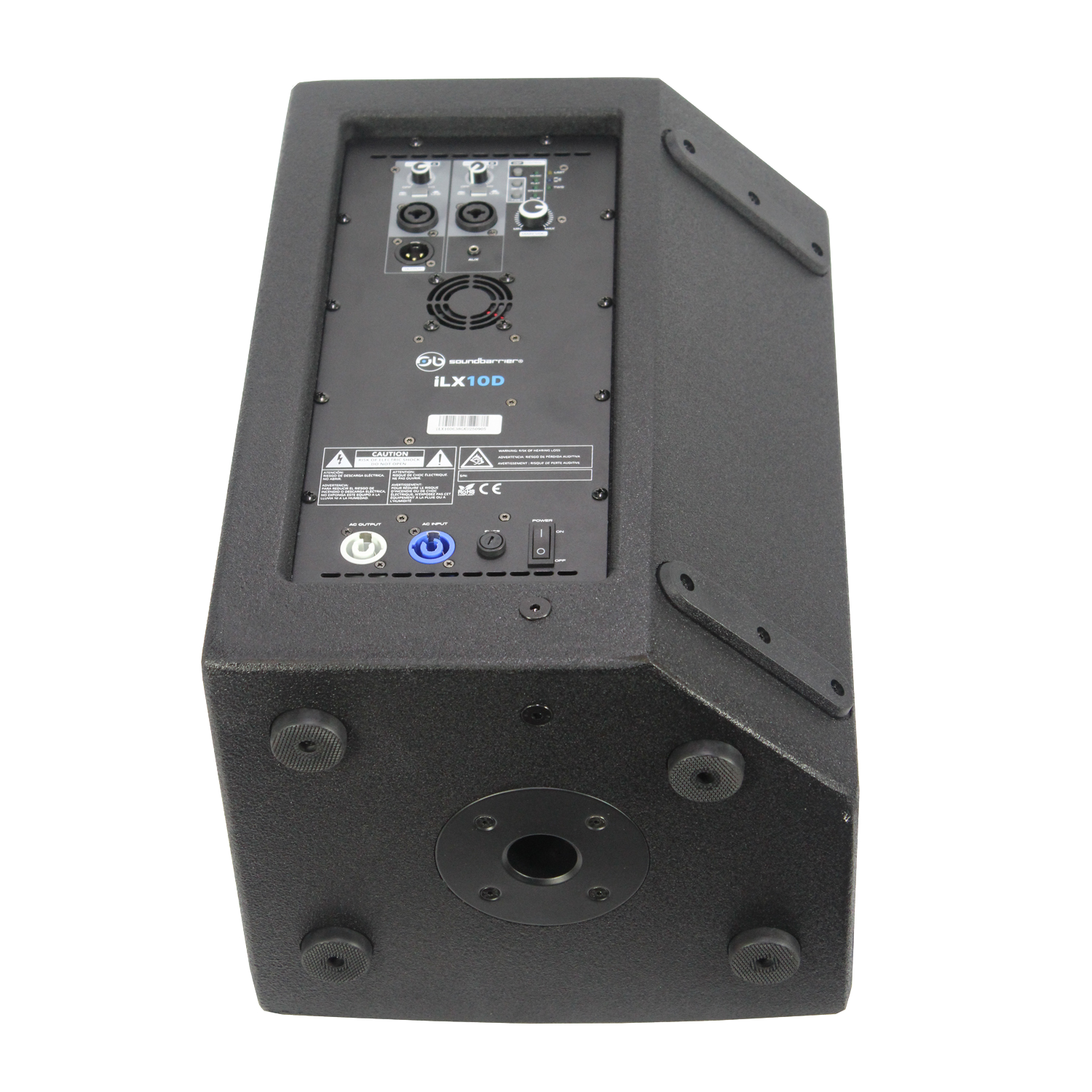

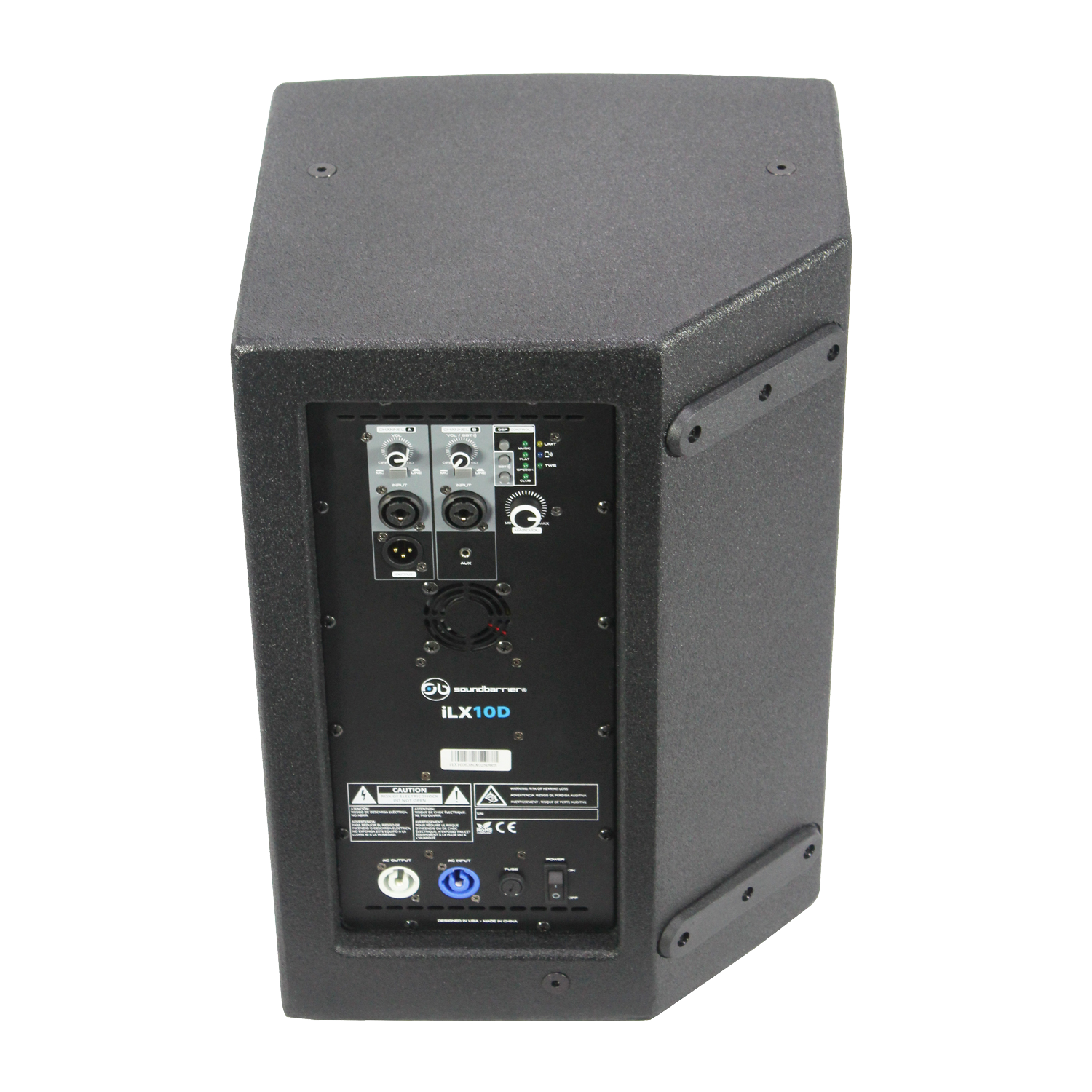

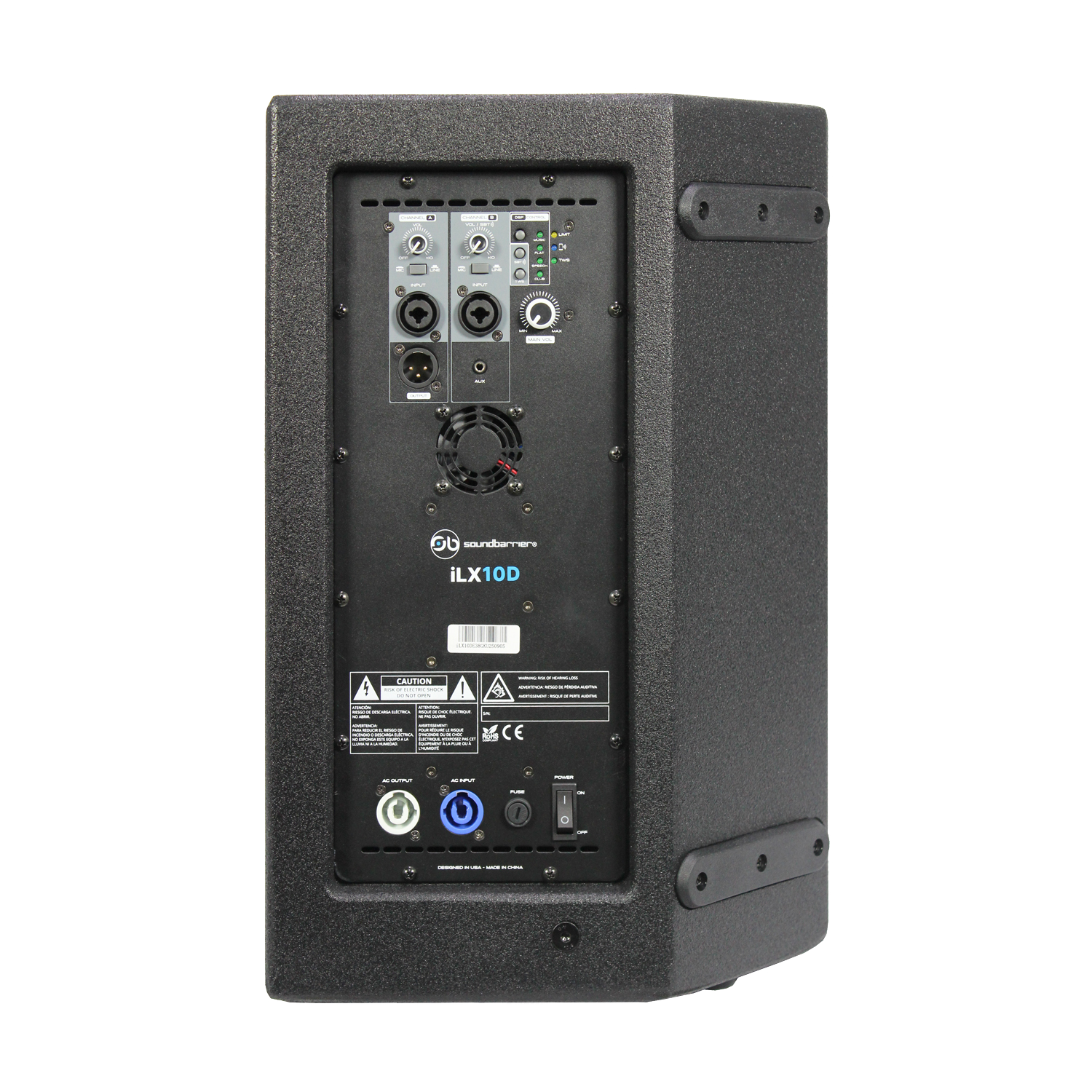

The rear control panel includes two independent channels with volume controls, Mic/Line selectors, and combination XLR/¼ inch inputs. It also features SBT wireless audio, TWS speaker linking, four DSP presets, Music, Flat, Speech, and Club, a master volume control, limiter and status indicators, an auxiliary input, and a balanced XLR output for linking to another speaker.

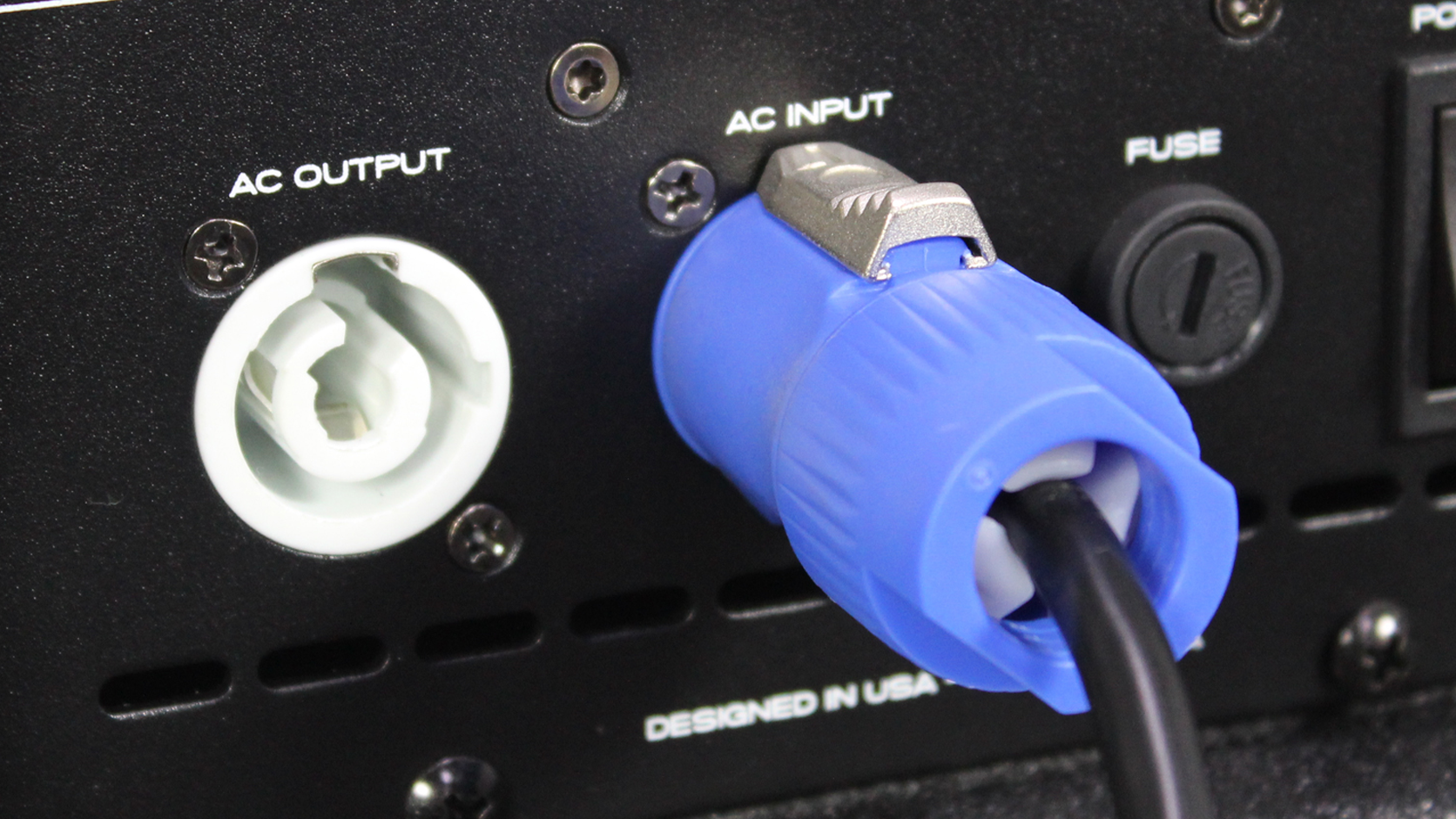

Secure Locking Power Connection
Keep your system powered securely with a locking PowerCON-type power connection, designed to reduce the risk of accidental disconnection. This professional-grade feature is ideal for both portable setups and the demands of touring and live events.
Specifications
Acoustic Specifications
- System Type:
- 2-way, Full Range, Active, Bi-amplified
- Frequency Response:
- 55Hz–20kHz
- Max SPL:
- 124 dB
- Nominal Coverage:
- 110° horizontal, 100° vertical
- System Impedance:
- 4 Ohm
Transducers
- Low-Frequency Driver:
- 1 × 10" Woofer with 2" VC
- High-Frequency Driver:
- 1 × 1" Exit Compression Driver with 1.35" VC
Power Section
- Total Amplifier Power:
- 1000W peak / 250W RMS
- Amplifier Type:
- Class-D, Bi-amp
- Cooling:
- Internal Convection + Fan
Input / Output Section
- MIC / LINE Input Channels:
- 2 x combo XLR / 1/4" with MIC / LINE Switch
- AUX Input:
- 1 × 3.5mm jack
- Output Connectors:
- 1 × XLR mix output
- Wireless Audio:
- sBT Wireless with TWS (Truess Wireless Stereo)
Processor & Controls
- DSP Presets::
- Music / Flat / Speech / Club
- Input Controls:
- Independent CH A level control Shared CH B / sBT / AUX level control Main (Master) level control
- Wireless Audio Controls:
- PAIR and TWS buttons
- Protection:
- DSP Digital Limiting
- Status Indicators:
- Limit / Clip LED Indicator DSP Preset Indicators sBT Wireless Indicator TWS (True Wireless Stereo Indicator)
Power Requirements
- Operational Voltage:
- Universal 100V to 240V AC, 50/60 Hz
- Power Connection:
- Locking powerCON-type AC Input Locking powerCON-type AC Output PowerCON-to-Edison AC cable included
Construction
- Cabinet Material:
- MDF
- Cabinet Finish:
- Durable sand-textured coating
- Color:
- Black
- Grille:
- Steel with Anti-Corrosion Coating & Acoustic Cloth Backing
- Enclosure Design:
- Multi-angle for upright or floor-monitor use
- Rigging:
- 35mm Pole Mount Socket M8 flying points
- Handles:
- 2 x Side Wood Recessed Handles
- Feet:
- Nonslip rubber feet
Dimensions
- Dimensions (H × W × D):
- 10.5 × 11.5 × 19.5 in (267 × 292 × 495 mm)
- Weight:
- 34.5 lb (15.6 kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration.
