iLX10DSUB

10-Inch Active Subwoofer with Selectable Crossover, Phase Control, and High-Pass Outputs

10" LF Driver with 2.5" VC
1200W peak / 300W RMS
Class D amplification
Selectable Crossover
0°/180° phase control
Full-range or high-pass-filtered outputs
Stereo XLR I/O with dedicated mix output
Ground Lift switch and digital limiting
powerCON-type AC input and output
Caster Wheel Ready

Where to Buy

Overview

The Sound Barrier iLX10DSUB is a compact active subwoofer designed to add tight, controlled low-frequency reinforcement to portable PA systems, small venues, houses of worship, corporate presentations, and fixed installations where space and portability matter. Its 10-inch format is an efficient choice for systems that need meaningful bass extension without the footprint of a larger subwoofer.

An efficient Class-D amplifier delivers 1200W peak to the 10-inch low-frequency driver with a 2.5-inch voice coil. The iLX10DSUB provides a frequency response of 40Hz–150Hz and a maximum SPL of 125dB, giving full-range loudspeakers the low-frequency support they need for music playback, speech reinforcement, and compact live-sound systems.

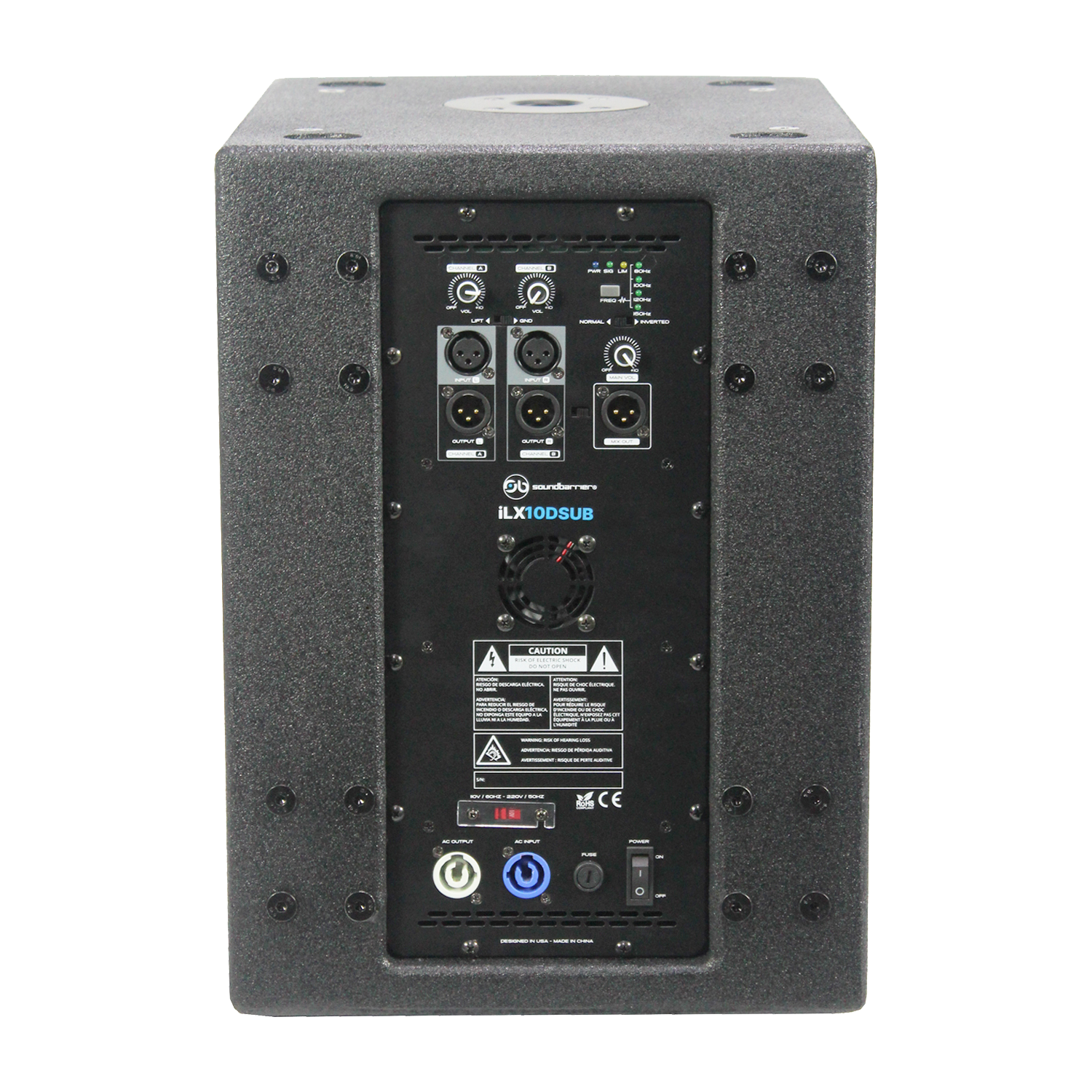

Simple rear-panel controls make system integration straightforward. Select an 80, 100, 120, or 150Hz crossover point to match the subwoofer to the connected top cabinets, use the 0°/180° phase switch to improve low-frequency alignment, and choose full-range or high-pass-filtered outputs for the connected loudspeakers. A Ground Lift switch helps reduce unwanted noise when required.

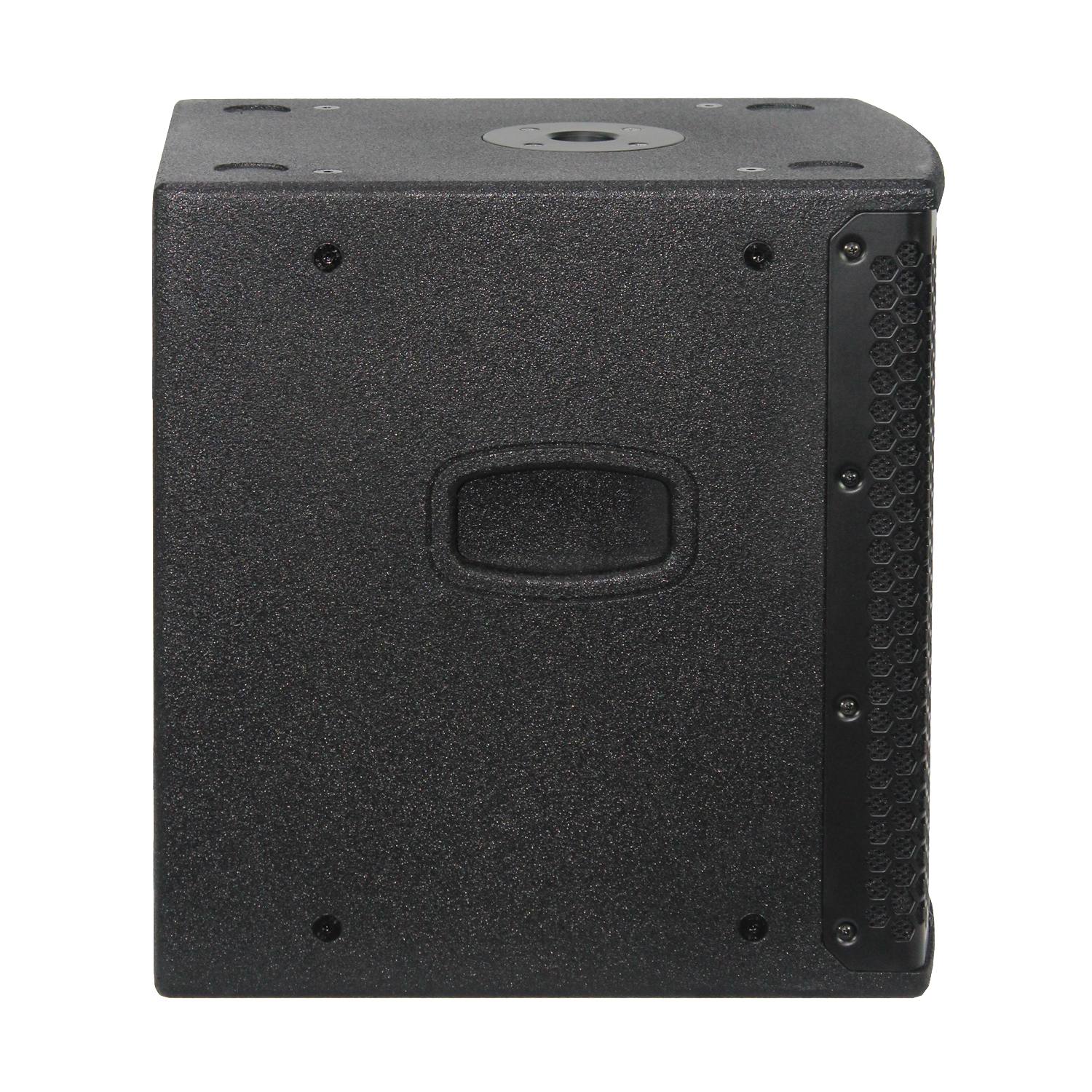

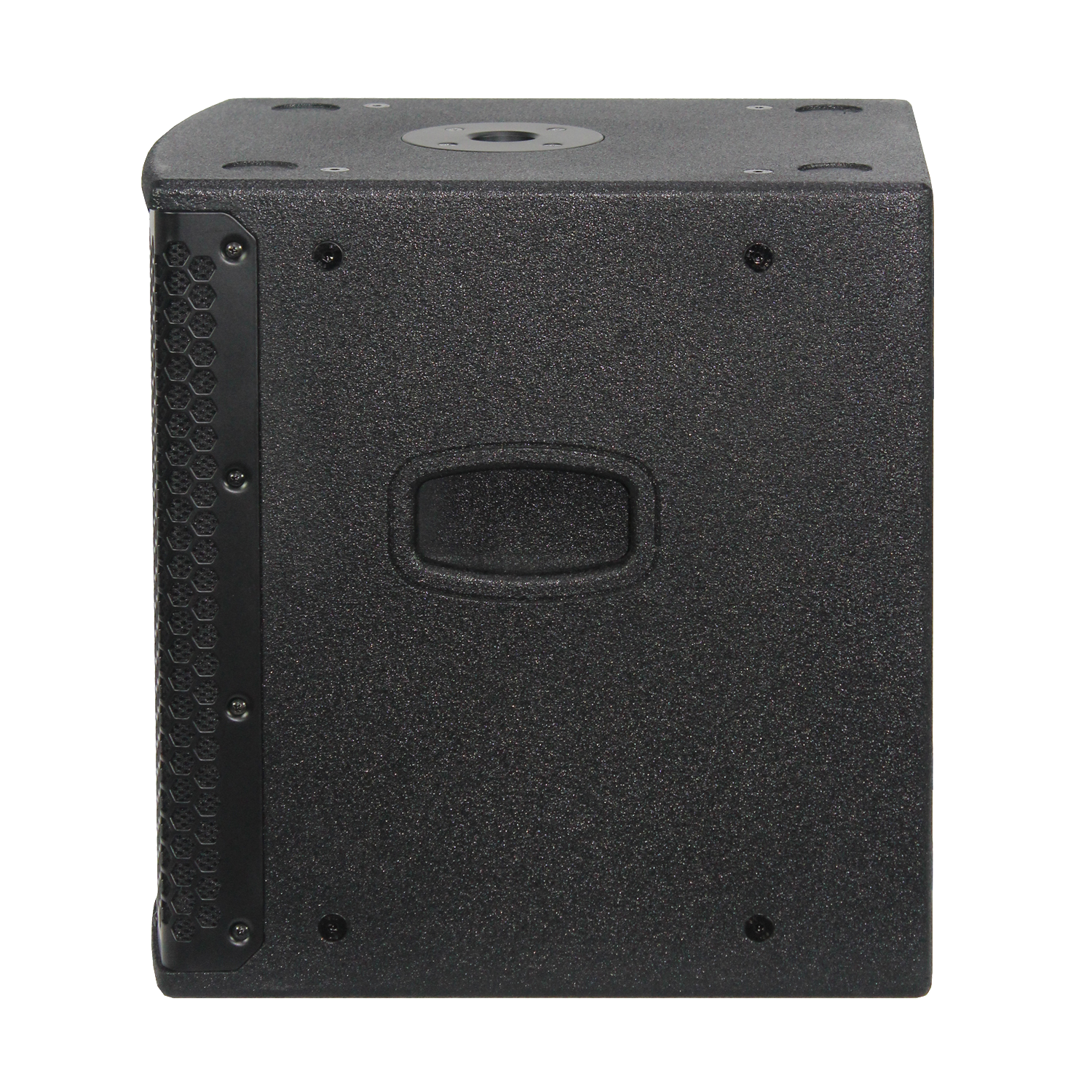

Stereo left and right XLR inputs and outputs, plus a dedicated mix output, support flexible signal routing. The rugged MDF enclosure features a textured finish, a corrosion-resistant steel grille, recessed side handle, pole-mount socket, and M8 rigging points. Locking PowerCON-type AC input and link output connections help provide secure power distribution for portable and installed systems.

KEY FEATURES

10" LF Driver with 2.5" VC
1200W peak / 300W RMS
Class D amplification
Selectable Crossover
0°/180° phase control
Full-range or high-pass-filtered outputs
Stereo XLR I/O with dedicated mix output
Ground Lift switch and digital limiting
powerCON-type AC input and output
Caster Wheel Ready

APPLICATION

Live Performance & EventsPortable PA / Mobile DJsInstallation & CommercialHouses of WorshipCorporate / AV Presentations

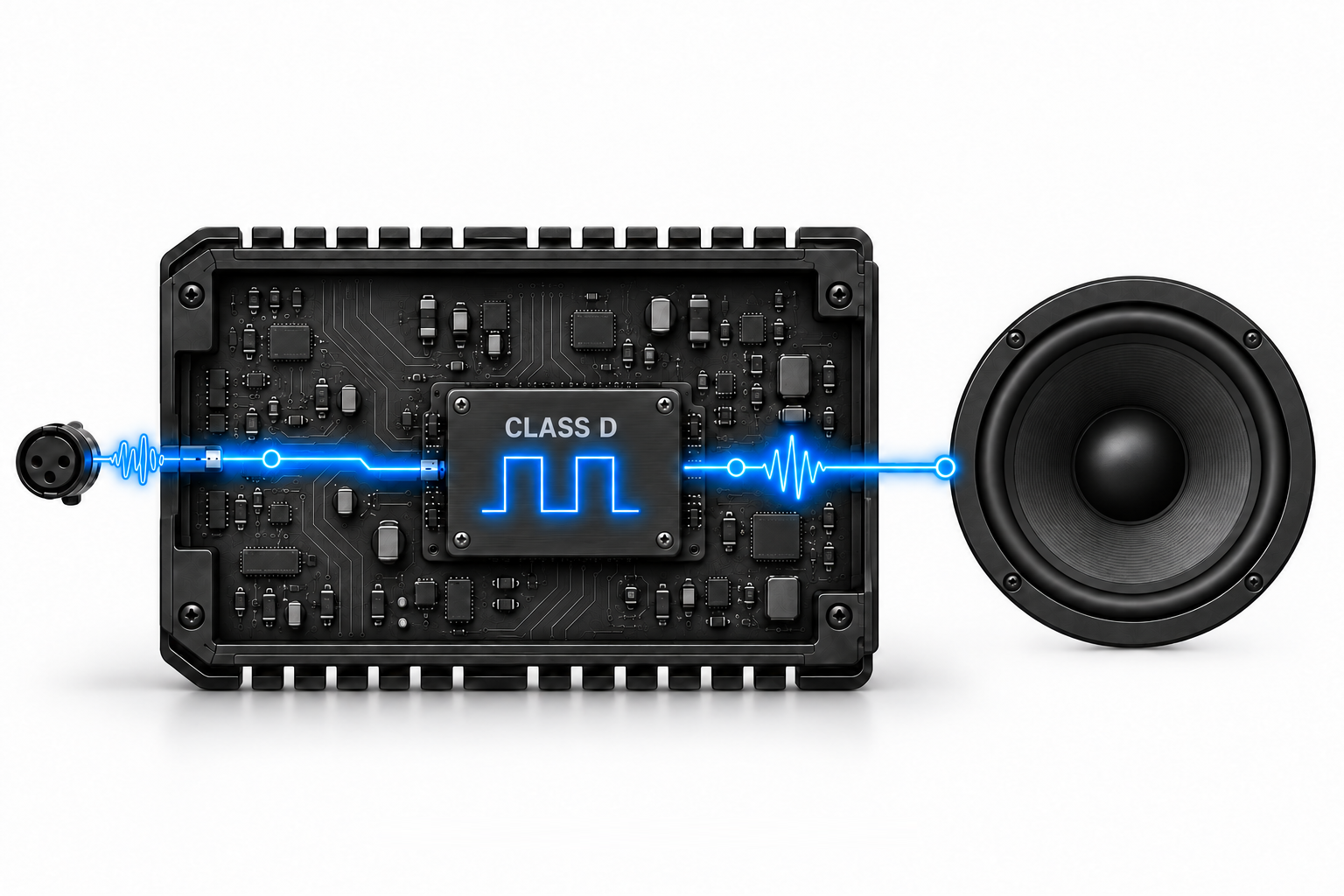

Class-D Subwoofer Power

The ECL118S uses a dedicated Class-D amplifier to deliver 600W RMS and 2400W peak output to its 18-inch low-frequency driver. A switch-mode power supply supports efficient power conversion, while the integrated amplifier allows direct connection to a line-level audio source without an external subwoofer amplifier.

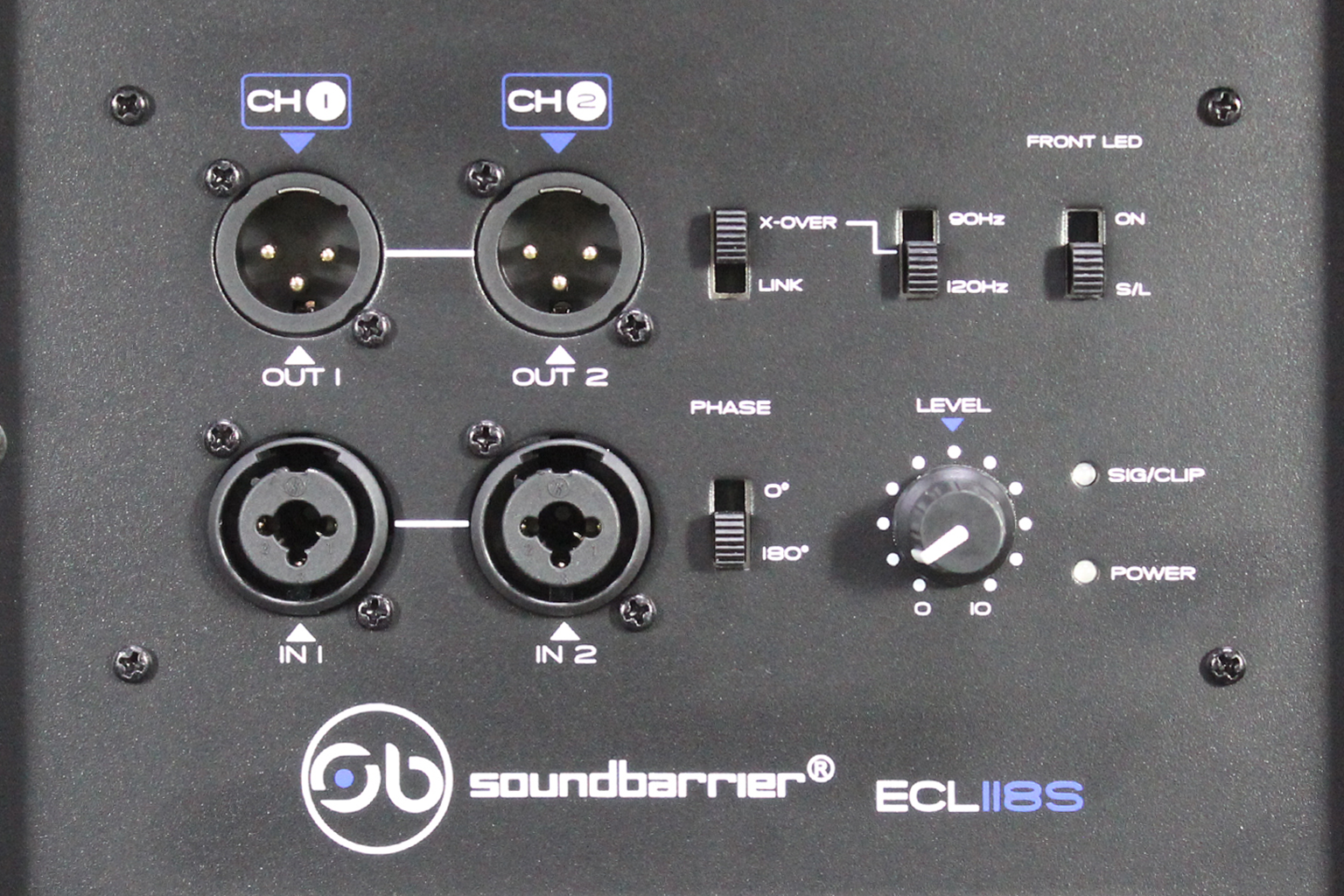

Flexible Connections & System Control

Two balanced XLR outputs make it easy to connect powered full-range loudspeakers or external amplifiers. CROSSOVER mode provides a high-pass-filtered signal for satellite loudspeakers, while LINK mode passes the incoming signal through without output filtering. The crossover selector helps match the subwoofer to your system, while the 0°/180° polarity switch helps improve bass integration with full-range loudspeakers. A dedicated level control lets you balance the subwoofer output with the rest of your setup.

3 YEAR WARRANTY

Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.

Specifications

Acoustic Specifications

System Type:: Active subwoofer

Frequency Response:: 40Hz–150Hz

Max SPL:: 125dB

Nominal Impedance:: 4 Ohms

Transducers

Low-Frequency Driver:: 1 × 10" Woofer with 2.5" VC

Power Section

Total Power:: 1200W peak / 300 RMS

Amplifier Type:: Class D

Protection:: Digital Limiting

Cooling:: Internal heatsink and fan

Input / Output Section

Inputs:: 2 × balanced XLR, left and right

Outputs:: 2 × balanced XLR, left and right

Mix Outputs:: 1 × balanced XLR mix output

Processor & Controls

Input Level Controls:: Left, right, and subwoofer level

Crossover Frequency:: 80, 100, 120, or 150Hz

Phase Control:: 0° or 180°

Output Mode:: Full-range or high-pass filtered above 120Hz

Ground Lift:: Ground/Lift switch

Status Indicators:: Power and signal/clip LEDs

Power Requirements

Operational Voltage:: 110–220V AC, 50/60Hz, switchable

Power Connection:: Locking PowerCON-type input Locking PowerCON-type output

Power Controls:: On/off switch, voltage selector, and replaceable AC fuse

Construction

Cabinet Material:: MDF

Cabinet Finish:: Durable sand-textured coating

Color:: Black

Grille:: Steel with Anti-Corrosion Coating & Acoustic Cloth Backing

Satellite Pole Socket:: 35mm Top-Hat Pole-Mount Socket

Rigging:: M8 flying points

Handles:: Recessed wood side handle

Feet:: Nonslip rubber feet

Caster Wheel Mounting:: Caster-wheel-ready mounting points for optional casters

Dimensions

Dimensions (W × H × D):: 12.6 × 17.75 × 16.5 in (320 × 451 × 419 mm)

Weight:: 42 lb (19 kg)

Warranty

3-Year Warranty:: 3-Year Warranty with Product Registration
