Loudspeakers
iLX12D
12-Inch Active Two-Way Loudspeaker with Advanced DSP, LCD Control, and sBT Wireless with TWS Pairing
- 12" LF driver with 2.5" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1400W peak / 350W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- 35mm Pole mount
- M8 Rigging Points
- Stage Monitor Profile
Overview

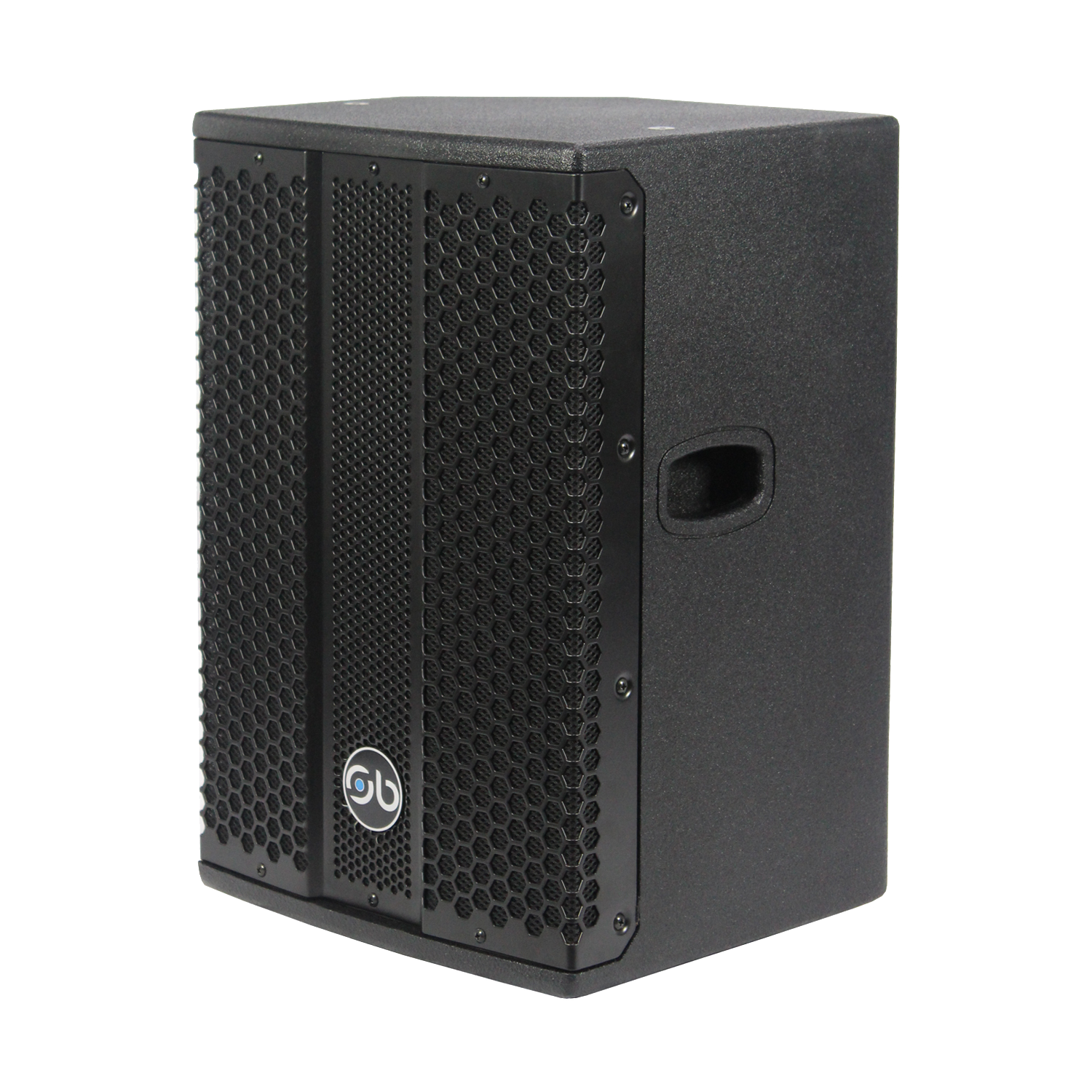

The Sound Barrier iLX12D is a high-output active two-way loudspeaker built for mobile DJs, live performers, houses of worship, corporate events, and permanent installations. Its compact 12-inch format combines powerful sound reinforcement with flexible control and professional connectivity for both portable and installed systems.
An efficient Class-D bi-amplified power section delivers 1400W peak to a 12-inch low-frequency driver and a high-frequency compression driver. The system provides a frequency response of 50 Hz–20 kHz, a maximum SPL of 126 dB, and broad 110° horizontal by 100° vertical coverage for strong, consistent sound throughout the listening area.
An advanced DSP controller with an onboard LCD makes system setup fast and intuitive. Choose from Music, Flat, Speech, and Club presets, then refine the response with Treble, Mid, and Bass controls. Selectable Sub LF Cutoff settings at 80, 100, 120, or 150 Hz simplify integration with a subwoofer, while delay alignment helps coordinate loudspeakers across larger or more complex systems.
Sound Barrier Technology (sBT) supports convenient wireless audio streaming, while True Wireless Stereo (TWS) pairs two compatible loudspeakers as dedicated left and right channels. Two combo XLR/1/4-inch mic/line inputs, a 3.5 mm auxiliary input, and an XLR output with CH A/MIX selection support a wide variety of sources and system configurations.
The durable MDF enclosure features a textured finish, a corrosion-resistant steel grille, a recessed side handle, a 35 mm pole socket, and M8 rigging points. Locking PowerCON-type AC input and link output connections, together with universal 100–240V operation, provide secure power distribution for touring, live production, and fixed installations.
KEY FEATURES
- 12" LF driver with 2.5" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1400W peak / 350W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- 35mm Pole mount
- M8 Rigging Points
- Stage Monitor Profile
APPLICATION

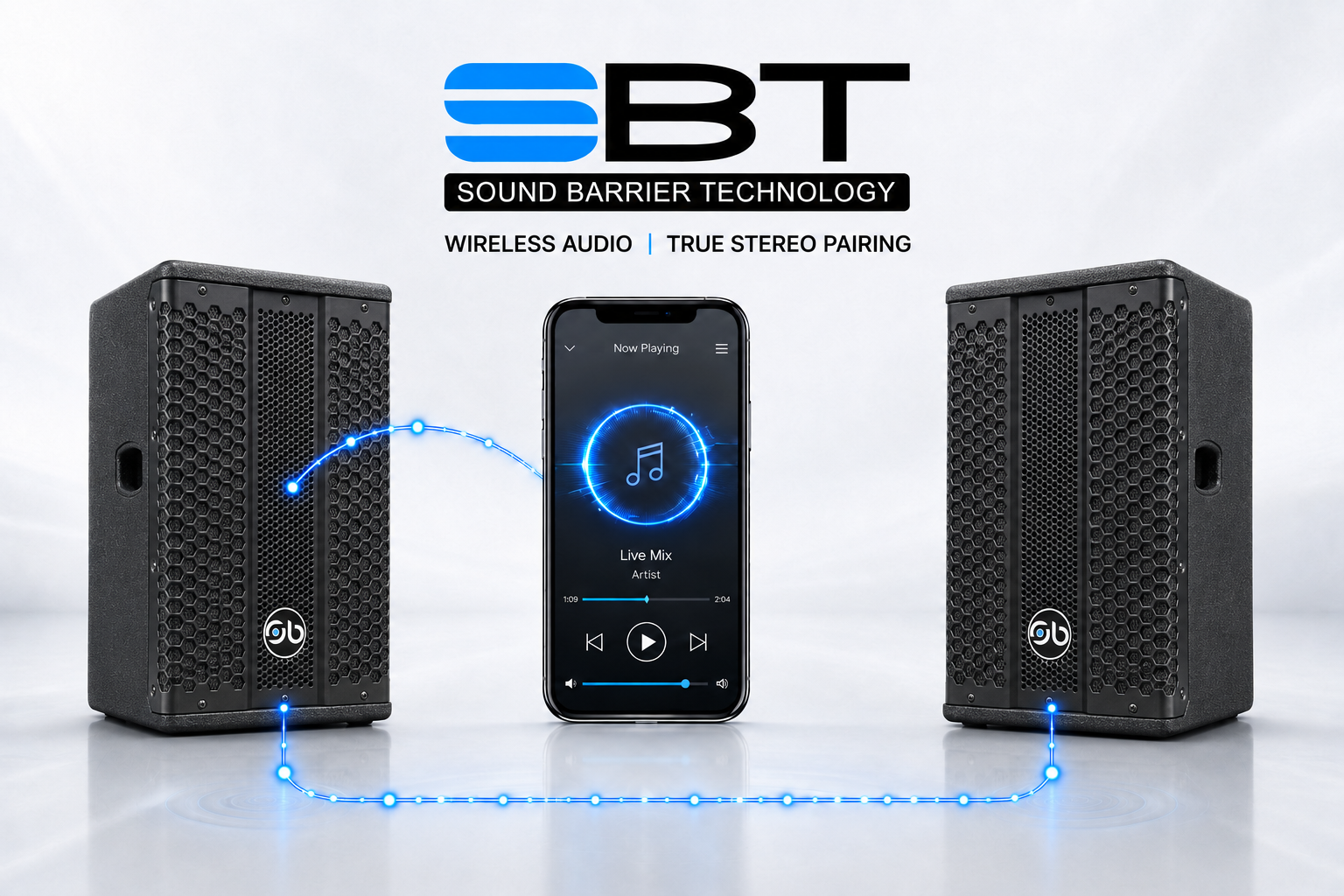

SBT Wireless Technology with True Wireless Pairing
Sound Barrier Technology (sBT) allows compatible playback devices to transmit audio wirelessly for convenient, cable-free operation. The True Wireless Stereo (TWS) function links two speakers together for true stereo sound with separate left and right channels.

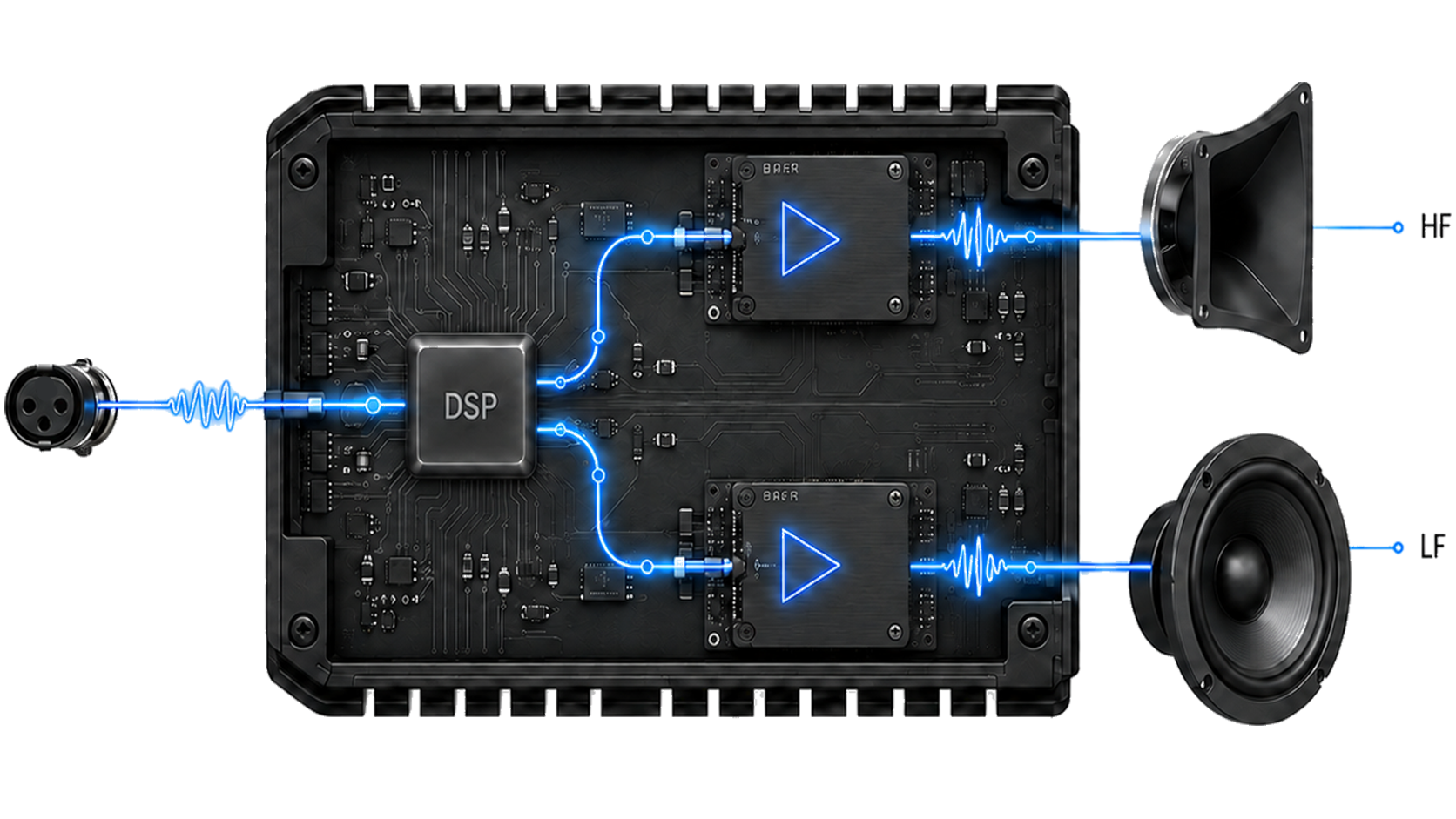

Class-D Bi-Amp Power
A Class-D bi-amplified power system drives the low- and high-frequency sections independently for efficient, controlled performance. Dedicated amplifiers power the 8-inch woofer and 1-inch-exit compression driver, producing clear full-range reproduction and up to 124 dB maximum SPL from a remarkably compact enclosure.

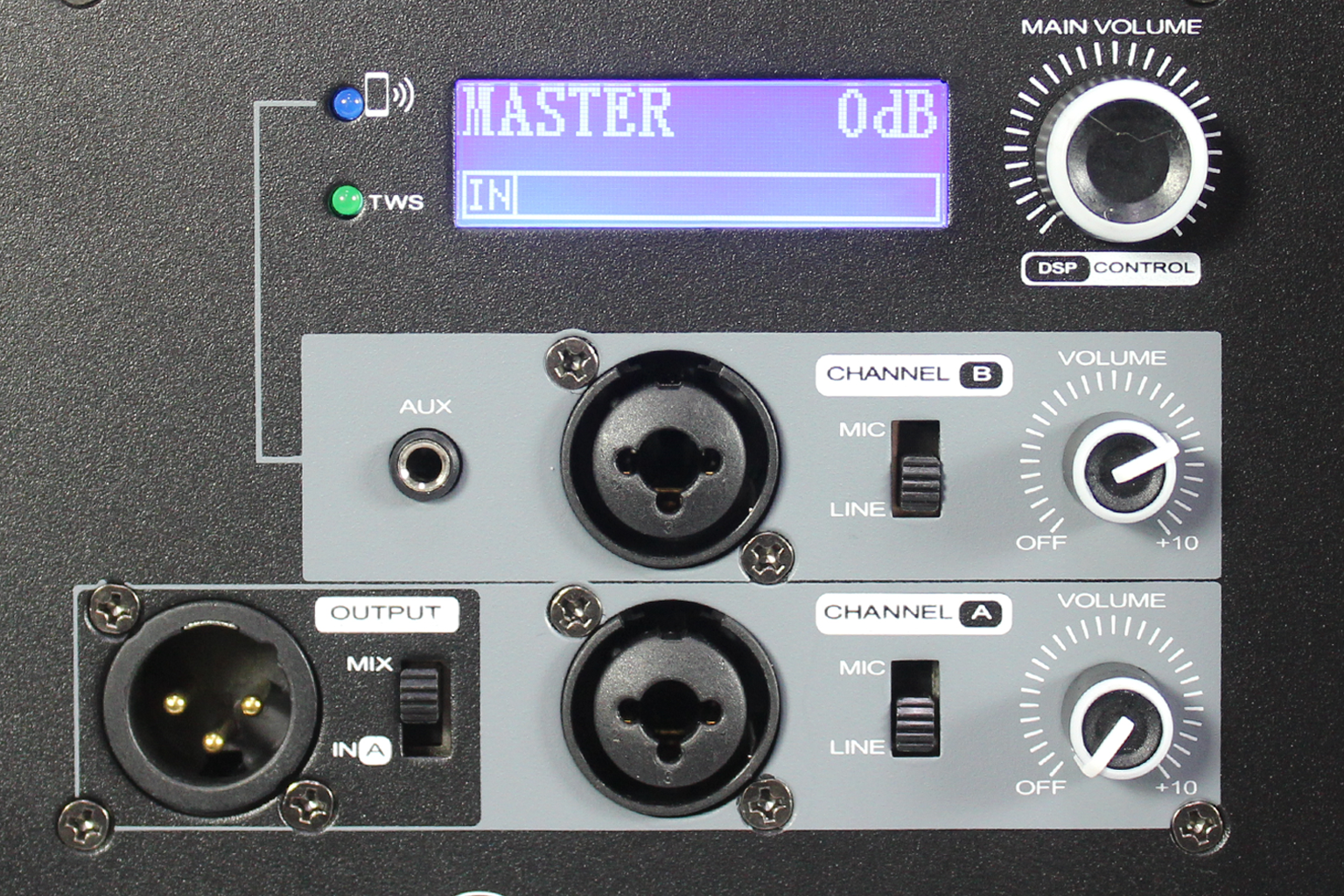

Advanced DSP Control & Flexible Connectivity
The onboard LCD and main volume/DSP control provide direct access to Music, Flat, Speech, and Club presets, adjustable Treble, Mid, and Bass EQ, selectable 80, 100, 120, or 150 Hz Sub LF Cutoff settings, delay alignment, sBT and TWS functions, and display settings.
Two combo XLR/1/4-inch inputs accept microphone- or line-level sources, with independent Channel A and Channel B level controls for precise balancing. A 3.5 mm auxiliary input accommodates additional playback devices, while the balanced XLR output can send either Channel A or the complete mix to another loudspeaker or audio device.

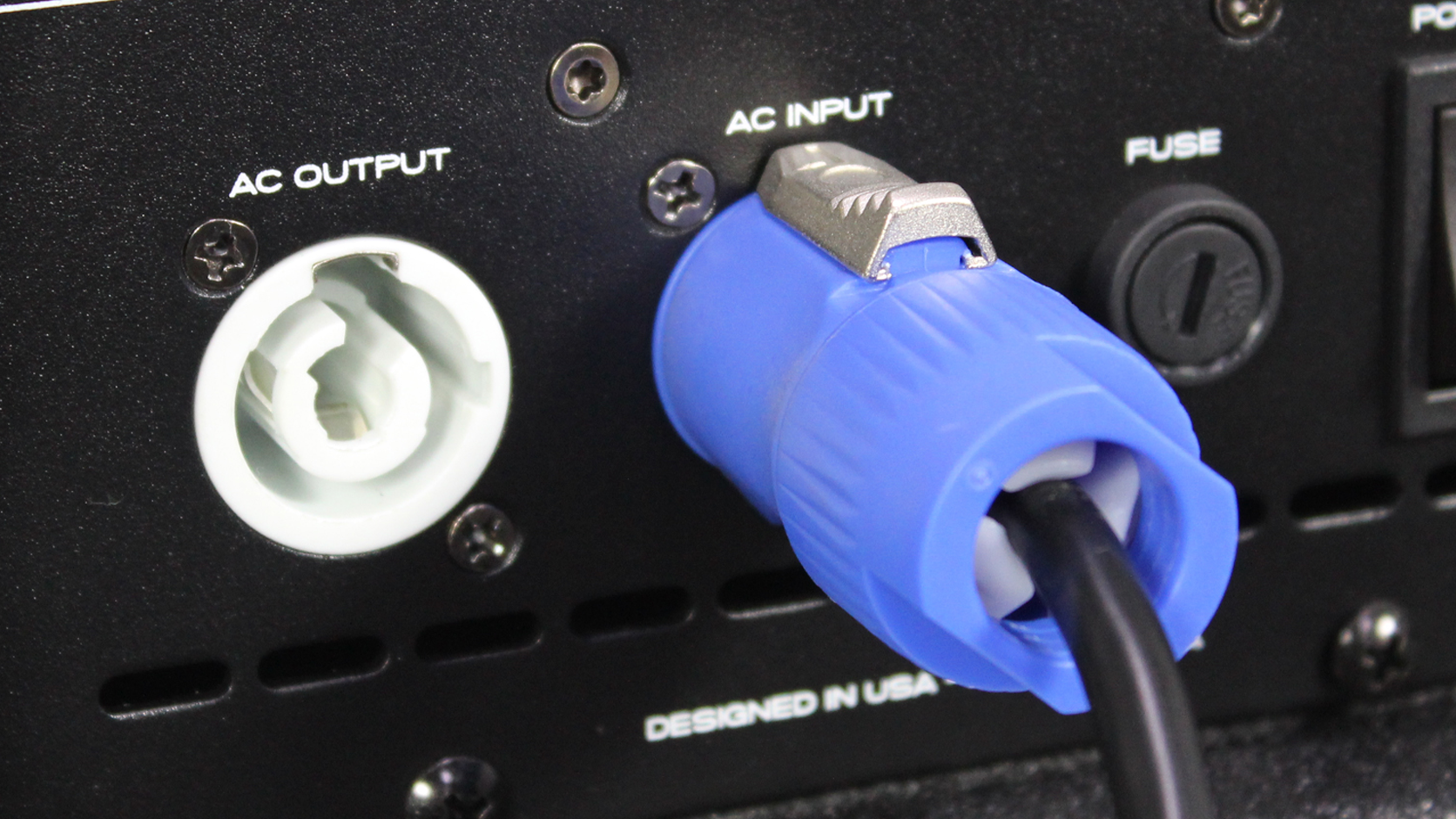

Secure Locking Power Connection
Keep your system powered securely with a locking PowerCON-type power connection, designed to reduce the risk of accidental disconnection. This professional-grade feature is ideal for both portable setups and the demands of touring and live events.
Specifications
Acoustic Specifications
- System Type:
- 2-way, Full Range, Active, Bi-amplified
- Frequency Response:
- 50Hz–20kHz
- Max SPL:
- 126 dB @ 1 meter
- Nominal Coverage:
- 110° horizontal, 100° vertical
- System Impedance:
- 4 Ohm
Transducers
- Low-Frequency Driver:
- 1 × 12" Woofer with 2.5" VC
- High-Frequency Driver:
- 1 × 1" Exit Compression Driver with 1.35" VC
Power Section
- Total Amplifier Power:
- 1400W peak / 350W RMS
- Amplifier Type:
- Class-D, Bi-amp
- Cooling:
- Internal Convection + Fan

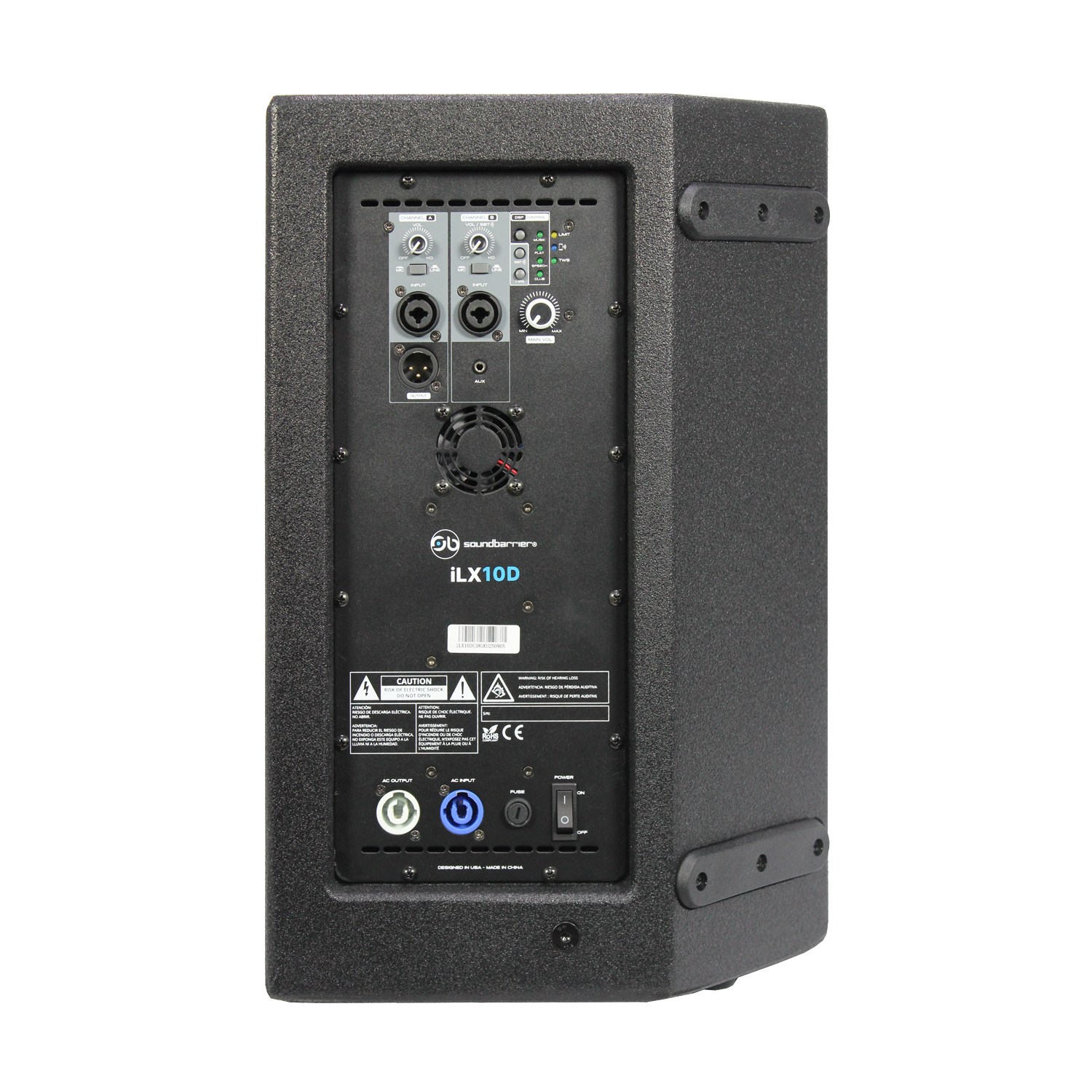

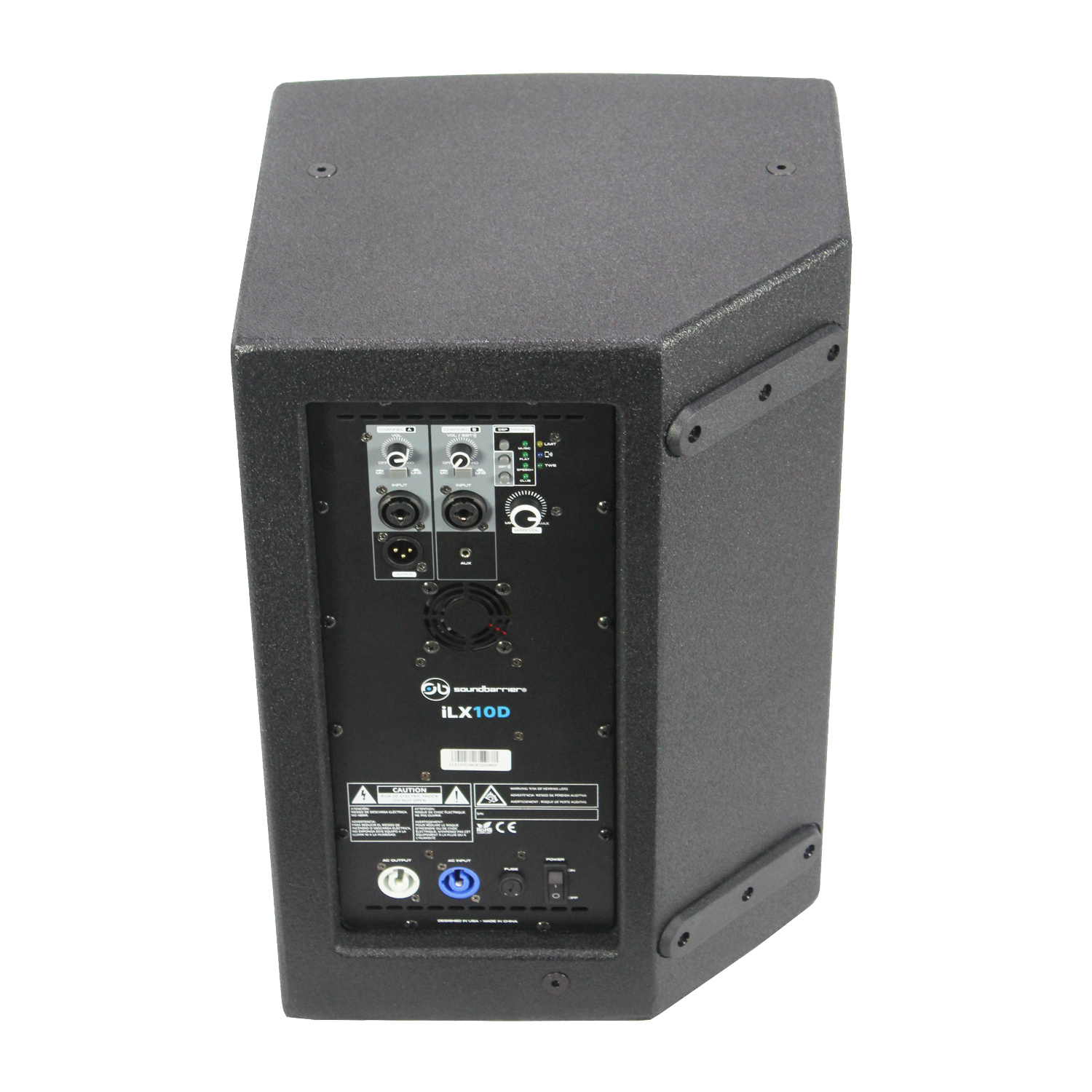

Input / Output Section
- Input Channels:
- 2 2 × XLR and ¼-inch combo jacks with MIC / Line switch
- AUX Input:
- 1 × 3.5mm jack
- Output Connectors:
- Balanced XLR output with CH A/MIX selector
- Wireless Audio:
- sBT Wireless with TWS (Truess Wireless Stereo)
Processor & Controls
- User Interface:
- LCD display with main volume/DSP rotary control
- DSP Presets:
- Music / Flat / Speech / Club
- User EQ:
- Treble, Mid, and Bass
- Sub LF Cutoff:
- 80, 100, 120, or 150 Hz
- Alignment:
- Adjustable delay
- Wireless Controls:
- sBT and TWS configuration
- Display Controls:
- LCD dimming, brightness, and contrast
- Input Controls:
- Independent CH A level control Shared CH B / sBT / AUX level control Main (Master) level control
- Protection:
- DSP Digital Limiting
- LED Indicators:
- sBT Wireless Indicator TWS (True Wireless Stereo Indicator)
Power Requirements
- Operational Voltage:
- Universal 100V to 240V AC, 50/60 Hz
- Power Connection:
- Locking powerCON-type AC Input Locking powerCON-type AC Output PowerCON-to-Edison AC cable included
Construction
- Cabinet Material:
- MDF
- Cabinet Finish:
- Durable sand-textured coating
- Color:
- Black
- Grille:
- Steel with Anti-Corrosion Coating & Acoustic Cloth Backing
- Enclosure Design:

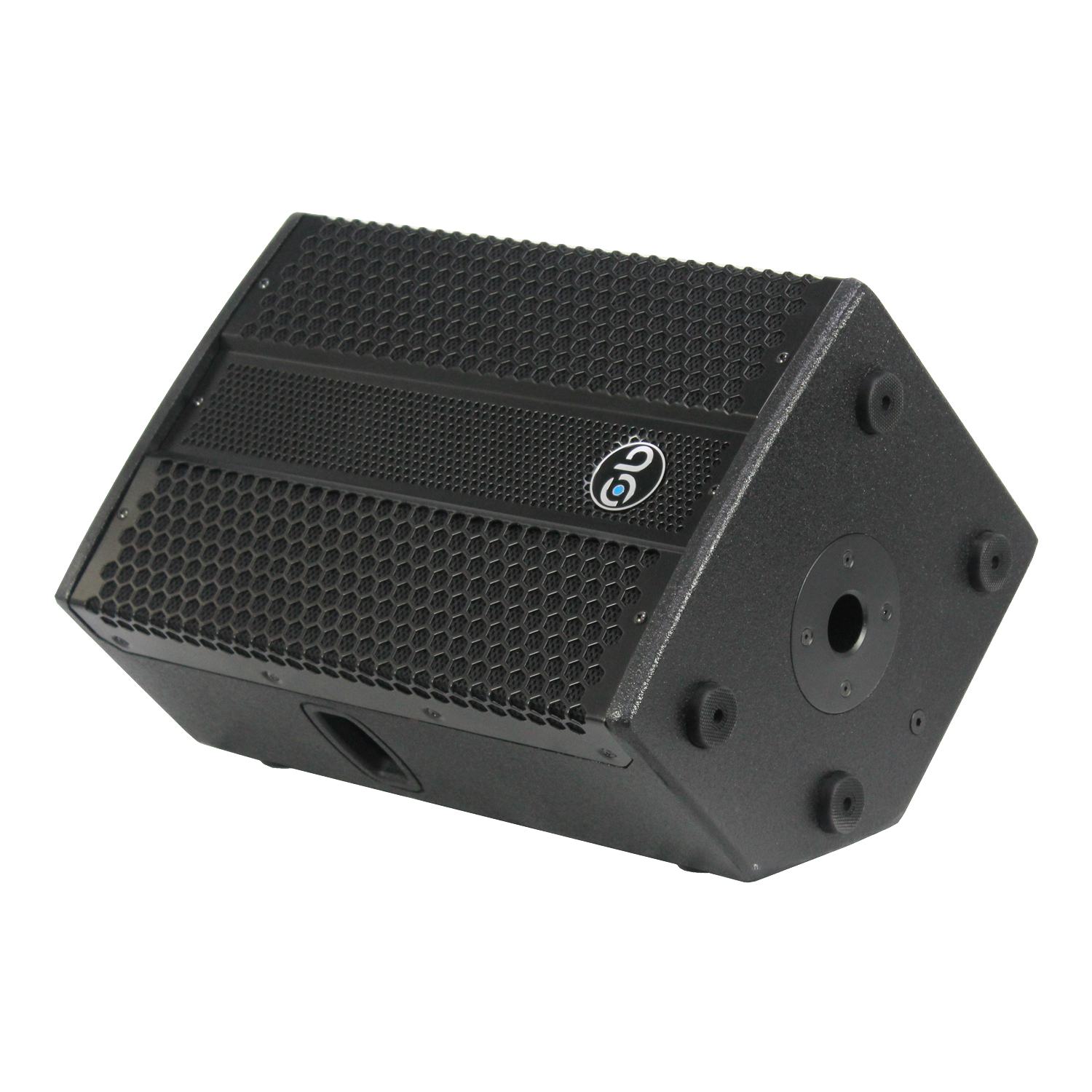

- Multi-angle for upright or floor-monitor use
- Rigging:
- 35mm Pole Mount Socket M8 Rigging Points
- Handles:
- 2 x Side Wood Recessed Handles
- Feet:
- Nonslip rubber feet
Dimensions
- Dimensions (H × W × D):
- 14.25 × 25 × 13.5 in (362 × 635 × 343 mm)
- Weight:
- 48.5 lb (22 kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration.
