Loudspeakers
iLX215D
Dual 15-Inch Active Two-Way Loudspeaker with Advanced DSP, LCD Control, and sBT Wireless with TWS Pairing
- 2 x 15" LF driver with 3" VC
- 1" Compression Driver with 1.75" VC
- Class-D Bi-amplification
- 3600W peak / 900W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- M8 Rigging Points
Overview

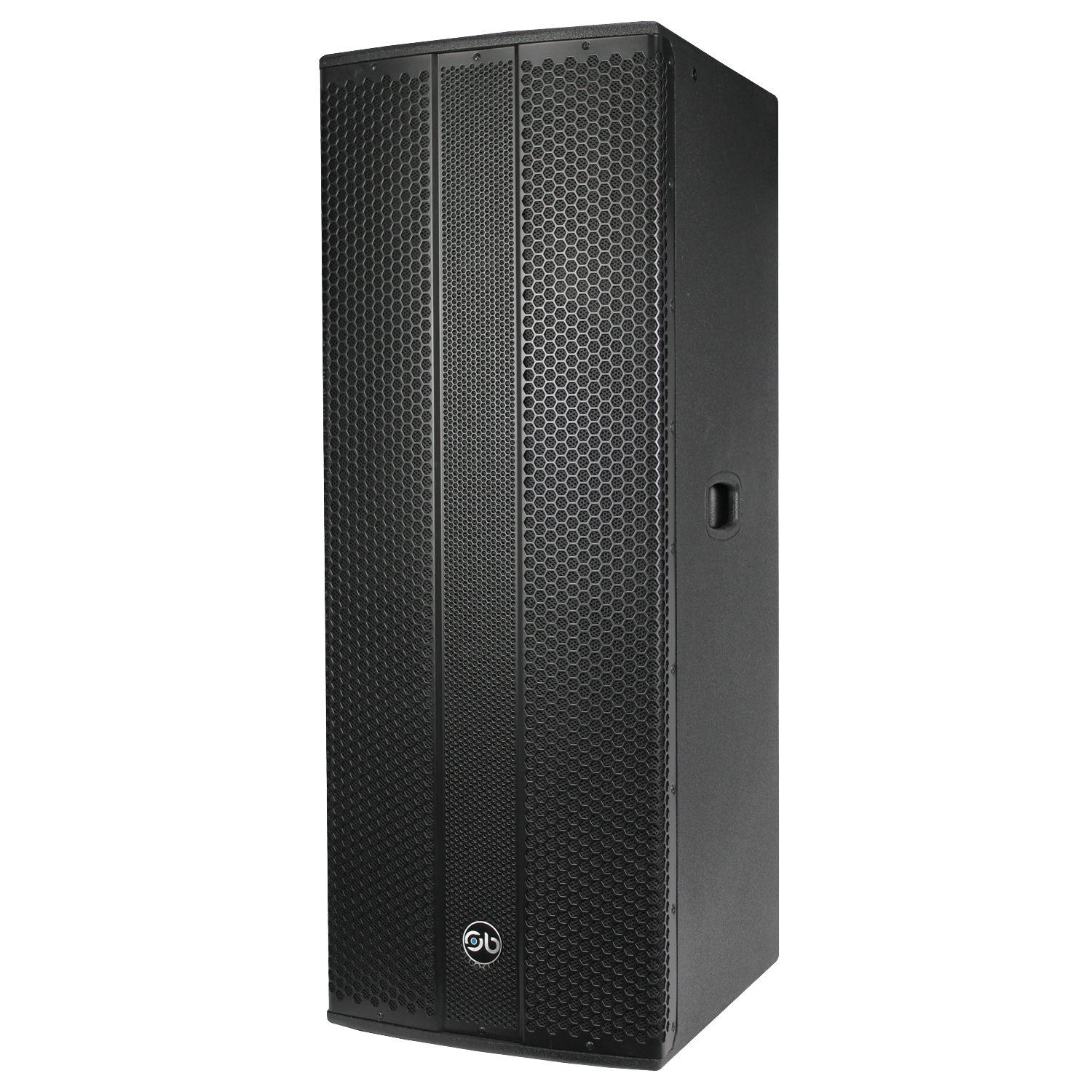

The Sound Barrier iLX215D is an ultra-high-output active two-way loudspeaker built for large venues, nightclubs, outdoor events, and professional sound reinforcement applications that require maximum output, powerful low-frequency impact, and flexible system control. Its dual 15-inch configuration delivers the authority and projection needed for high-energy music playback and large-audience coverage.
An efficient Class-D bi-amplified power section delivers 3600W peak to dual 15-inch low-frequency drivers and a high-frequency compression driver. The system provides a frequency response of 45Hz–20kHz, a maximum SPL of 132dB, and broad 110° horizontal by 100° vertical coverage for powerful, consistent sound throughout the listening area.
An advanced DSP controller with an onboard LCD makes system setup fast and intuitive. Choose from Music, Flat, Speech, and Club presets, then refine the response with Treble, Mid, and Bass controls. Selectable Sub LF Cutoff settings at 80, 100, 120, or 150Hz simplify integration with a subwoofer, while delay alignment helps coordinate loudspeakers across larger or more complex systems.
Sound Barrier Technology, or sBT, supports convenient wireless audio streaming, while True Wireless Stereo, or TWS, pairs two compatible loudspeakers as dedicated left and right channels. Two combo XLR/1/4-inch mic/line inputs, a 3.5mm auxiliary input, and an XLR output with CH A/MIX selection support a wide variety of sources and system configurations.
The durable MDF enclosure features a textured finish, a corrosion-resistant steel grille, recessed side handles, a 35mm pole socket, and M8 rigging points. Locking PowerCON-type AC input and link output connections, together with 100–240V operation, provide secure power distribution for touring, live production, and fixed installations.
KEY FEATURES
- 2 x 15" LF driver with 3" VC
- 1" Compression Driver with 1.75" VC
- Class-D Bi-amplification
- 3600W peak / 900W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- M8 Rigging Points
APPLICATION
SBT Wireless Technology with True Wireless Pairing
Sound Barrier Technology (sBT) allows compatible playback devices to transmit audio wirelessly for convenient, cable-free operation. The True Wireless Stereo (TWS) function links two speakers together for true stereo sound with separate left and right channels.

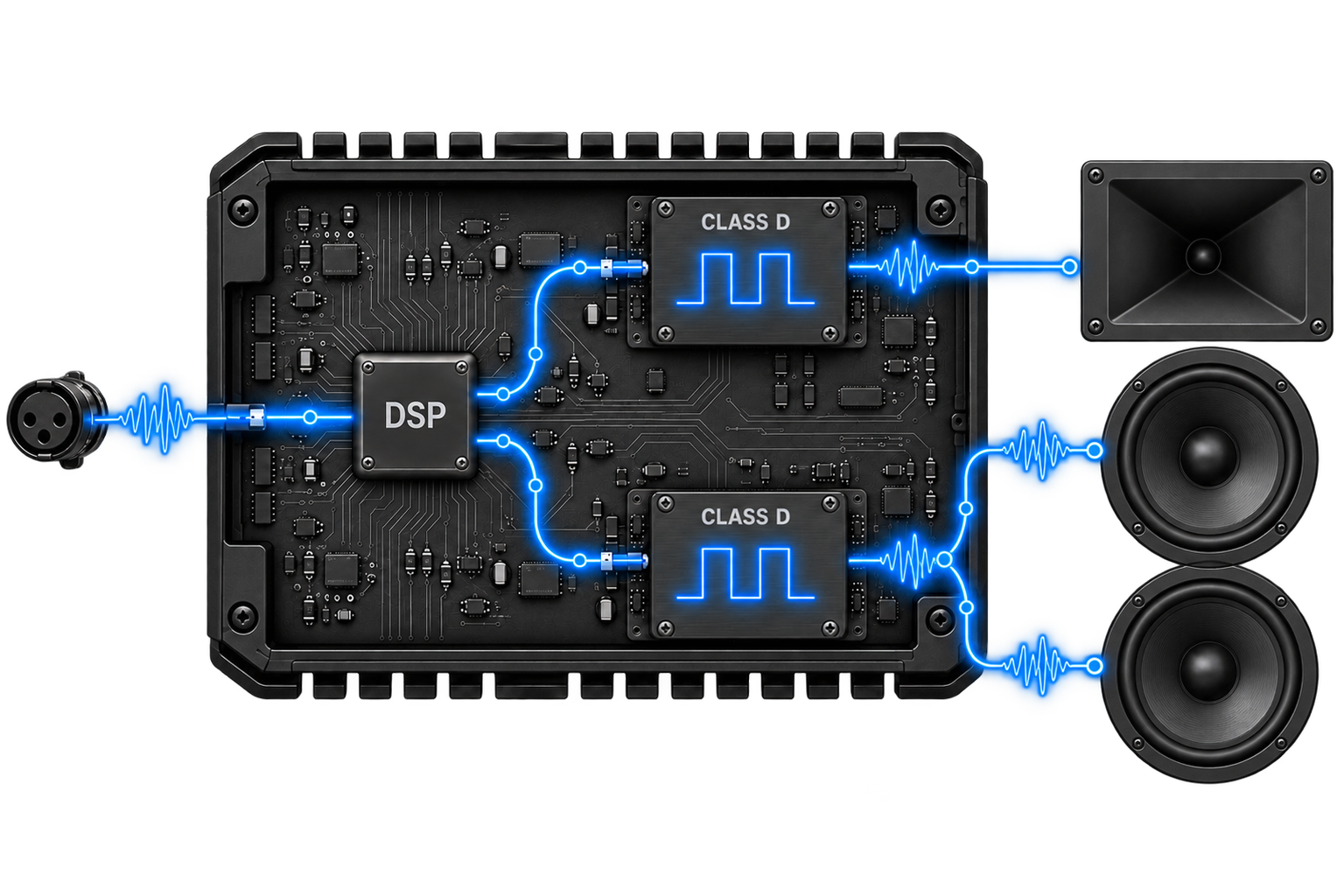

Class-D Bi-Amp Power
The efficient Class-D bi-amplified power section delivers 3600W peak while helping reduce heat and system weight. Separate amplification for the low- and high-frequency sections supports powerful low-frequency output, strong midrange presence, and clear high-frequency detail in demanding high-output applications.

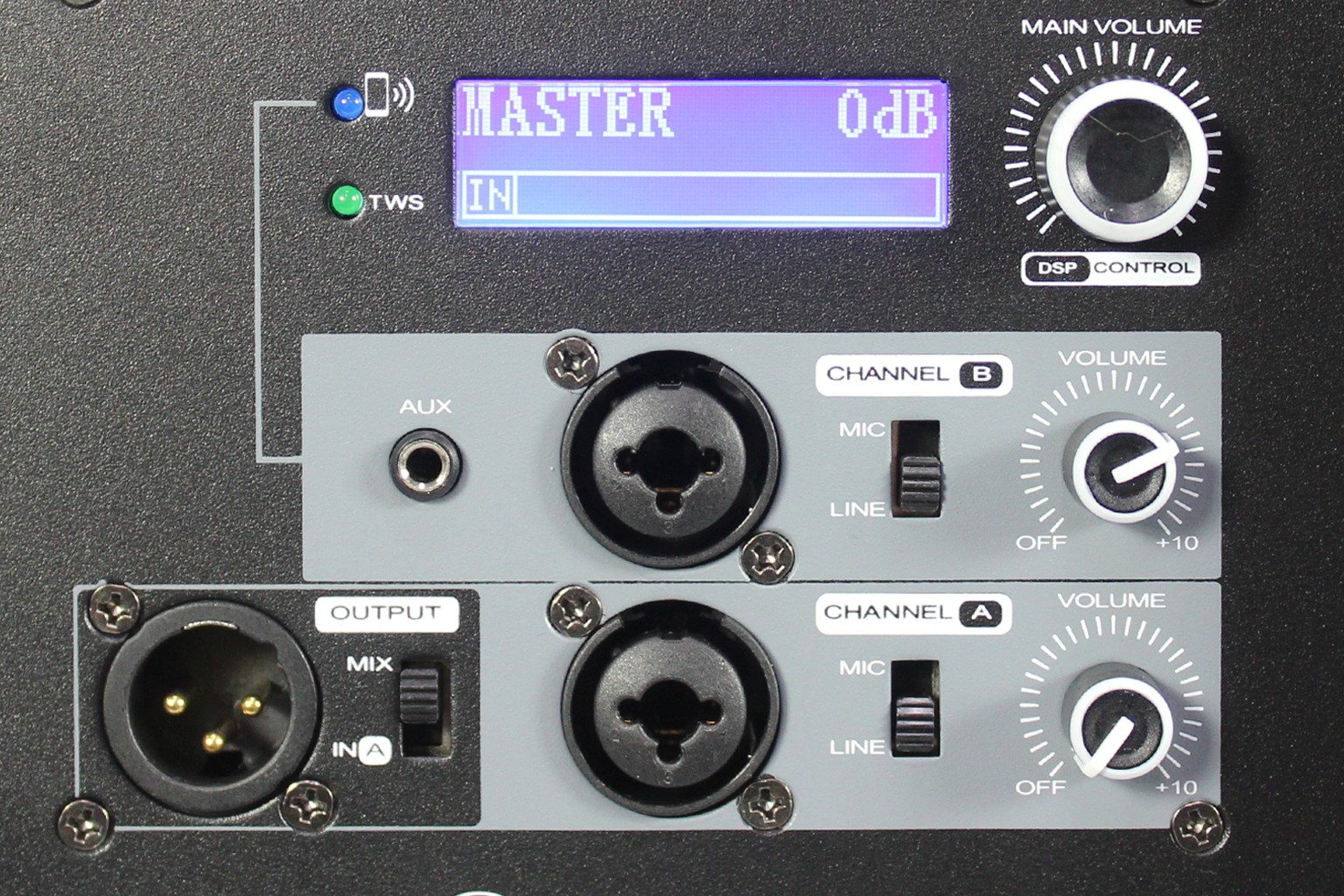

Advanced DSP Control & Flexible Connectivity
The onboard LCD and main volume/DSP control provide direct access to Music, Flat, Speech, and Club presets, adjustable Treble, Mid, and Bass EQ, selectable 80, 100, 120, or 150 Hz Sub LF Cutoff settings, delay alignment, sBT and TWS functions, and display settings.
Two combo XLR/1/4-inch inputs accept microphone- or line-level sources, with independent Channel A and Channel B level controls for precise balancing. A 3.5 mm auxiliary input accommodates additional playback devices, while the balanced XLR output can send either Channel A or the complete mix to another loudspeaker or audio device.

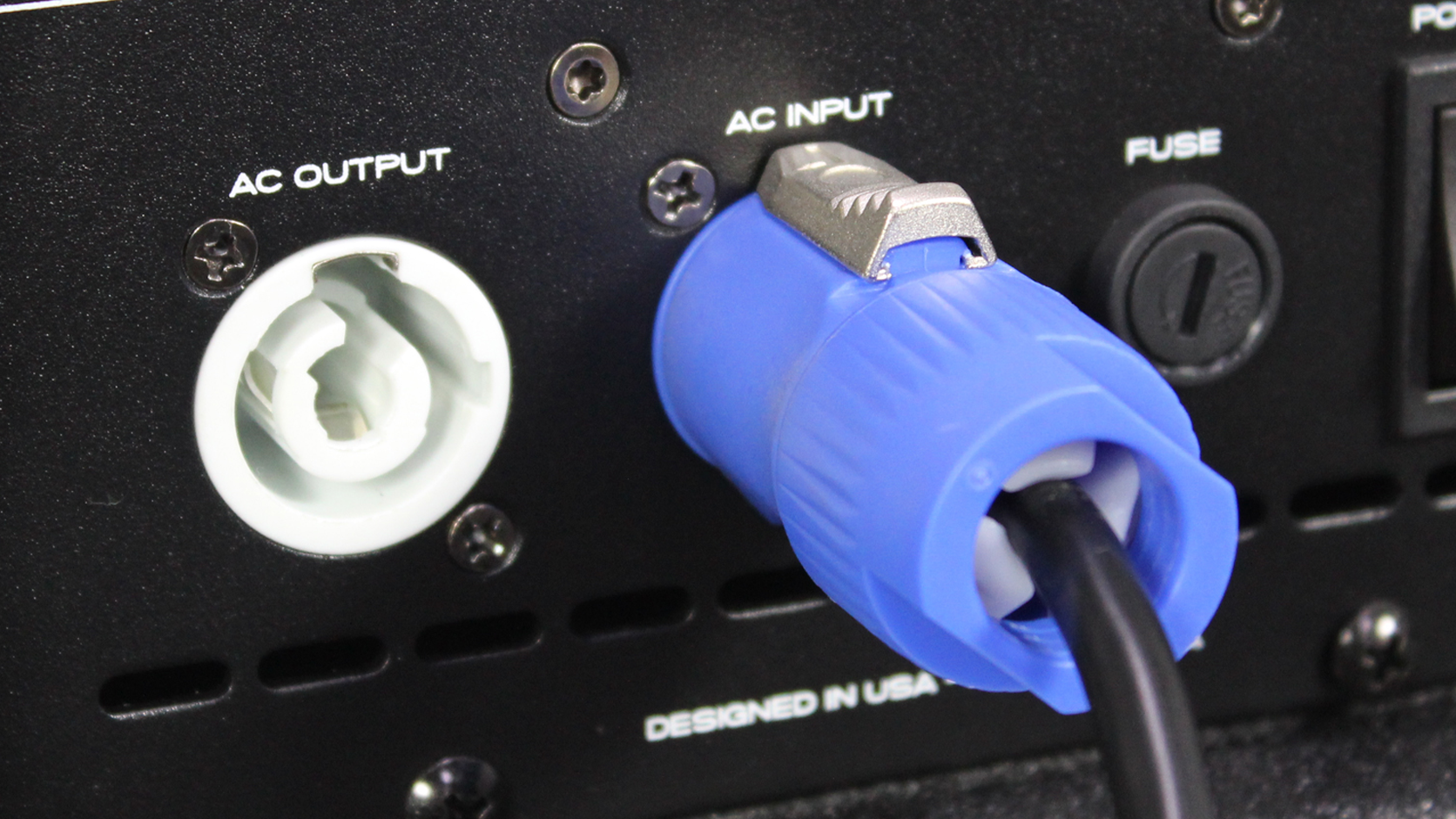

Secure Locking Power Connection
Keep your system powered securely with a locking PowerCON-type power connection, designed to reduce the risk of accidental disconnection. This professional-grade feature is ideal for both portable setups and the demands of touring and live events.
Specifications
Acoustic Specifications
- System Type:
- 2-way, Full Range, Active, Bi-amplified
- Frequency Response:
- 45Hz–20kHz
- Max SPL:
- 132 dB @ 1 meter
- Nominal Coverage:
- 110° horizontal, 100° vertical
- System Impedance:
- 4 Ohm
Transducers
- Low-Frequency Driver:
- 2 × 15" Woofer with 3" VC
- High-Frequency Driver:
- 1 × 1" Exit Compression Driver with 1.75" VC
Power Section
- Total Amplifier Power:
- 3600W peak / 900W RMS
- Amplifier Type:
- Class-D, Bi-amp
- Cooling:
- Internal heatsink + Fan

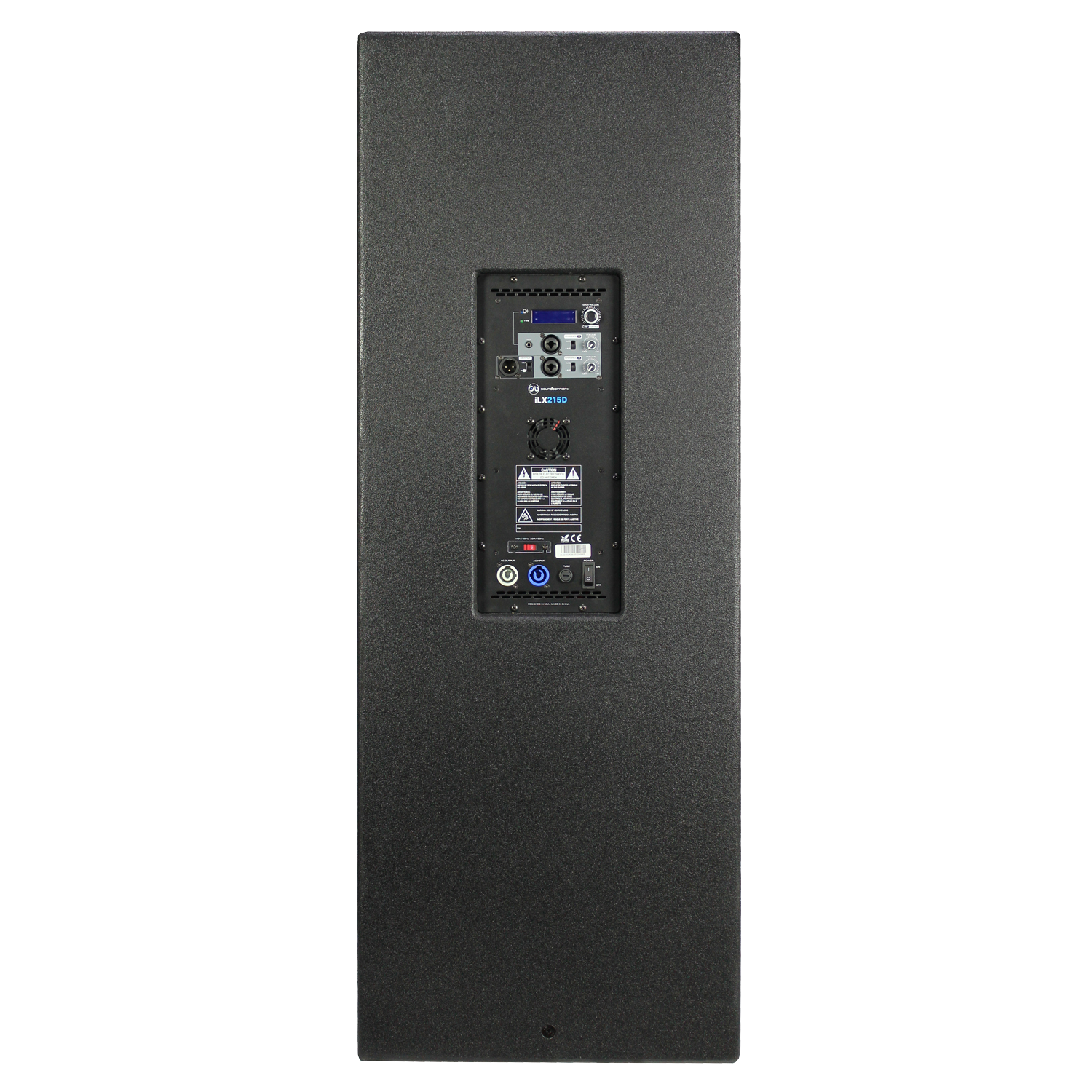

Input / Output Section
- Input Channels:
- 2 × XLR and ¼-inch combo jacks with MIC / Line switch
- AUX Input:
- 1 × 3.5mm jack
- Output Connectors:
- Balanced XLR output with CH A/MIX selector
- Wireless Audio:
- sBT Wireless with TWS (Truess Wireless Stereo)
Processor & Controls
- User Interface:
- LCD display with main volume/DSP rotary control
- DSP Presets:
- Music / Flat / Speech / Club
- User EQ:
- Treble, Mid, and Bass
- Sub LF Cutoff:
- 80, 100, 120, or 150 Hz
- Alignment:
- Adjustable delay
- Wireless Controls:
- sBT and TWS configuration
- Display Controls:
- LCD dimming, brightness, and contrast
- Input Controls:
- Independent CH A level control Shared CH B / sBT / AUX level control Main (Master) level control
- Protection:
- DSP Digital Limiting
- LED Indicators:
- sBT Wireless Indicator TWS (True Wireless Stereo Indicator)
Power Requirements
- Operational Voltage:
- Universal 100V to 240V AC, 50/60 Hz
- Power Connection:
- Locking powerCON-type AC Input Locking powerCON-type AC Output PowerCON-to-Edison AC cable included

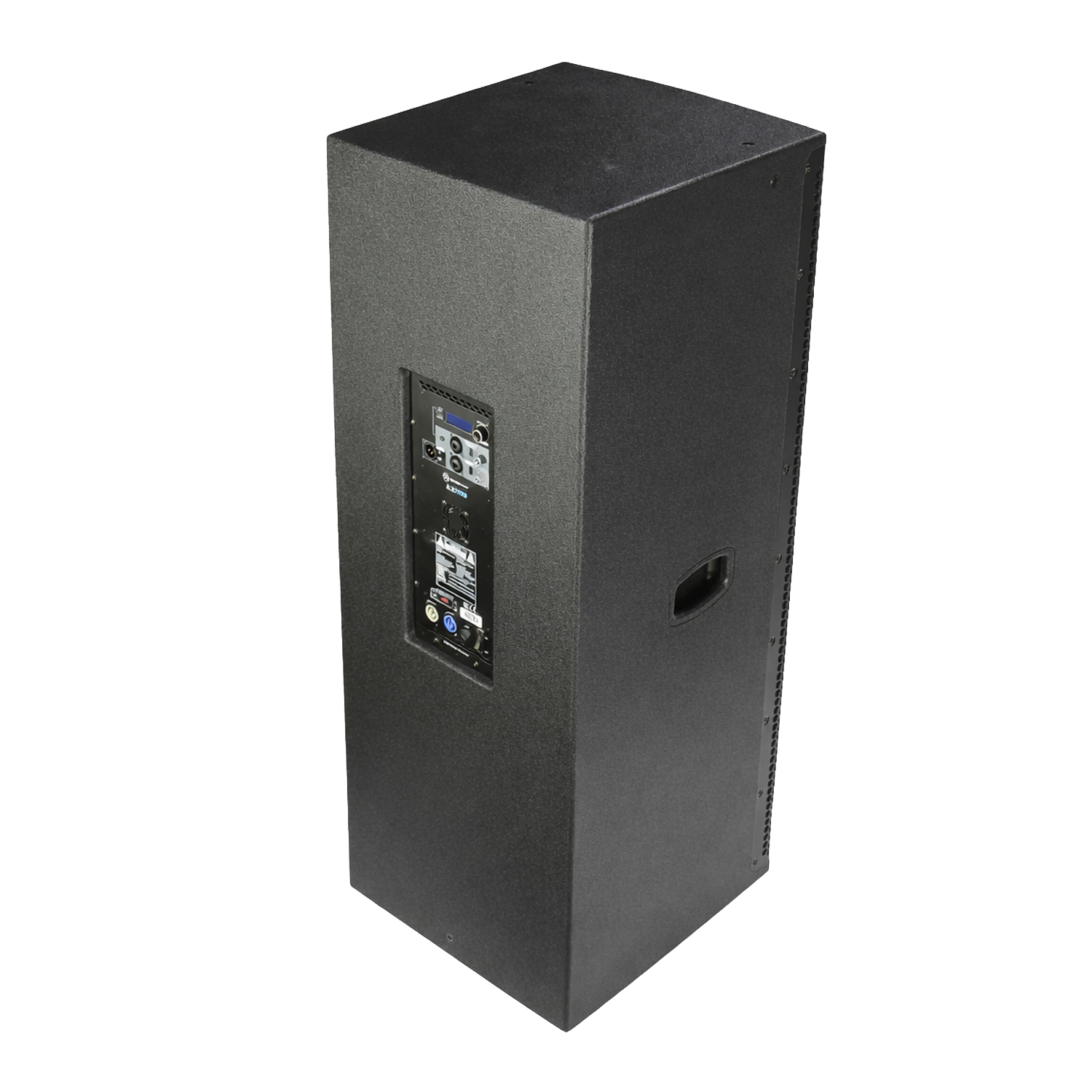

Construction
- Cabinet Material:
- MDF
- Cabinet Finish:
- Durable sand-textured coating
- Color:
- Black
- Grille:
- Steel with Anti-Corrosion Coating & Acoustic Cloth Backing
- Enclosure Design:
- Multi-angle for upright or floor-monitor use
- Rigging:
- 35mm Pole Mount Socket M8 Rigging Points

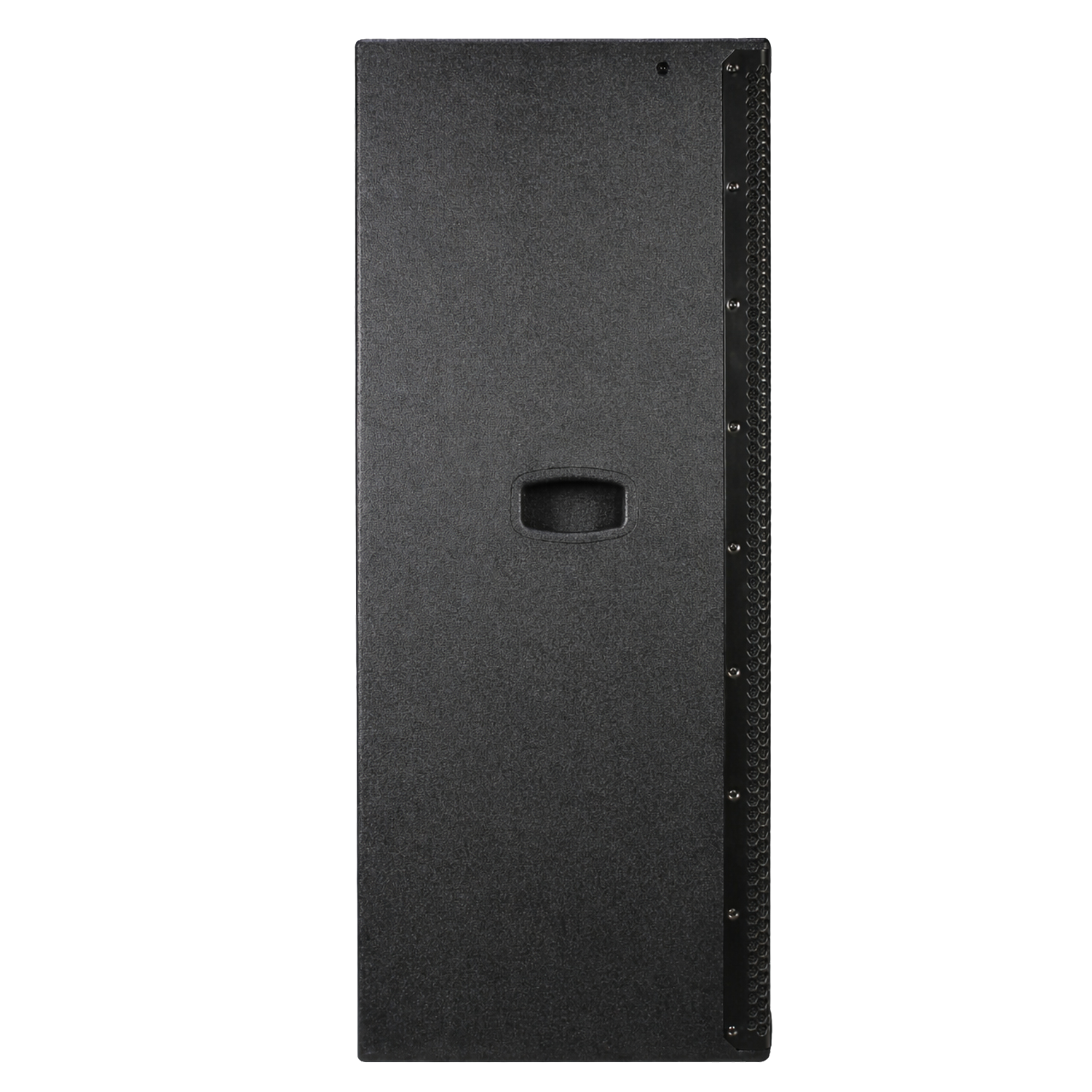

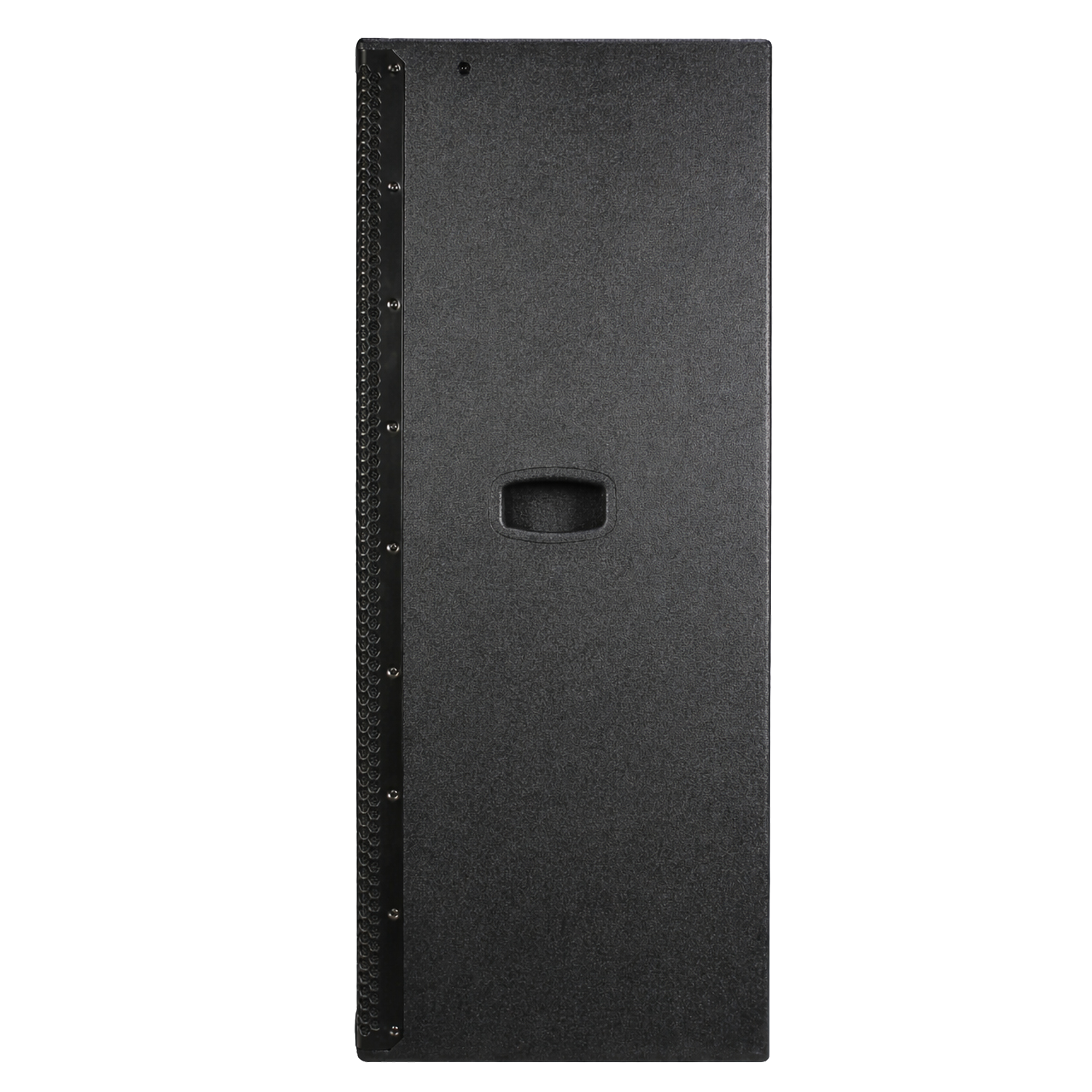

- Handles:
- 2 x Side Wood Recessed Handles
- Feet:
- Nonslip rubber feet
Dimensions
- Dimensions (H × W × D):
- 13.8 × 23.6 × 14.2 in (350 × 600 × 360 mm)
- Weight:
- 106 lb (48 kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration.
