PCS1500

2-Channel Analog Power Amplifier, 900W @ 4Ω

2 × 450W at 4Ω
Stable operation down to 2Ω per channel
Up to 1 × 1400W at 4Ω in bridge mode
Stereo, Parallel, and Bridge Operating Modes
Selectable Input Sensitivity
Internal Heat Sinks & Variable Speed Fan
Comprehensive Protection Circuitry

Where to Buy

Overview

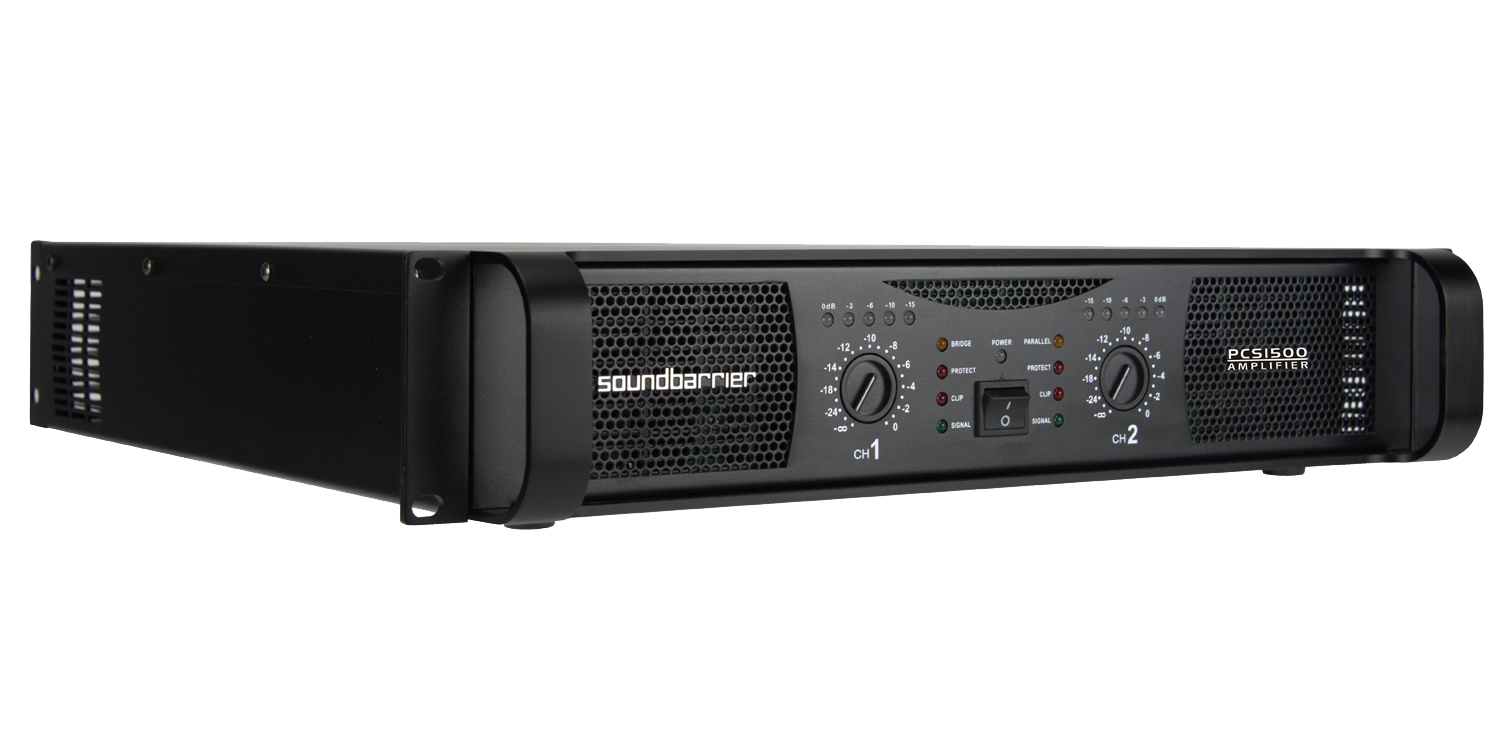

The Sound Barrier PCS1500 is a professional two-channel analog power amplifier designed to deliver reliable performance for permanent installations, portable PA systems, houses of worship, cinemas, and live sound applications. Its compact 2U rackmount chassis combines proven Class H amplification with flexible operating modes and the rugged construction required for demanding day-to-day use.

The PCS1500 delivers 800W per channel at 2Ω, 450W per channel at 4Ω, and 310W per channel at 8Ω. For applications requiring additional output from a single channel, Bridge mode provides up to 1400W at 4Ω or 900W at 8Ω. A damping factor greater than 400:1 supports precise loudspeaker control, while selectable 0.77V, 1.0V, and 1.44V input sensitivity settings simplify integration with a wide range of mixers, processors, and system controllers.

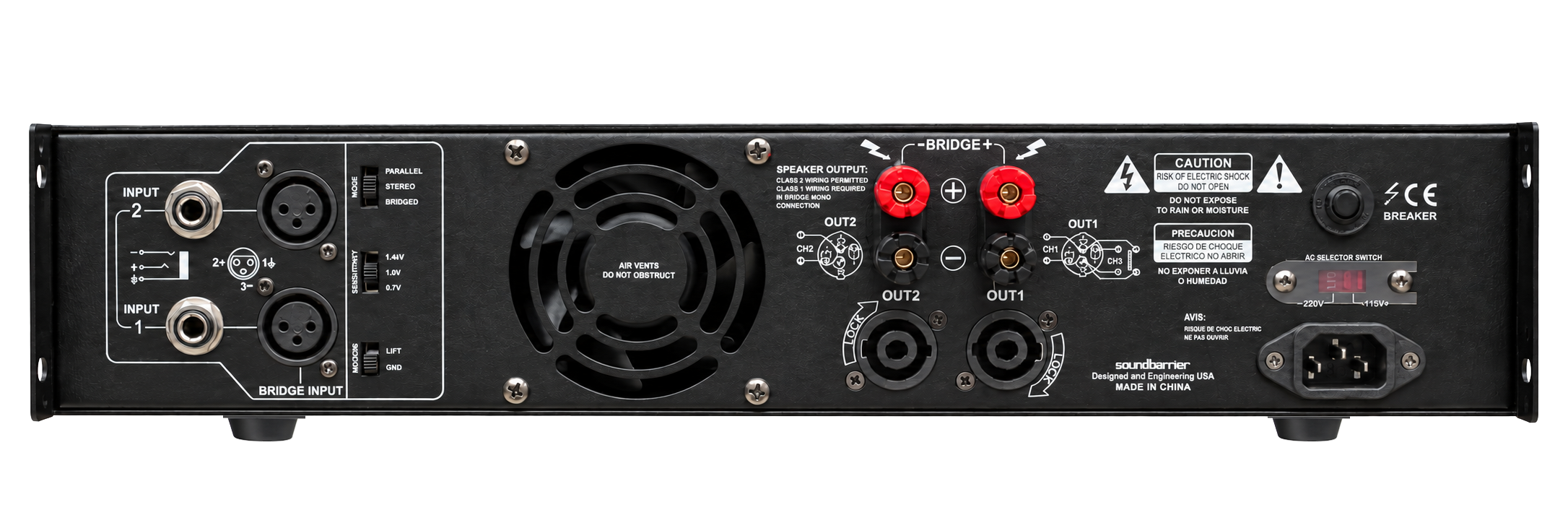

Balanced XLR and 1/4-inch TRS inputs are provided for each channel, with NL4 speaker connectors and binding posts for flexible loudspeaker connection. Stereo, Parallel, and Bridge operating modes allow the amplifier to adapt to different system configurations. Independent front-panel level controls, clear status indicators, variable-speed cooling fan, and extensive protection circuitry help maintain dependable operation in both installed and portable systems.

KEY FEATURES

2 × 450W at 4Ω
Stable operation down to 2Ω per channel
Up to 1 × 1400W at 4Ω in bridge mode
Stereo, Parallel, and Bridge Operating Modes
Selectable Input Sensitivity
Internal Heat Sinks & Variable Speed Fan
Comprehensive Protection Circuitry

Class H Dynamic Power

The PCS series' proven Class H analog architecture dynamically shifts between multiple power-supply rails, supplying additional voltage and current when the music demands it. This provides the headroom needed to reproduce sudden peaks with speed, impact, and control while improving efficiency and reducing unnecessary heat. The result is powerful low-frequency response, clear transients, and the full, natural sound that has made the PCS Series a trusted choice among audio professionals for more than two decades.

3 Year Warranty

Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected

Specifications

Output Power

2Ω Stereo:: 2 x 800W

4Ω Stereo:: 2 x 450W

8Ω Stereo:: 2 x 310W

4Ω Bridge / Parallel:: 1 x 1400W

8Ω Bridge / Parallel:: 1 x 900W

Amplifier Specifications

Output Channels:: 2

Topology:: Analog - Class H

Operating Modes:: Stereo / Parallel / Bridge

Intermodulation Distrortion:: 60Hz & 7kHz @ 4:1; LESS THAN 0.04%

Minimum Load:: Stereo / Parallel: 2Ω

Frequency Response:: 15Hz-25kHz, ±0.25dB

THD+N:: Typical 0.03%

Damping Factor:: >400:1

Slew Rate:: 40V / us INPUT

Input Impedance:: 10kΩ unbalanced to Ground

Input Sensitivity:: 0.77V / 1.0V / 1.44V Selectable

Input / Output Section

Input Connectors:: 2 x Balanced XLR 2 x ¼-inch TRS

Output Connectors:: 2 x NL4 Type 2 x Binding Post

Power Requirements

Nominal AC Input:: 115V/230V switchabl

Power Supply:: High-current Linear Power Supply

Standby Power:: N/A

Cooling & Protection

Cooling:: Internal Heat Sinks with Variable Speed Fan

Protection Circuits:: Short Circuit, Open / Mismatched Loads, Power Supply Overload, Excessive Temperature, Subsonic Phenomena, Ultrasonic Phenomena, DC Transients, and Soft Starts

Construction

Rack Space:: 2U

Dimensions (W x H x D):: 19 × 3.5 × 17.7 in (482 × 88 × 450 mm)

Net Weight:: 36 lb (16 kg)

Warranty

3-Year Warranty:: 3-Year Warranty with Product Registration
