PCS3400

2-Channel Analog Power Amplifier, 2700W @ 4Ω

  • 2 × 1350W at 4Ω
  • Stable operation down to 2Ω per channel
  • Up to 1 × 2900W at 4Ω in bridge mode
  • Stereo, Parallel, and Bridge Operating Modes
  • Selectable Input Sensitivity
  • Switchable built-in compressor
  • Internal Heat Sinks & Variable Speed Fan
  • Comprehensive Protection Circuitry
Where to Buy
PCS3500_Front

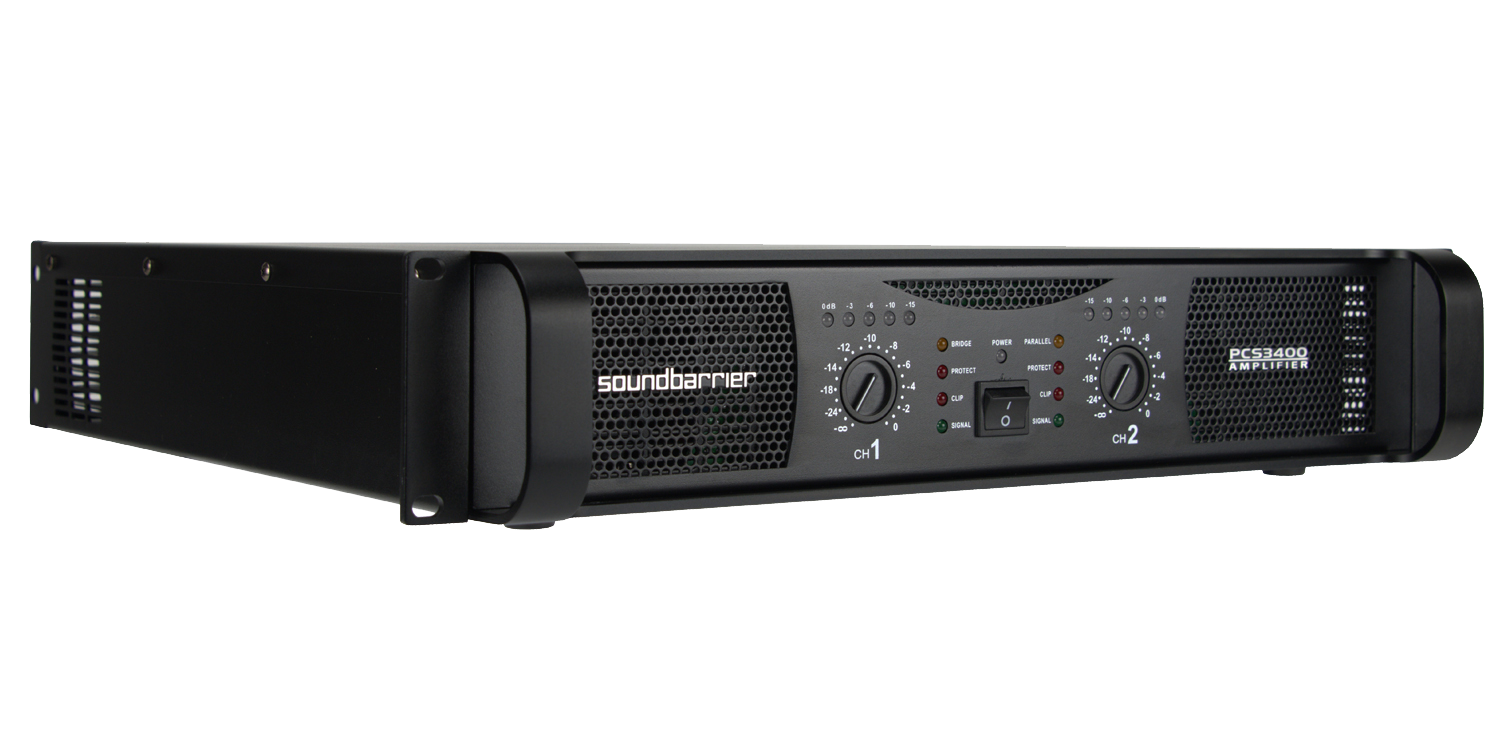

PCS3400_Front_Side

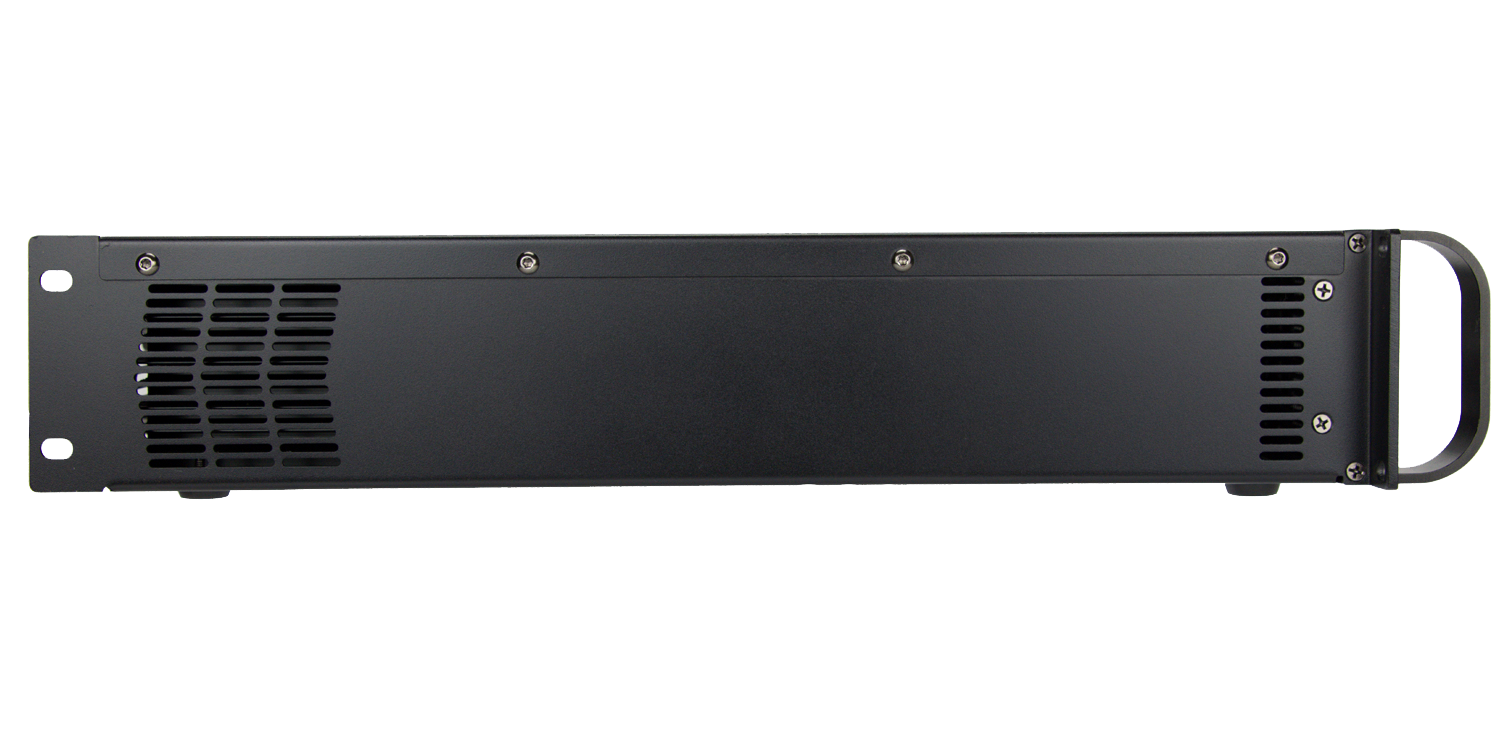

PCS3400_Side

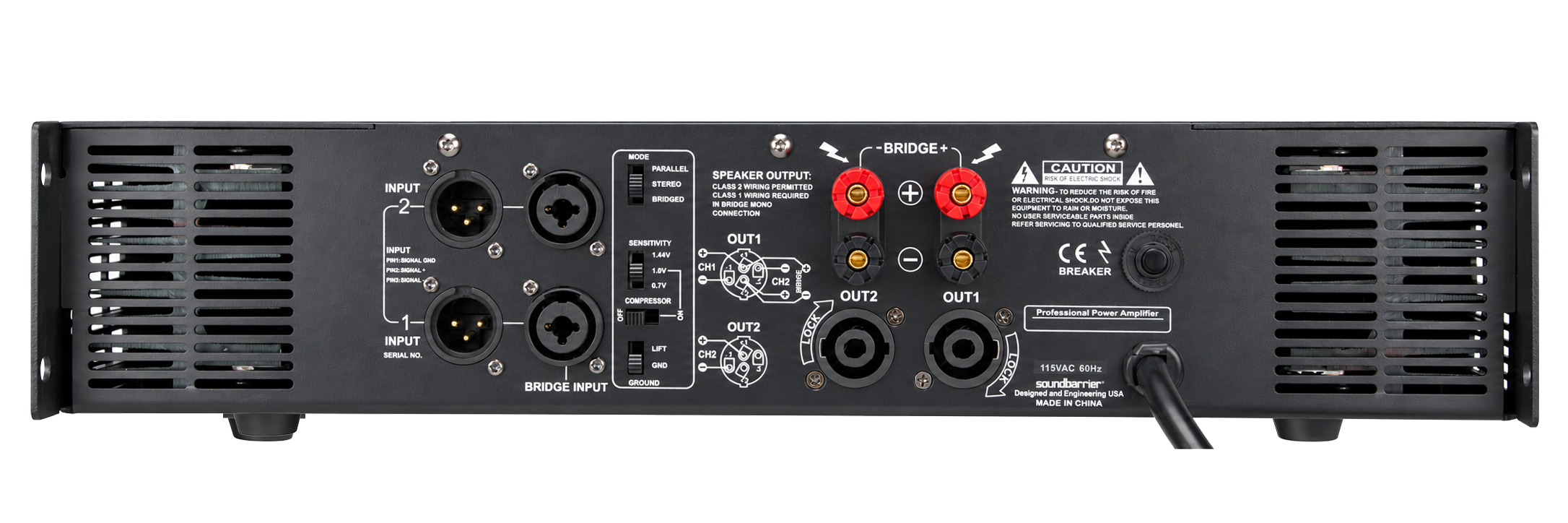

PCS2500_PCS3400_Rear

Overview

The Sound Barrier PCS3400 is a professional two-channel analog power amplifier designed for permanent installations, cinema systems, and touring sound. Its Class H circuitry delivers 1,350W per channel at 4Ω and supports stable operation down to 2Ω per channel.

Stereo, Parallel, and Bridge modes support different system configurations. A rear-panel Compressor switch engages or bypasses the built-in compressor. When engaged, it helps manage signal peaks and operates only when Input Sensitivity is set to 1.0V.

Balanced inputs, selectable input sensitivity, and front-panel channel level controls support straightforward system integration. Internal heatsinks and a variable-speed fan provide cooling, while built-in protection circuits help safeguard the amplifier during demanding use.

KEY FEATURES

  • 2 × 1350W at 4Ω
  • Stable operation down to 2Ω per channel
  • Up to 1 × 2900W at 4Ω in bridge mode
  • Stereo, Parallel, and Bridge Operating Modes
  • Selectable Input Sensitivity
  • Switchable built-in compressor
  • Internal Heat Sinks & Variable Speed Fan
  • Comprehensive Protection Circuitry

Class H Dynamic Power

The PCS series' proven Class H analog architecture dynamically shifts between multiple power-supply rails, supplying additional voltage and current when the music demands it. This provides the headroom needed to reproduce sudden peaks with speed, impact, and control while improving efficiency and reducing unnecessary heat. The result is powerful low-frequency response, clear transients, and the full, natural sound that has made the PCS Series a trusted choice among audio professionals for more than two decades.

Class H Dynamic Power

3 Year Warranty

Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected

3 Year Warranty

Specifications

Output Power

2Ω Stereo:
2 x 1800W
4Ω Stereo:
2 x 1350W
8Ω Stereo:
2 x 800W
4Ω Bridge / Parallel:
1 x 2900W
8Ω Bridge / Parallel:
1 x 2300W

Amplifier Specifications

Output Channels:
2
Topology:
Analog - Class H
Operating Modes:
Stereo / Parallel / Bridge
Compressor:
Rear-panel ON/OFF selector; operates only with Input Sensitivity set to 1.0V; OFF bypasses the compressor
Intermodulation Distrortion:
60Hz & 7kHz @ 4:1; LESS THAN 0.04%
Minimum Load:
Stereo / Parallel: 2Ω; Bridge: 4Ω
Frequency Response:
15Hz-25kHz, ±0.25dB
THD+N:
Typical 0.03%
Damping Factor:
>400:1
Slew Rate:
40V / us INPUT
Input Impedance:
10kΩ unbalanced to Ground
Input Sensitivity:
0.77V / 1.0V / 1.44V Selectable

Input / Output Section

Input Connectors:
2 x Balanced XLR 2 x XLR and ¼-inch Combo
Output Connectors:
2 x NL4 Type 2 x Binding Post

Power Requirements

Nominal AC Input:
115V/60Hz; (220V/50Hz Available Upon Request)
Power Supply:
High-current Linear Power Supply
Standby Power:
N/A

Cooling & Protection

Cooling:
Internal Heat Sinks with Variable Speed Fan
Protection Circuits:
Short Circuit, Open / Mismatched Loads, Power Supply Overload, Excessive Temperature, Subsonic Phenomena, Ultrasonic Phenomena, DC Transients, and Soft Starts

Construction

Rack Space:
2U
Dimensions (W x H x D):
19 × 3.5 × 17.7 in (482 × 88 × 450 mm)
Net Weight:
57 lb (26 kg)

Warranty

3-Year Warranty:
3-Year Warranty with Product Registration
