SiLO 10D

10″ Active Two-Way Full-Range Loudspeaker with sBT, TWS, and DSP Presets

  • 10" LF driver with 2" VC
  • 1" Compression Driver with 1.35" VC
  • Class-D Bi-amplification
  • 800W peak / 200W RMS
  • sBT Wireless Audio with TWS Pairing
  • Integrated DSP with Application Presets
  • powerCON-type AC input and output
  • 35mm Pole mount
  • M8 Rigging Points
Where to Buy
iLX10 front

Overview

The Sound Barrier SiLO 10D is a compact, active two-way loudspeaker for mobile DJs, live performances, presentations, houses of worship, and other portable sound applications. Its 10-inch woofer and 1-inch compression driver are powered by a Class D bi-amplifier rated at 200W RMS and 800W peak, delivering a 55 Hz–20 kHz frequency response and up to 122 dB maximum SPL.

Connect microphones or line-level sources through the two combo inputs, each with its own Mic/Line switch and level control. The 3.5 mm auxiliary input and SBT wireless audio provide additional playback options. With two compatible speakers, TWS can create a wireless stereo pair. Four DSP presets—Music, Flat, Speech, and Club—make it easy to select a response for the application. An XLR output, locking power connections, M8 flying points, and a 35 mm pole mount support flexible setup and system connection.

KEY FEATURES

  • 10" LF driver with 2" VC
  • 1" Compression Driver with 1.35" VC
  • Class-D Bi-amplification
  • 800W peak / 200W RMS
  • sBT Wireless Audio with TWS Pairing
  • Integrated DSP with Application Presets
  • powerCON-type AC input and output
  • 35mm Pole mount
  • M8 Rigging Points

APPLICATION

Live Performance & EventsPortable PA / Mobile DJsInstallation & CommercialHouses of WorshipCorporate / AV Presentations

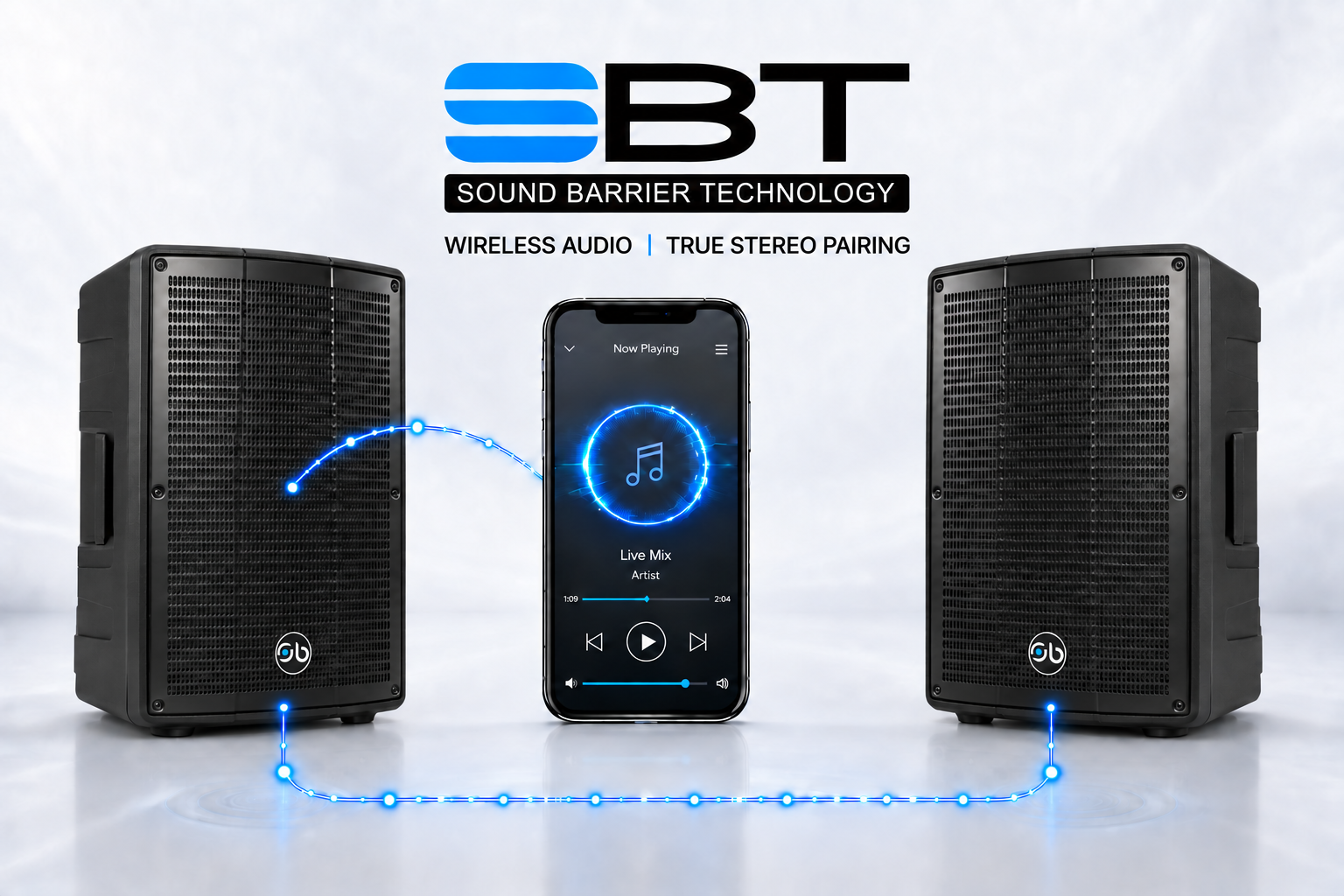

SBT Wireless Technology with True Wireless Pairing

Sound Barrier Technology (sBT) allows compatible playback devices to transmit audio wirelessly for convenient, cable-free operation. The True Wireless Stereo (TWS) function links two speakers together for true stereo sound with separate left and right channels.

SBT with TWS

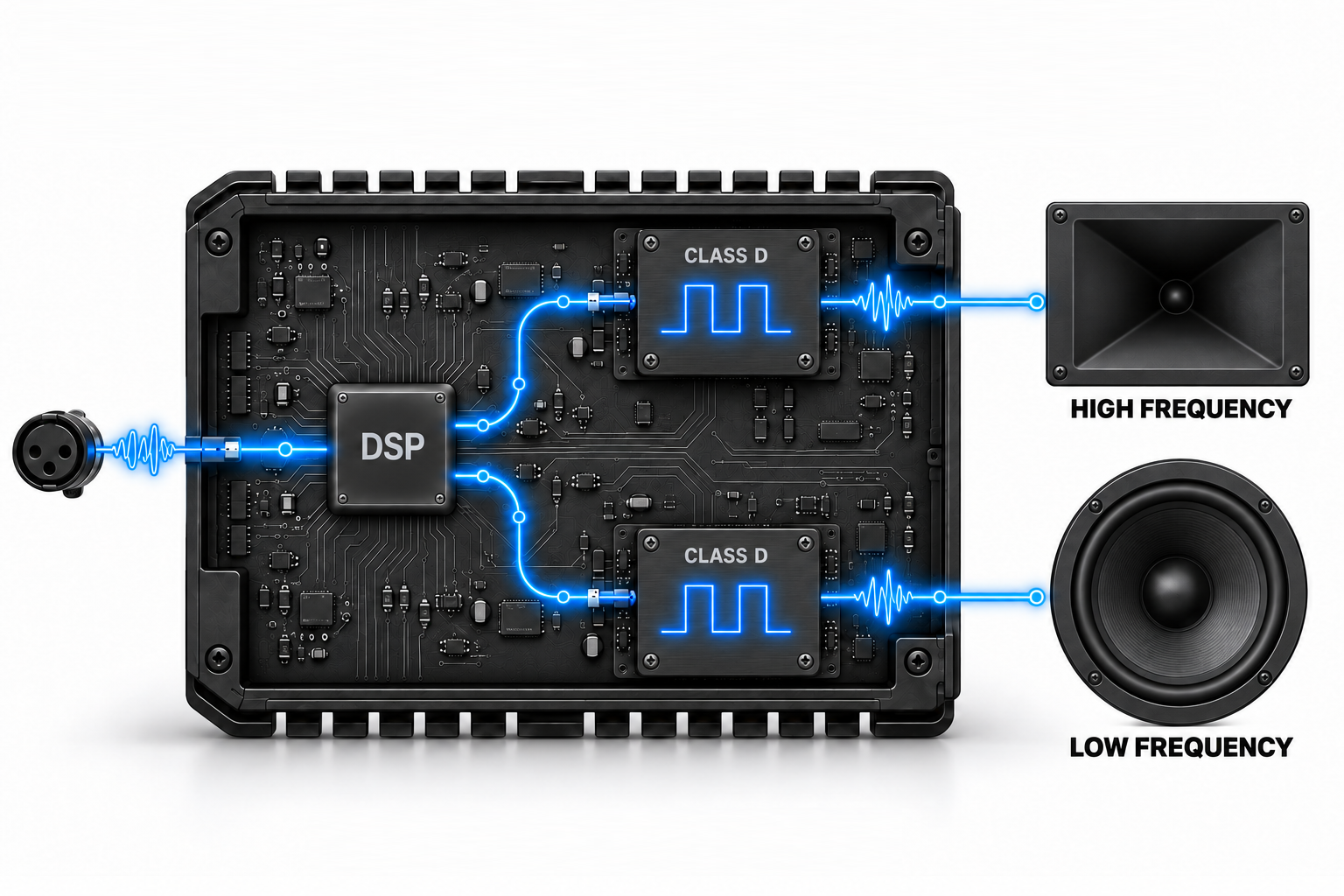

Class-D Bi-Amp Power

A Class-D bi-amplified power system drives the low- and high-frequency sections independently for efficient, controlled performance. Dedicated amplifiers power the 8-inch woofer and 1-inch-exit compression driver, producing clear full-range reproduction and up to 124 dB maximum SPL from a remarkably compact enclosure.

Class-D Bi-Amp Power

Flexible DSP, Inputs, and Controls

Choose Music, Flat, Speech, or Club mode to adapt the speaker’s response to the application. Two combo XLR/¼″ inputs accept microphone- or line-level sources, with independent Mic/Line switches and channel level controls. A 3.5 mm auxiliary input supports additional playback devices, and the XLR output connects to another audio device or loudspeaker.

Powerful Control. Flexible Connectivity.

Secure Locking Power Connection

Keep your system powered securely with a locking PowerCON-type power connection, designed to reduce the risk of accidental disconnection. This professional-grade feature is ideal for both portable setups and the demands of touring and live events.

iLX8 professional connectivity

3 Year Warranty

Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.

3 Year Warranty

Specifications

Acoustic Specifications

System Type:
2-way, Full Range, Active, Bi-amplified
Frequency Response:
55Hz–20kHz
Max SPL:
122 dB @ 1 meter
Nominal Coverage:
65° horizontal, 70° vertical
System Impedance:
4 Ohm

Transducers

Low-Frequency Driver:
1 × 10" Woofer with 2" VC
High-Frequency Driver:
1 × 1" Exit Compression Driver with 1.35" VC

Power Section

Total Amplifier Power:
800W peak / 200W RMS
Amplifier Type:
Class-D, Bi-amp
Cooling:
Internal Convection + Fan

Input / Output Section

MIC / LINE Input Channels:
2
Input Connectors:
2 × XLR and ¼-inch combo jacks
AUX Input:
1 × 3.5mm jack
Output Connectors:
1 × XLR
Input Controls:
Main Volume Rotary Knob Ch. A and B Rotary Knobs Ch. A and B MIC / Line Selector Button
Wireless Audio:
sBT Wireless with TWS (Truess Wireless Stereo)

Processor & Controls

DSP Presets::
Music / Flat / Speech / Club
Input Controls:
Independent CH A level control Shared CH B / sBT / AUX level control Main (Master) level control
MIC / Line Selection:
Independent switch for each input channel
Wireless Controls:
PAIR and TWS buttons
Protection:
DSP Digital Limiting
Status Indicators:
Limit / Clip LED Indicator DSP Preset Indicators sBT Wireless Indicator TWS (True Wireless Stereo Indicator)

Power Requirements

Operational Voltage:
Universal 100V to 240V AC, 50/60 Hz
Power Connection:
Locking powerCON-type AC Input Locking powerCON-type AC Output PowerCON-to-Edison AC cable included

Construction

Cabinet Material:
ABS
Cabinet Finish:
Durable sand-textured coating
Color:
Black
Grille:
Steel with Anti-Corrosion Coating & Acoustic Cloth Backing
Rigging:
35mm Pole Mount Socket M8 Rigging Points
Handles:
2 x Side Handles
Feet:
Nonslip rubber feet

Dimensions

Dimensions (H × W × D):
19.5 × 12.25 × 11 in (495 × 311 × 279 mm)
Weight:
41 lb (19 kg)

Warranty

3-Year Warranty:
3-Year Warranty with Product Registration.
