Loudspeakers
SiLO 12D
12-Inch Active Two-Way Loudspeaker with Advanced DSP, LCD Control, and sBT Wireless with TWS Pairing
- 12" LF driver with 2" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1000W peak / 250W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- 35mm Pole mount
- M8 Rigging Points
Overview
The Sound Barrier SiLO 12D is a 12-inch active two-way loudspeaker designed for portable PA systems and installed sound. Its Class-D bi-amplified design pairs a 12-inch low-frequency driver with a high-frequency compression driver to deliver full-range sound for music and speech.
The onboard LCD and DSP controls provide four selectable modes, three-band EQ, subwoofer LF cutoff settings, and delay alignment. Two combo inputs, a 3.5 mm auxiliary input, and an XLR output support a range of sources and system configurations. SBT wireless audio with True Wireless Stereo (TWS) supports wireless playback and stereo pairing between compatible speakers.
KEY FEATURES
- 12" LF driver with 2" VC
- 1" Compression Driver with 1.35" VC
- Class-D Bi-amplification
- 1000W peak / 250W RMS
- sBT Wireless Audio with TWS Pairing
- Advanced DSP with LCD interface
- powerCON-type AC input and output
- 35mm Pole mount
- M8 Rigging Points
APPLICATION

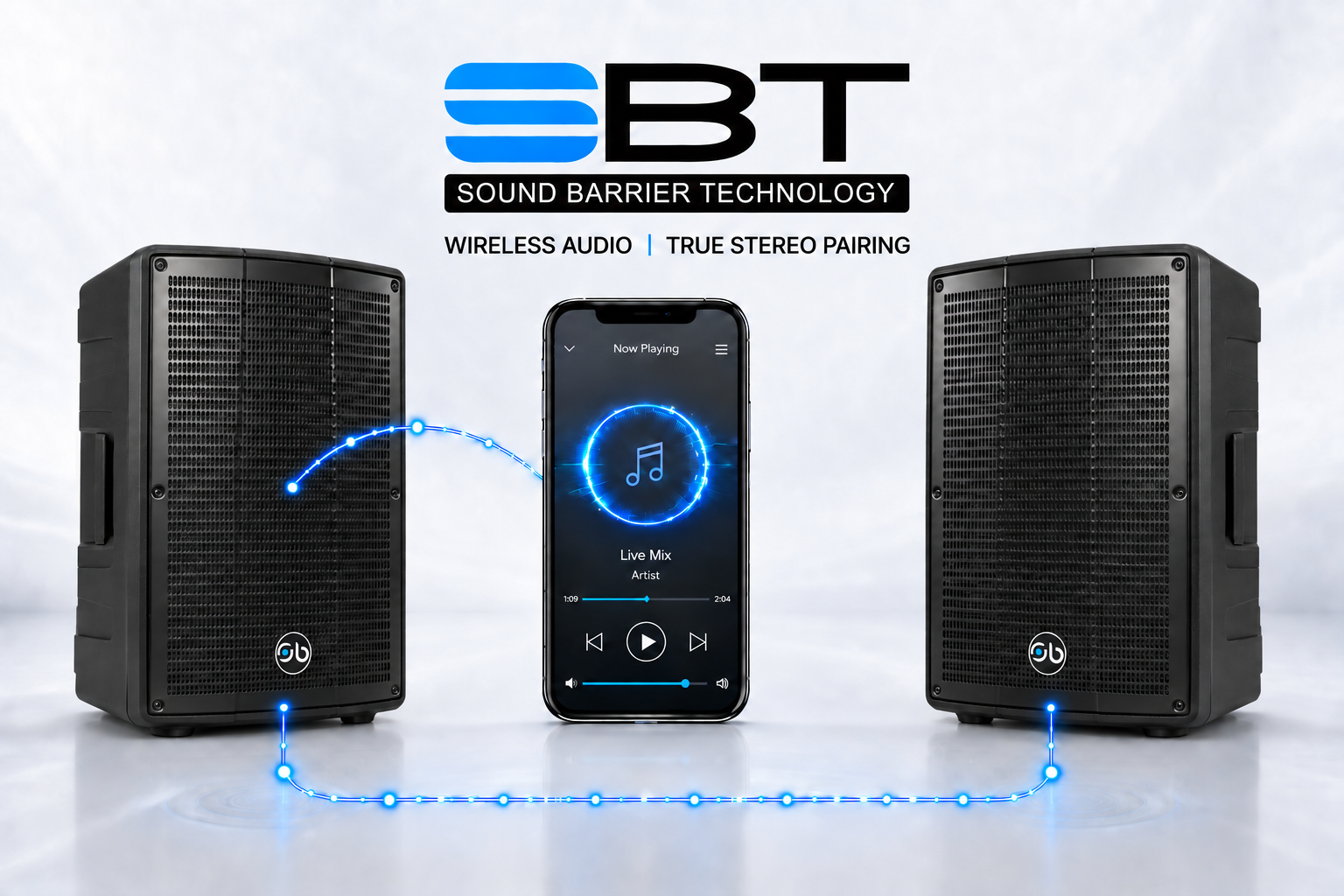

SBT Wireless Technology with True Wireless Pairing
Sound Barrier Technology (sBT) allows compatible playback devices to transmit audio wirelessly for convenient, cable-free operation. The True Wireless Stereo (TWS) function links two speakers together for true stereo sound with separate left and right channels.

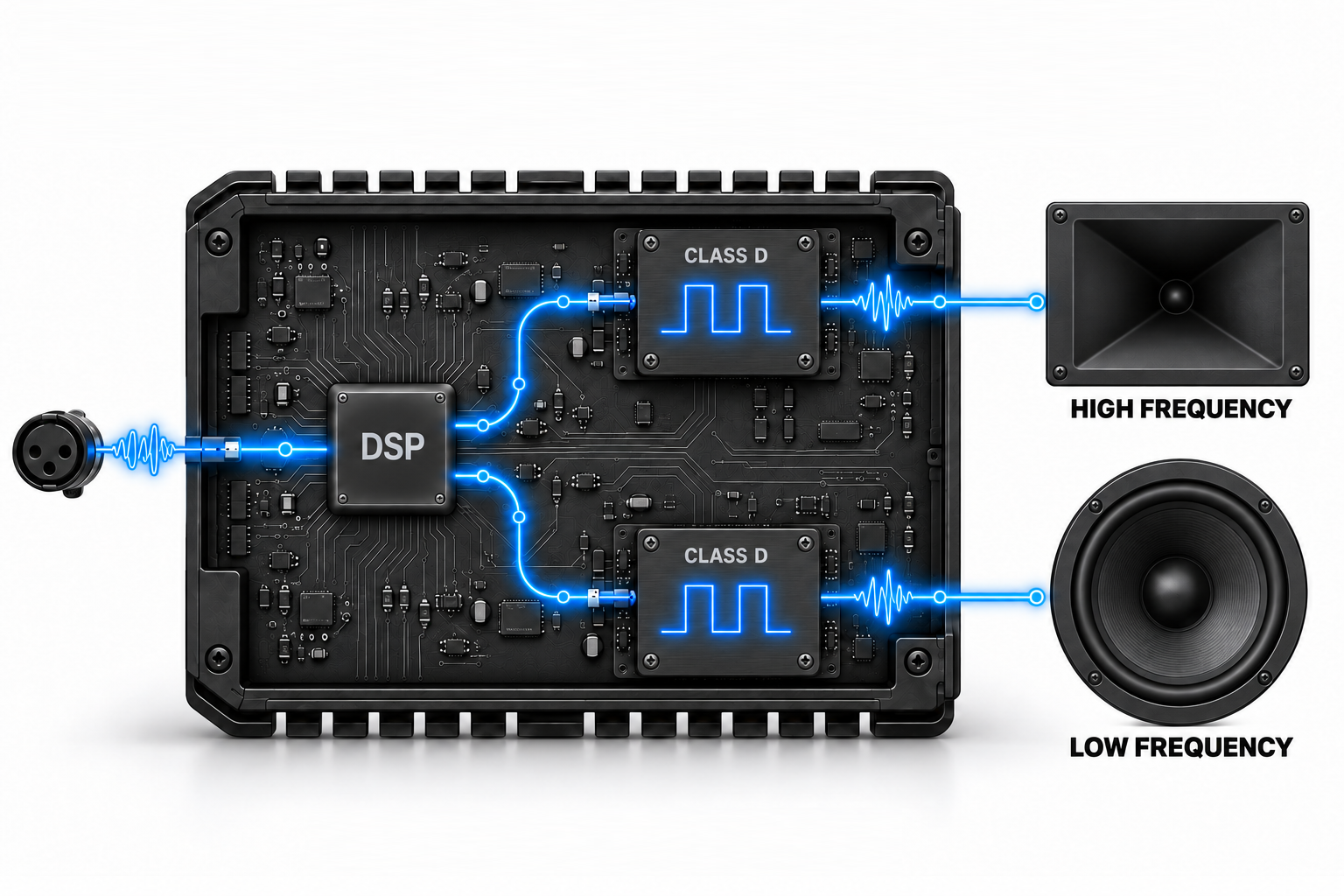

Class-D Bi-Amp Power
The SiLO 12D uses Class-D bi-amplification to power its low- and high-frequency drivers. The 12-inch woofer supports strong low-frequency output, while the compression driver delivers clear high-frequency detail for music and speech.

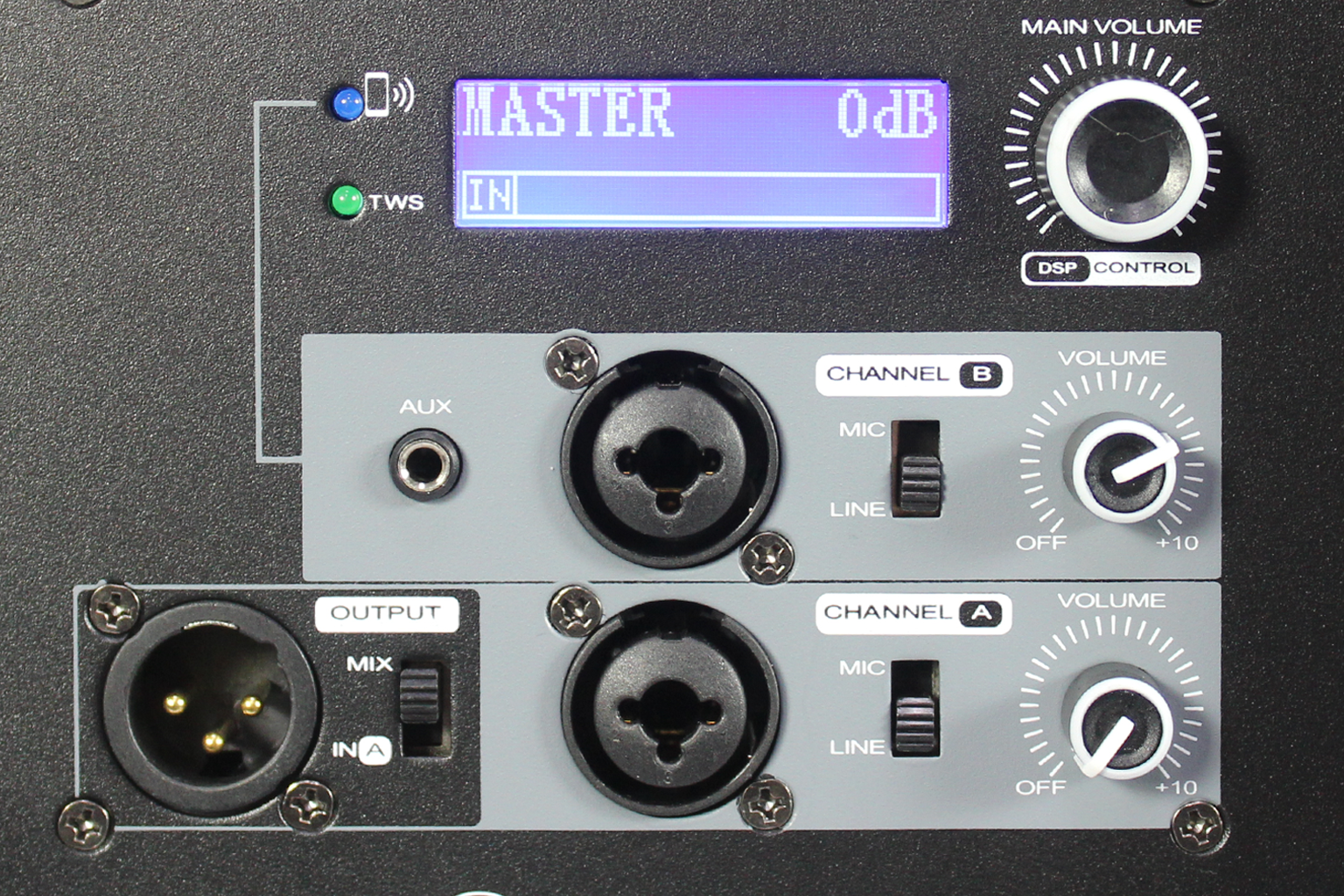

Advanced DSP Control & Flexible Connectivity
The LCD and main volume/DSP control provide direct access to the loudspeaker’s settings. Select Music, Flat, Speech, or Club mode; adjust Treble, Mid, and Bass; choose an 80, 100, 120, or 150 Hz Sub LF Cutoff; and apply delay alignment as needed. The interface also manages SBT and TWS functions, LCD dimming, display brightness, and contrast.
Two combo XLR/¼-inch inputs accept microphone- or line-level sources, with independent channel level controls. A 3.5 mm auxiliary input supports additional playback devices, and the balanced XLR output can send Channel A or the full mix to another loudspeaker or audio device.

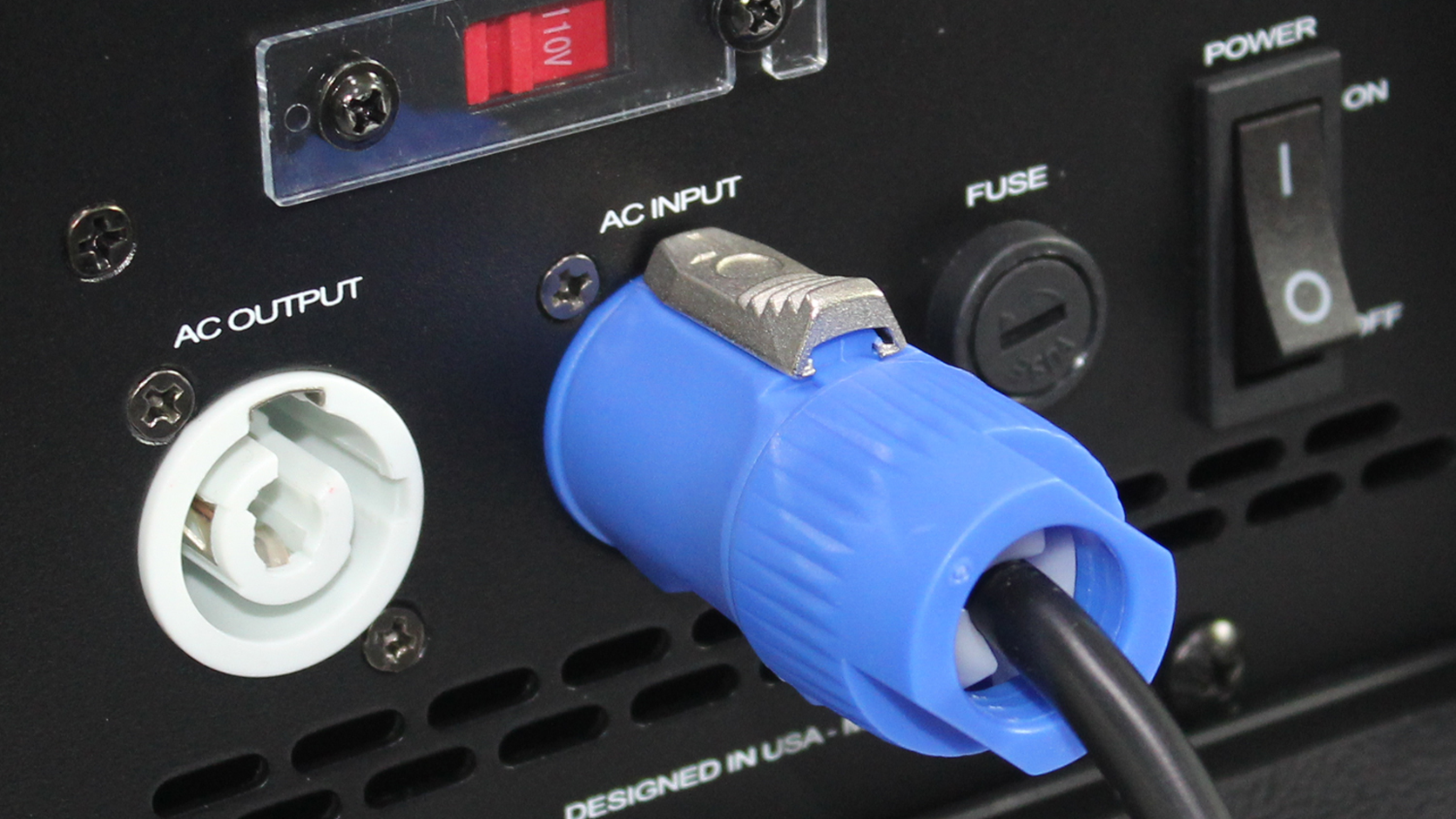

Secure Locking Power Connection
Keep your system powered securely with a locking PowerCON-type power connection, designed to reduce the risk of accidental disconnection. This professional-grade feature is ideal for both portable setups and the demands of touring and live events.
3 Year Warranty
Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.
Specifications
Acoustic Specifications
- System Type:
- 2-way, Full Range, Active, Bi-amplified
- Frequency Response:
- 50Hz–20kHz
- Max SPL:
- 124 dB @ 1 meter
- Nominal Coverage:
- 65° horizontal, 70° vertical
- System Impedance:
- 4 Ohm
Transducers
- Low-Frequency Driver:
- 1 × 12" Woofer with 2" VC
- High-Frequency Driver:
- 1 × 1" Exit Compression Driver with 1.35" VC
Power Section
- Total Amplifier Power:
- 1000W peak / 250W RMS
- Amplifier Type:
- Class-D, Bi-amp
- Cooling:
- Internal Convection + Fan
Input / Output Section
- Input Channels:
- 2 2 × XLR and ¼-inch combo jacks with MIC / Line switch
- AUX Input:
- 1 × 3.5mm jack
- Output Connectors:
- Balanced XLR output with CH A/MIX selector
- Wireless Audio:
- sBT Wireless with TWS (Truess Wireless Stereo)
Processor & Controls
- User Interface:
- LCD display with main volume/DSP rotary control
- DSP Presets:
- Music / Flat / Speech / Club
- User EQ:
- Treble, Mid, and Bass
- Sub LF Cutoff:
- 80, 100, 120, or 150 Hz
- Alignment:
- Adjustable delay
- Wireless Controls:
- sBT and TWS configuration
- Display Controls:
- LCD dimming, brightness, and contrast
- Input Controls:
- Independent CH A level control Shared CH B / sBT / AUX level control Main (Master) level control
- Protection:
- DSP Digital Limiting
- LED Indicators:
- sBT Wireless Indicator TWS (True Wireless Stereo Indicator)
Power Requirements
- Operational Voltage:
- 100V to 240V AC, 50/60 Hz Switchable
- Power Connection:
- Locking powerCON-type AC Input Locking powerCON-type AC Output PowerCON-to-Edison AC cable included
Construction
- Cabinet Material:
- ABS
- Color:
- Black
- Grille:
- Steel with Anti-Corrosion Coating & Acoustic Cloth Backing
- Rigging:
- 35mm Pole Mount Socket M8 Rigging Points
- Handles:
- Side handles
- Feet:
- Nonslip rubber feet
Dimensions
- Dimensions (H × W × D):
- 15.5 × 23.5 × 13 in (394 × 597 × 330 mm)
- Weight:
- 42 lb (19 kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration.
