Power Amplifiers
X9.2
2-Channel Class-D Power Amplifier, 900W per Channel @ 4Ω
- 2 × 900W at 4Ω
- Stable 2Ω Operation
- Stereo, Mono, and Bridge Operating Modes
- Selectable 0.775V, 1.0V, and 1.44V Input Sensitivity
- Universal Switch-Mode Power Supply
- Switchable 75Hz low-cut filter and ground lift
- Comprehensive Protection Circuitry
Overview
The Sound Barrier X9.2 is a compact two-channel Class-D power amplifier designed for permanent installations, houses of worship, conference facilities, entertainment venues, distributed audio systems, and smaller mobile or rental applications. It delivers 2 × 900W at 4Ω and 2 × 500W at 8Ω, providing dependable power for full-range loudspeakers, stage monitors, and compact subwoofer systems.
Stereo, mono, and bridge operating modes allow the X9.2 to accommodate a variety of system configurations, including up to 1800W bridged at 8Ω. Selectable input sensitivity, a switchable 75Hz low-cut filter, and ground-lift control provide additional flexibility when integrating the amplifier with mixers, processors, and installed audio systems.
A universal 100–240 VAC power supply with active Power Factor Correction supports operation across a wide range of electrical environments. Its lightweight 1U metal chassis, internal heat sinks, dual variable-speed cooling fans, comprehensive protection circuitry, and clear front-panel status indicators make the X9.2 a compact and cost-effective amplifier for professional applications.
KEY FEATURES
- 2 × 900W at 4Ω
- Stable 2Ω Operation
- Stereo, Mono, and Bridge Operating Modes
- Selectable 0.775V, 1.0V, and 1.44V Input Sensitivity
- Universal Switch-Mode Power Supply
- Switchable 75Hz low-cut filter and ground lift
- Comprehensive Protection Circuitry
Universal Power with Active PFC
The DA Series features a universal switch-mode power supply designed to operate from 100–240 VAC ±10%, 50/60Hz, allowing reliable use across a wide range of global power systems. Active Power Factor Correction (PFC) optimizes current draw, improves power efficiency, and helps maintain consistent amplifier performance under demanding operating conditions.
3 Year Warranty
Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.
Specifications
Output Power
- 2Ω :
- 1100W
- 4Ω :
- 2 x 900W
- 8Ω :
- 2 x 500W
- 8Ω Bridge:
- 1800W
Amplifier Specifications
- Output Channels:
- 2
- Topology:
- Class D
- Operating Modes:
- Stereo / Mono / Bridge
- Minimum Load:
- 4Ω per channel / 8Ω bridged
- Frequency Response:
- 20Hz–20kHz, +0/−2dB at 10% rated power into 8Ω
- THD+N:
- Typical 0.01%
- Signal-to Noise Ratio:
- ≥103dB
- Damping Factor:
- Greater than 400 at 8Ω, 20Hz–200Hz
- Crosstalk:
- ≥80dB, 20Hz–1kHz
- Input Impedance:
- 20kΩ balanced
- Input Sensitivity:
- 0.775V, 1.0V, or 1.44V selectable

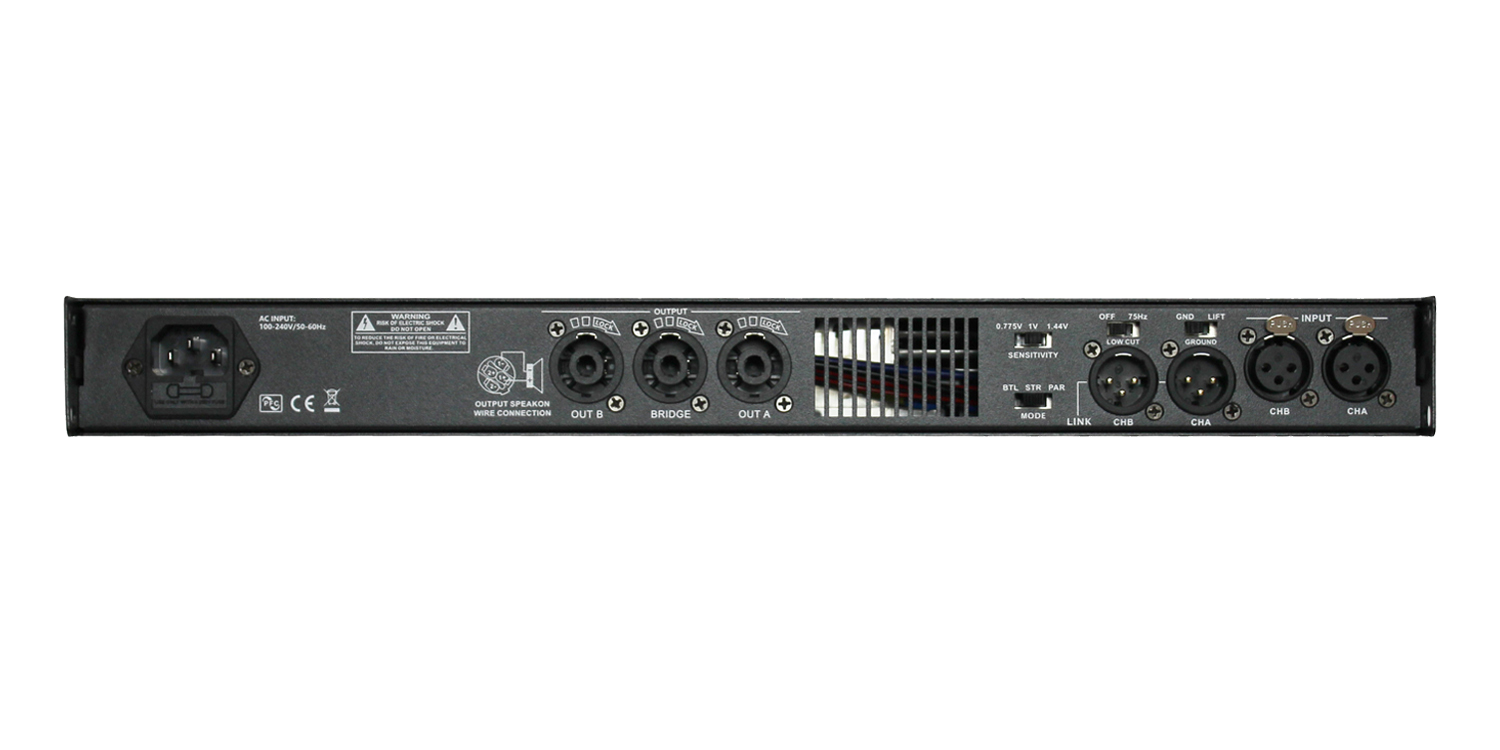

Input / Output Section
- Input Connectors:
- 2 x balanced XLR inputs
- Link Output Connectors:
- 2 × balanced XLR
- Channel Output Connectors:
- 2 × speakON-type locking connectors
- Bridge Output Connectors:
- 1 × speakON-type locking connectors
Controls
- Front Panel:
- 2 × channel-level controls and power switch
- Rear Panel:
- Input sensitivity, operating mode, 75Hz low-cut filter, and ground lift
Power Requirements
- Operating Voltage:
- 100–240 VAC ±10%, 50/60Hz
- Power Supply:
- Universal switch-mode power supply with active PFC
Cooling & Protection
- Cooling:
- Internal heat sinks and two variable-speed fans
- Protection Circuits:
- Short-Circuit Protection, Power-Supply Overload Protection, Over-Temperature Protection, DC Protection, Soft Start,
- Status Indicators:
- Signal, power, clip, and protection
Construction
- Rack Space:
- 1U
- Dimensions (W x H x D):
- 19 × 1.8 × 10.2 inches (483 × 45 × 259mm)
- Net Weight:
- 10.1 lb (4.6kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration
