Power Amplifiers
DA7.2
2-Channel Class-D Power Amplifier, 3500W per Channel @ 4Ω
- 2 × 3500W at 4Ω
- Stable 2Ω Operation
- Up to 1 × 9000W at 4Ω in bridge mode
- Stereo, Mono, and Bridge Operating Modes
- Selectable 41dB, 38dB, 35dB, and 32dB gain
- Universal Switch-Mode Power Supply
- Temperature-controlled Cooling
- Comprehensive Protection Circuitry
Overview
The Sound Barrier DA7.2 is a high-output two-channel Class-D amplifier designed for professional loudspeaker systems that need strong performance in a compact rack format. It delivers 2 × 3500W at 4Ω and 2 × 2200W at 8Ω, making it a versatile choice for subwoofers, full-range loudspeakers, stage monitors, and sound-reinforcement systems in touring productions, nightclubs, live venues, houses of worship, and fixed installations.
Its compact 1U architecture supports stereo, mono, and bridge operation, with selectable 41dB, 38dB, 35dB, and 32dB gain settings. The amplifier supports minimum loads of 2Ω per channel in stereo or mono operation and 4Ω in bridge mode, with burst output up to 2 × 5000W at 2Ω or 1 × 9000W bridged at 4Ω.
A universal switch-mode power supply with active Power Factor Correction provides efficient, stable performance across a worldwide AC input range. Front-to-rear temperature-controlled cooling and protection against undervoltage, DC output, over-temperature, overload, and short circuit help deliver dependable performance in demanding professional applications.
KEY FEATURES
- 2 × 3500W at 4Ω
- Stable 2Ω Operation
- Up to 1 × 9000W at 4Ω in bridge mode
- Stereo, Mono, and Bridge Operating Modes
- Selectable 41dB, 38dB, 35dB, and 32dB gain
- Universal Switch-Mode Power Supply
- Temperature-controlled Cooling
- Comprehensive Protection Circuitry
Universal Power with Active PFC
The DA Series features a universal switch-mode power supply designed to operate from 100–240 VAC ±10%, 50/60Hz, allowing reliable use across a wide range of global power systems. Active Power Factor Correction (PFC) optimizes current draw, improves power efficiency, and helps maintain consistent amplifier performance under demanding operating conditions.
3 Year Warranty
Includes a 1-year standard limited warranty, extended to 3 years total at no additional cost when the product is registered within 90 days of purchase. Proof of purchase is required. Statutory consumer rights are not affected.
Specifications
Output Power
- 2Ω Stereo:
- 2 × 5000W
- 4Ω Stereo:
- 2 × 3500W
- 8Ω Stereo:
- 2 × 2200W
- 4Ω Bridge:
- 1 × 9000W
- 8Ω Bridge:
- 1 × 7000W
- 16Ω Bridge:
- 1 × 4500W
Amplifier Specifications
- Output Channels:
- 2
- Topology:
- Class D
- Efficiency:
- Greater than 80%
- Operating Modes:
- Stereo / Mono / Bridge
- Minimum Load Stereo / Mono:
- 2Ω
- Minimum Load Bridge:
- 4Ω
- Frequency Response:
- 20Hz–20kHz, +0 / -0.5dB
- THD+N:
- Typical 0.01%
- Damping Factor:
- Typical 5000 at 8Ω, 20Hz–200Hz
- Crosstalk:
- ≥90dB, 20Hz–1kHz below rated power
- Input Impedance:
- 20kΩ balanced / 10kΩ unbalanced
- Input Sensitivity:
- 1.13V / 1.59V / 2.25V / 3.18V RMS selectable
- Selectable Gain:
- 41dB / 38dB / 35dB / 32dB
- Output RMS Voltage:
- 132.5V RMS

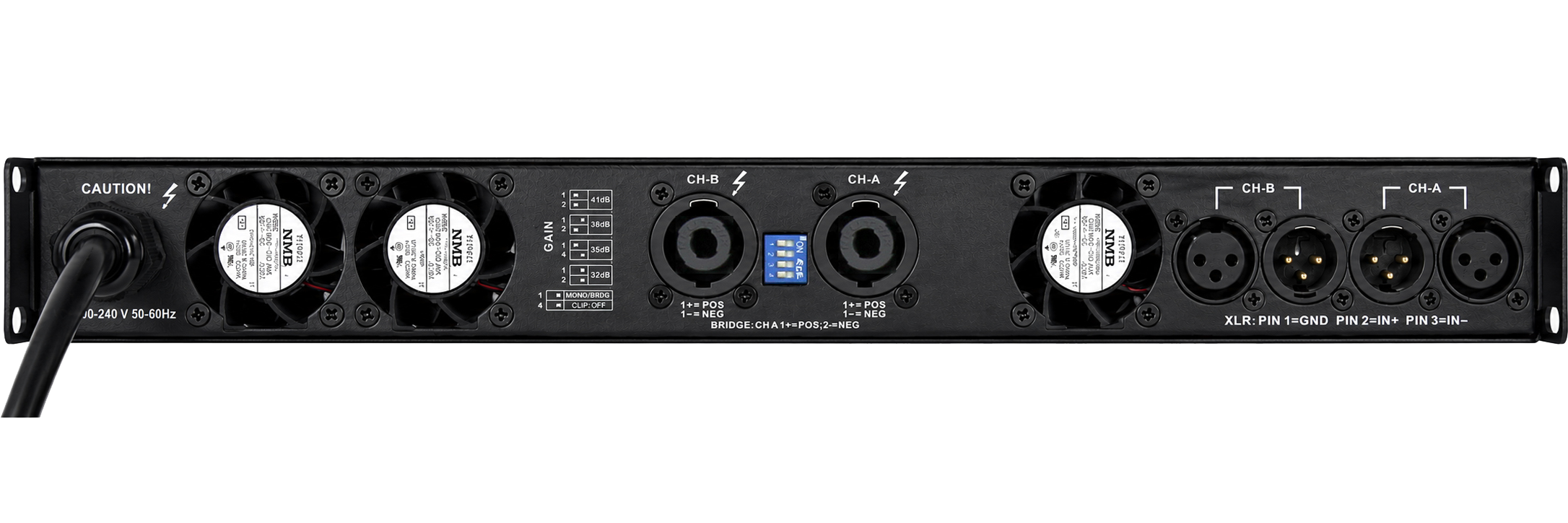

Input / Output Section
- Input Connectors:
- 2 x balanced XLRF inputs
- Link Outputs:
- 2 x parallel XLRM inputs
- Output Connectors:
- 2 x speakON-type NL4
Power Requirements
- Nominal AC Input:
- 100–240 VAC ±10%, 50/60Hz
- Power Supply:
- Universal switch-mode power supply with active PFC
- Standby Power:
- 110W
Cooling & Protection
- Cooling:
- Front-to-rear airflow with temperature-controlled fans
- Protection Circuits:
- Undervoltage, DC, over-temperature, overload, and short circuit
- Limiter Functions:
- Undervoltage, DC, over-temperature, overload, and short circuit
Construction
- Rack Space:
- 1U
- Dimensions (W x H x D):
- 19. x 1.8 x 14.6 inches (483 x 45 x 370mm)
- Net Weight:
- 20.9 lb (9.5 kg)
Warranty
- 3-Year Warranty:
- 3-Year Warranty with Product Registration
